3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.
High-tack, hand tearable double coated film tape with a pressure sensitive adhesive on each side of the carrier. The medium-firm synthetic rubber adhesive features very high adhesion to a variety of surfaces, good shear holding power and offers one-piece removal from most substrates. Application idea: core starting on metal cores.
| Adhesive Type | Synthetic Rubber |
| Back Side Adhesive Thickness (Imperial) | 3 mil |
| Back Side Adhesive Thickness (Metric) | 0.076 mm, 0.08 mm |
| Back Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Backing (Carrier) Material | HDPE |
| Backing (Carrier) Thickness (Imperial) | 0.178 mil |
| Backing (Carrier) Thickness (Metric) | 0.076 mm |
| Brands | 3M™ |
| Carrier Material | High Density Polyethylene HDPE |
| Carrier Thickness | 0.17847 mil |
| Carrier Thickness (Metric) | 0.08 mm |
| Case Quantity | 24.0 Bags per Case, 36.0 Bags per Case, 48.0 Bags per Case, 72.0 Bags per Case |
| Core Size (Imperial) | 3 in |
| Core Size (Metric) | 76.2 mm |
| Face Side Adhesive Thickness (Imperial) | 3 mil |
| Face Side Adhesive Thickness (Metric) | 0.076 mm, 0.08 mm |
| Face Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Indoor/Outdoor | Both |
| Industries | General Industrial, Converter Solutions, MRO, Packaging, Metalworking, Point of Purchase, Print, Craft, Food and Beverage, Signage, Construction |
| Master Size Length (Imperial) | 144 Linear Yard |
| Master Size Length (Metric) | 131.7 m |
| Master Size Width (Imperial) | 27 in |
| Master Size Width (Metric) | 69 cm |
| Maximum Operating Temperature (Celsius) | 49 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 120 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | 62# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3.7 mil |
| Primary Liner Thickness (Metric) | 0.09 mm |
| Product Color | White |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Specifications Met | FDA 21 CFR |
| Total Tape Thickness without Liner (Imperial) | 9 mil |
| Total Tape Thickness without Liner (Metric) | 0.228 mm |
| Units per Case | 12.0, 24.0, 36.0, 48.0, 72.0 |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Overall Thickness (Imperial) | 9 mil |
| Overall Width (Imperial) | 0.5 in, 0.75 in, 1 in, 1.5 in, 2 in, 3 in, 27 in |
| Overall Width (Metric) | 12.7 mm, 19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm, 685.8 mm |
Other

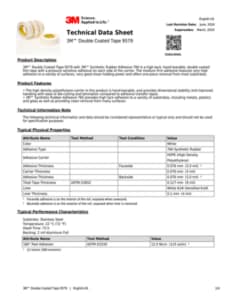

(PDF, 92KB)
