3M™ Double Coated Tape 9828PC

Options available
| Select product options for IDs.

Very thin alternative to glues for foam lamination and gasket attachment

Medium-firm acrylic adhesive delivers good adhesion to many plastics and foams

.5 mil clear polyester (PET) film carrier adds dimensional stability and improved handling

Details

Highlights

Very thin alternative to glues for foam lamination and gasket attachment
Medium-firm acrylic adhesive delivers good adhesion to many plastics and foams
.5 mil clear polyester (PET) film carrier adds dimensional stability and improved handling
74# polycoated kraft liner helps protect against moisture during storage
Adhesive on both sides supplies high initial adhesion and high tack to high surface energy (HSE) substrates

3M™ Double Coated Tape 9828PC features a thin film carrier and a medium-firm acrylic adhesive that works well on many plastics and foams. 3M™ Adhesive 340 provides good initial adhesion and holding power to a wide variety of materials including HSE plastics. The .5 mil polyester carrier adds dimensional stability and improved handling during slitting and die cutting operations.

Bonds a Range of Materials, Including HSE Plastics and Foams
A thin, consistent alternative to glue, 3M™ Double Coated Tape 9828PC can be used for foam, fabric and gasket attachment. This tape offers long-term temperature performance up to 120°F (49°C). A clear .5 mil polyester film carrier between adhesive layers adds dimensional stability to foams and other substrates and provides easier handling during slitting and die-cutting. 3M™ Adhesive 340 is applied to the liner side of the film at 1.5 mils and at 2.0 mils on the face side for effective wet-out. 74# polycoated kraft liner helps protect against moisture during storage.

Recommended Applications

General purpose foam lamination
General purpose lamination for fabricated parts
Gasket attachment

About 3M™ Adhesive 340
Double coated film tapes with 3M™ Adhesive 340 are ideal for applications where a combination of high initial adhesion and good shear strength for a wide variety of materials, including many plastics and foams, is required.

Hands putting “Employees Only” sign on a door using double coated tape

3M™ Double Coated Tapes with 3M™ Adhesive 340 provide a combination of high initial adhesion and good shear holding power

What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.

Double coated tapes offer a multitude of advantages over mechanical fasteners or liquid glues, including an even regular bond without gaps, reduced risk of corrosion, fast application, more flexible product design and improved appearance.

Compare More 3M Double Coated Tapes for Labeling and Graphics Solutions (PDF, 26.89 Mb)

Bringing Better Ideas to the Surface through Science
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

Find More 3M Industrial Adhesives and Tapes (PDF, 12.28 Mb)

Typical properties

Details

Adhesive Type	Adhesive 340
Back Side Adhesive Thickness (Imperial)	1.5 mil
Back Side Adhesive Thickness (Metric)	0.038 mm
Back Side Adhesive Type	High Tack Acrylic Adhesive 340
Backing (Carrier) Material	Polyester Film
Backing (Carrier) Thickness (Imperial)	0.5 mil
Backing (Carrier) Thickness (Metric)	0.013 mm
Brands	3M™
Carrier Material	Polyester Film
Carrier Thickness	0.5 mil
Carrier Thickness (Metric)	0.013 mm
Core Size (Imperial)	3 in
Core Size (Metric)	76.2 mm
Face Side Adhesive Thickness (Imperial)	2 mil
Face Side Adhesive Thickness (Metric)	0.051 mm
Face Side Adhesive Type	High Tack Acrylic Adhesive 340
Industries	Automotive, General Industrial, Packaging, Medical, Print, Point of Purchase, Converter Solutions, Paper, Retail
Master Size Length (Imperial)	180 Linear Yard
Master Size Length (Metric)	164.6 m
Master Size Width (Imperial)	54 in
Master Size Width (Metric)	137 cm
Maximum Operating Temperature (Fahrenheit)	120 ℉
Minimum Operating Temperature (Fahrenheit)	-40 ℉
Primary Liner	74# Polycoated Kraft Paper (PCK)
Primary Liner Color	White
Primary Liner Thickness (Imperial)	5.6 mil
Primary Liner Thickness (Metric)	0.14 mm
Product Color	Transparent
Product Form	Roll
Smallest Saleable Unit	Roll
Total Tape Thickness without Liner (Imperial)	3.3 mil
Total Tape Thickness without Liner (Metric)	0.084 mm
Units per Case	1.0

Dimensions and Classifications

Overall Length (Imperial)	250 yd
Overall Length (Metric)	228.6 m
Overall Thickness (Imperial)	3.3 mil
Overall Width (Imperial)	54 in
Overall Width (Metric)	137 cm

Resources

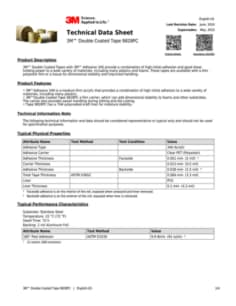

3M™ Double Coated Tape 9828PC
