3M™ Double Coated Tape 9828 features a thin film carrier and a medium-firm acrylic adhesive that works well on many plastics and foams. 3M™ Adhesive 340 provides good initial adhesion and holding power to a wide variety of materials including HSE plastics. The 0.5 mil polyester carrier adds dimensional stability and improved handling during slitting and die cutting operations.
| Adhesive Type | Adhesive 340, Acrylic |
| Automotive OEM Specification | Ford WSS-M11P62 |
| Back Side Adhesive Thickness (Imperial) | 1.5 mil |
| Back Side Adhesive Thickness (Metric) | 0.038 mm, 0.04 mm |
| Back Side Adhesive Type | High Tack Acrylic Adhesive 340 |
| Backing (Carrier) Material | Polyester Film, Polyester |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm |
| Brands | 3M™ |
| Carrier Material | Polyester Film |
| Carrier Thickness | 0.5 mil |
| Carrier Thickness (Metric) | 0.013 mm |
| Core Size (Imperial) | 3 in |
| Core Size (Metric) | 76.2 mm |
| Face Side Adhesive Thickness (Imperial) | 2 mil |
| Face Side Adhesive Thickness (Metric) | 0.05 mm, 0.051 mm |
| Face Side Adhesive Type | High Tack Acrylic Adhesive 340 |
| Indoor/Outdoor | Both |
| Industries | Converter Solutions, Paper, Point of Purchase, Automotive, General Industrial, Packaging, Medical, Print, Retail |
| Master Size Length (Imperial) | 180 Linear Yard |
| Master Size Length (Metric) | 164.6 m |
| Master Size Width (Imperial) | 54 in |
| Master Size Width (Metric) | 137 cm |
| Maximum Operating Temperature (Celsius) | 49 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 120 ℉ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | 55# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3.2 mil |
| Primary Liner Thickness (Metric) | 0.08 mm |
| Product Color | Transparent |
| Product Form | Roll |
| Smallest Saleable Unit | Roll |
| Total Tape Thickness without Liner (Imperial) | 3.3 mil, 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.084 mm, 0.1 mm |
| Units per Case | 1.0, 24.0 |
| Overall Length (Imperial) | 60 yd, 250 yd |
| Overall Length (Metric) | 54.86 m, 228.6 m |
| Overall Thickness (Imperial) | 3.3 mil |
| Overall Width (Imperial) | 2 in, 54 in |
| Overall Width (Metric) | 50.8 cm, 137 mm |
Other

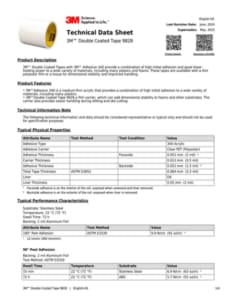

(PDF, 95KB)
