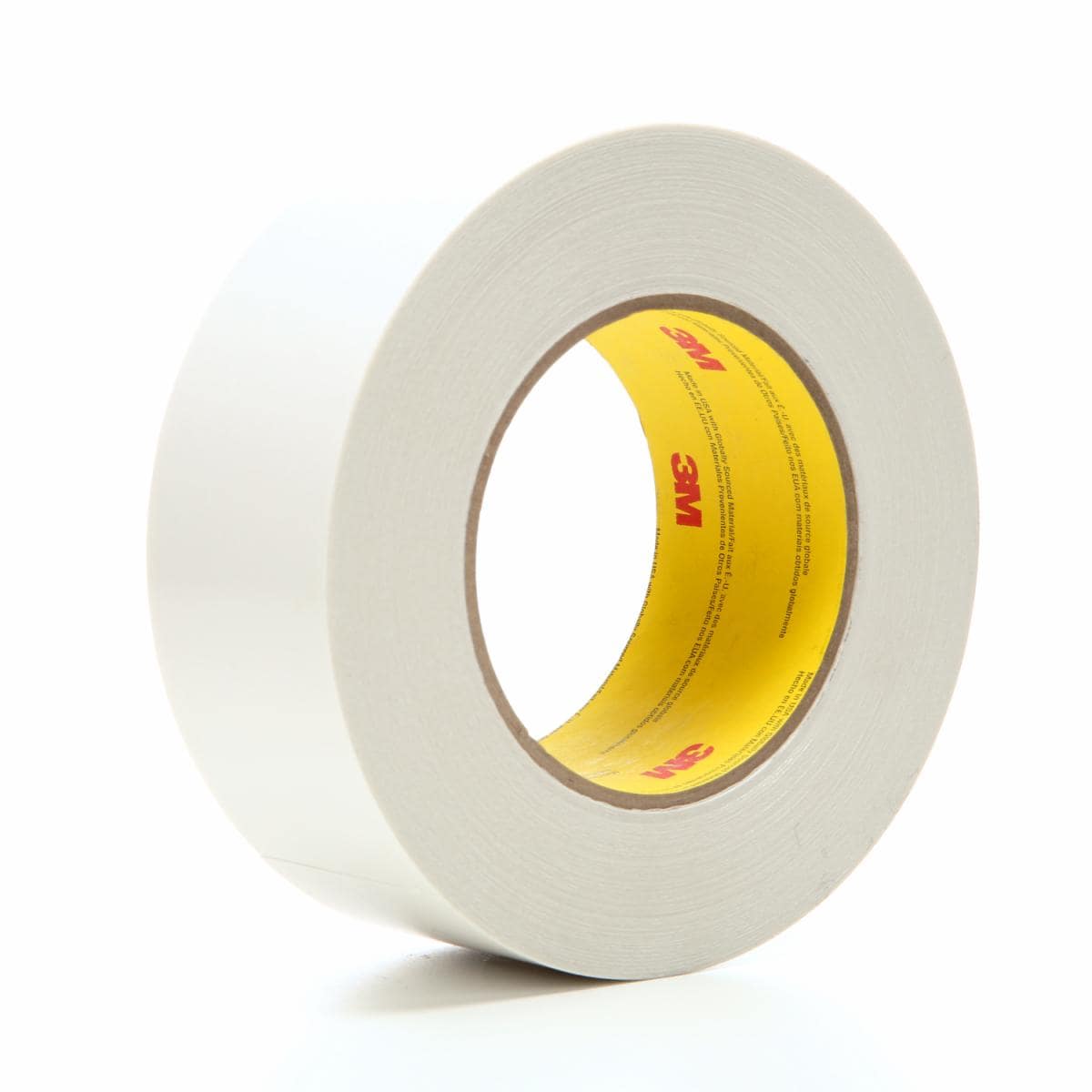

3M™ Double Coated Tape 9738
- | Select product options for IDs.
Details
Highlights
- Ideal performance in high speed splicing applications
- High tack acrylic adhesive performs well across broad temperature range
- Excellent peel, tack and shear strength to withstand rigorous splicing applications
- Versatile adhesion bonds well to kraft and coated papers, as well plastic
- Good moisture resistance to ensure performance in a variety of situations
- Available in red
3M™ Double Coated Tape 9738 Red is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.
High Performance Adhesion
Our 3M™ Double Coated Tape 9738 Red is a 4.3 mil double-sided tape mounted on a 55 lb. densified kraft paper liner. In addition, it has a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It offers excellent temperature performance in various applications. When it comes to longevity, this tape will perform well up to 300°F/149°C in the short term, and up to 260°F/127°C for days or weeks. Results may vary depending on machine and web tensions, line speeds, nature of paper surface and application pressure. It adheres well to kraft and coated papers, and is commonly used for high performance splicing on paper, films and other continuous web processes.
Recommended Applications
- High-speed flying splices
- Zero speed splices
- Core starting
- Splicing films, foils and corrugated paper
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby.
Typical properties
| Adhesive Type | Acrylic |
| Application | Zero-Speed and General Splicing |
| Backing (Carrier) Material | Tissue |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil, 1.3 mil |
| Backing (Carrier) Thickness (Metric) | 0.013 mm, 0.033 mm |
| Brands | 3M™ |
| Carrier Material | Tissue |
| Carrier Thickness | 0.5 mil |
| Carrier Thickness (Metric) | 0.013 mm |
| Face Side Adhesive Type | Acrylic |
| Industries | Appliance, General Industrial, Specialty Vehicle, Transportation, Medical, Automotive, Electronics |
| Maximum Operating Temperature (Fahrenheit) | 300 ℉ |
| Number of Adhesive Sides | Double-sided |
| Primary Liner | 55# Densified Kraft Paper (DK) |
| Primary Liner Color | White |
| Product Color | Transparent |
| Product Form | Roll |
| Tape Type | Double Coated |
| Total Tape Thickness without Liner (Imperial) | 4.3 mil |
| Total Tape Thickness without Liner (Metric) | 0.11 mm |
| Units per Case | 16.0, 24.0, 32.0, 48.0 |
| Overall Length (Imperial) | 60.15 yd |
| Overall Length (Metric) | 55 m |
| Overall Width (Imperial) | 0.95 in, 1.42 in, 1.9 in, 2.83 in |
| Overall Width (Metric) | 24 mm, 36 mm, 48 mm, 72 mm |
