3M™ Venture Tape™ Non-Adhesive ASJ Facing 1541
- | Select product options for IDs.
Details
Highlights
- Acts as an uncoated facing for all service jacket (ASJ) faced duct piping systems
- White kraft, scrim and foil laminate backing serves as a vapor seal
- Performs well over a wide temperature range
- Easy to install without special tools or application methods

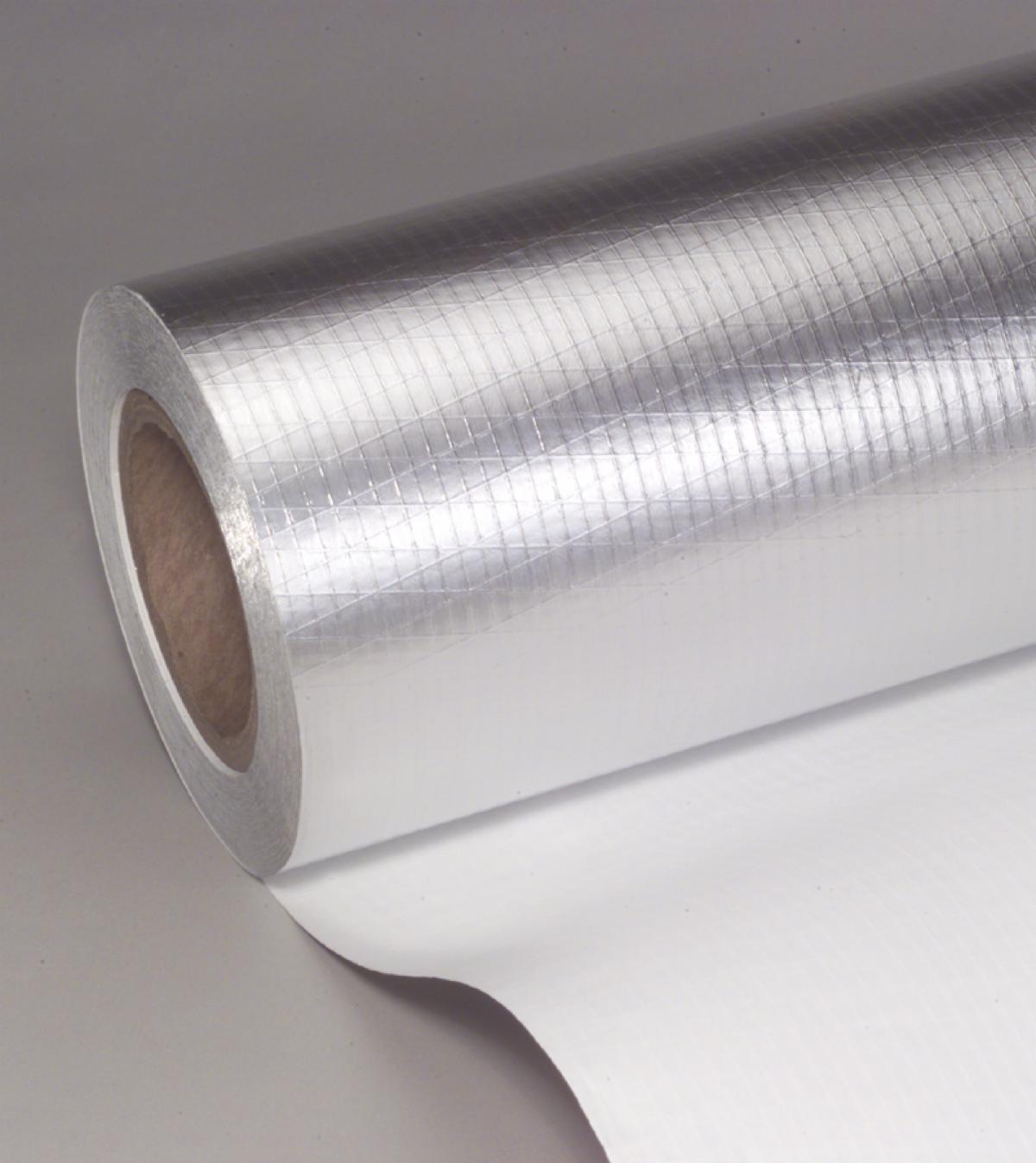

3M™ Venture Tape™ Non-Adhesive ASJ Facing 1541 is a 9 mil white kraft, scrim and foil laminated facing that acts as an uncoated, mold-resistant facing all service jacket (ASJ) faced duct piping systems. The facing applies easily and excels in demanding temperature conditions.
Performs Well over a Wide Temperature Range
3M™ Venture Tape™ Non-Adhesive ASJ Facing 1541 is a mold-resistant, tri-directional reinforced facing that excels in demanding temperature conditions. It is comprised of a kraft/scrim/foil laminated backing. The backing is flexible and conforms to irregular surfaces and curves. Meets ASTM C1136 Type I, II, III, IV and ASTM E84 10/30 FLAME/SMOKE.
Recommended Applications
- Uncoated facing all service jacket (ASJ) faced duct piping systems
- Vapor seal on ASJ faced ductboard and pipe insulation
Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Typical properties
| Adhesive Type | Non-adhesive |
| Backing (Carrier) Thickness (Imperial) | 6.5 mil |
| Backing (Carrier) Thickness (Metric) | 0.16 mm |
| Brands | Venture Tape™ |
| Elongation at Break | 6.0 % |
| Product Color | White |
| Shelf Life | 12 Month |
| Tensile Strength (Imperial) | 55.0 lb/in |
| Overall Length (Imperial) | 66.66 yd, 100 yd, 200 yd, 300 yd, 600 yd, 1000 yd |
| Overall Length (Metric) | 60.95 m, 91.44 m, 182.88 m, 274.32 m, 548.64 m, 914.4 m |
| Overall Width (Imperial) | 17.75 in, 23 in, 23.5 in, 26.25 in, 35.5 in, 48 in |
| Overall Width (Metric) | 23 mm, 48 mm, 450.85 mm, 596.9 mm, 666.75 mm, 901.7 mm |
