3M™ Flexomount™ Plate Mounting Tape 412DL
- | Select product options for IDs.
Details
Highlights
- 20 mil, gray double coated vinyl tape
- 0.020 inch (0.51 mm) gray, double coated tape has a soft rubber adhesive on both sides of a vinyl carrier
- Double Linered version
- Flexomount tapes are used to mount flexographic print plates when printing solid and line work
- Adhesives remove cleanly from the print plate and the print cylinder
- Flexographic Printing, Flexographic Printers
- Flexographic plate mounting sticky back tape

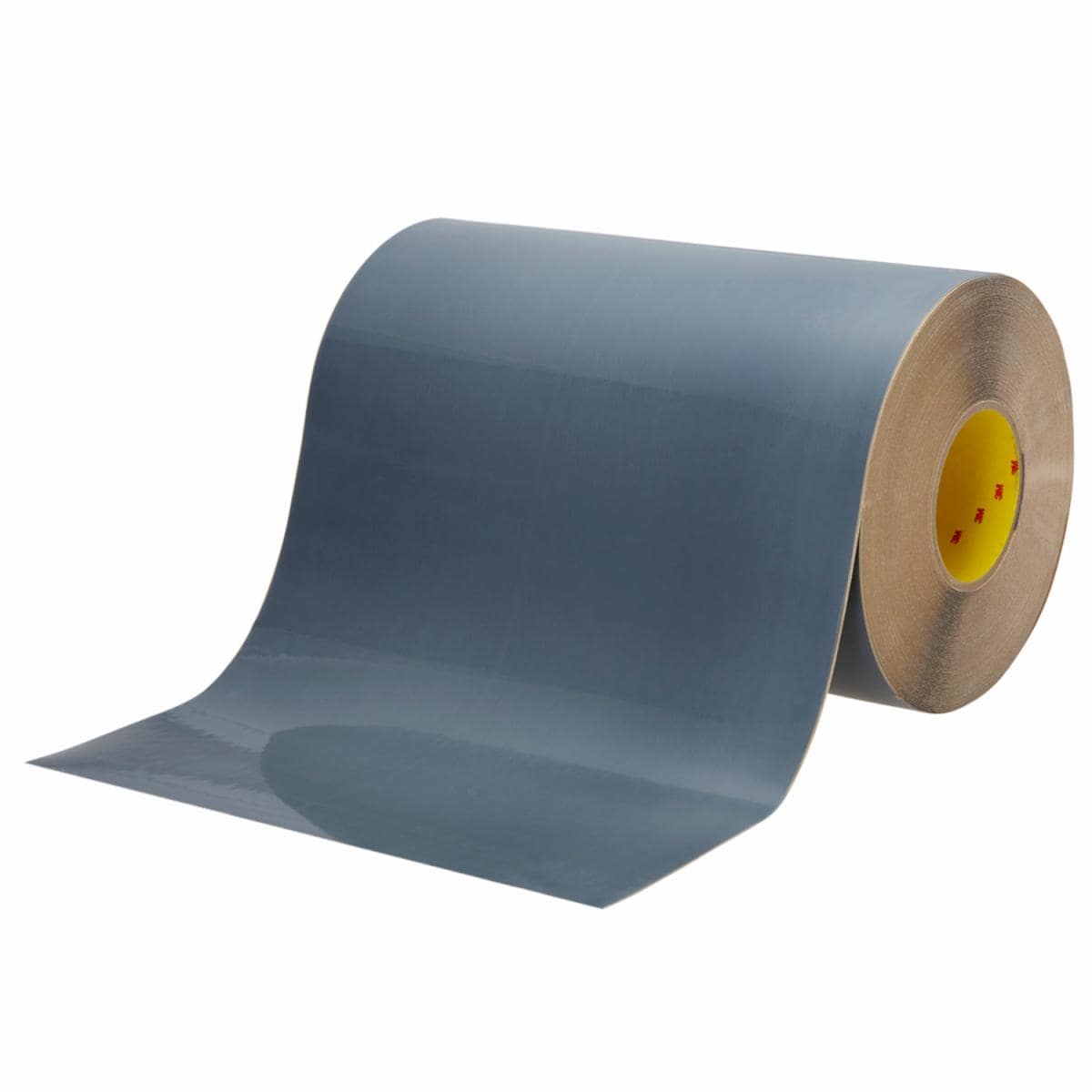

This 0.020 inch (0.51 mm) gray, double coated tape has a soft rubber adhesive on both sides of a vinyl carrier. This is the double linered version.
Gray double coated tape with a soft rubber adhesive on each side of a vinyl carrier
Recommended Applications
- Mounting photopolymer print plates to flexographic printing cylinders or sleeve systems
- Mounting rubber printing plates to flexographic printing cylinders or sleeves
Designed for mounting photopolymer and rubber printing plates to flexographic printing cylinders or sleeve systems
For decades, our products have been at work in paper mills and printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done. From paper web splicing to plate mounting and packaging the finished job, you can rely on us for solutions and service throughout your operation.
Typical properties
| Adhesive Type | Rubber |
| Air Release | No |
| Application | Flexographic Plate Mounting |
| Application Thickness (Imperial) | 20.0 mil |
| Application Thickness (Metric) | 0.5 mm |
| Backing Material | Solid Vinyl |
| Backing Thickness (Metric) | 0.5 mm |
| Brands | Flexomount™ |
| Composite Sleeves | Yes |
| Industries | |
| Primary Liner | Polycoated Kraft Paper |
| Primary Liner Thickness (Imperial) | 4 mil |
| Primary Liner Thickness (Metric) | 0.1 mm |
| Print Quality | Solid Printing |
| Print Quality (Series) | 400 Series |
| Product Color | Gray |
| Product Form | Roll |
| Secondary Liner | Polyethylene |
| Secondary Liner Thickness (Imperial) | 4 mil |
| Secondary Liner Thickness (Metric) | 0.1 mm |
| Total Tape Thickness without Liner (Imperial) | 20 mil |
| Total Tape Thickness without Liner (Metric) | 0.5 mm, 0.51 mm |
| Units per Case | 1.0 |
| Urethane Sleeves | Yes |
| Warranty Period | 1 Year from Date of Manufacture |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 32.91 m |
| Overall Thickness (Imperial) | 20 mil |
| Overall Width (Imperial) | 18 in, 54 in |
| Overall Width (Metric) | 457.2 mm, 1371.6 mm |
Resources

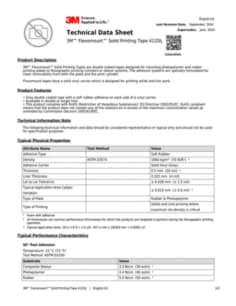

3M™ Flexomount™ Solid Printing Tape 412DLData Sheets
(PDF, 89KB)
