3M™ Elite Orbital Sander
- | Select product options for IDs.
Details
Highlights
- Ideal for flat surface finishing and sealer sanding with access to tight corners
- Precision-balanced steel workings and a powerful motor provide high performance with less vibration
- Extended curved wrist support, 3M™ Gripping Material, and recessed lever provide maximum comfort and control during prolonged use
- Aluminum body and durable composite cover reduce cracked housings and downtime
3M™ Elite Orbital Sanders deliver professional performance for flat finishing and sealer sanding operations, hour after hour in high-production industrial environments. Options available in non-vacuum, central vacuum and self-generated vacuum models.
Premier comfort combined with long-lasting performance
High Performance, Superior Ergonomics
Designed with the operator in mind, 3M™ Elite Orbital Sanders are loaded with ergonomic features that decrease work strain and improve productivity.
Wrist and hand support:
- Extended curved wrist rest reduces stress on hand and wrist and provides additional leverage
- Recessed lever platform eliminates pinch and pressure points on the operator's palm
- Three grip sizes enable operator preference. The grip diameter on the tool is 2-3/4" with two additional grip sizes available (diameters of 2-1/2" and 3" sold separately)
- The rubber grip absorbs and reduces vibration and features 3M™ Gripping Material for a stronger grip and more control with less effort
- Durable composite cover extends to the base to absorb vibration and keeps tools in service by preventing cracked housings
- Internal muffler protects operator hearing and will not break off
- Convenient thumb-controlled speed dial reduces inadvertent speed changes
Typical properties
| Airflow Rate (metric) | 481 lpm |
| Application | Orbital Sanding, Sanding, Finishing |
| Brands | 3M™ |
| Industries | Woodworking, Composite, Aerospace, Metalworking, AOEM, General Industrial, MRO, Paint Preparation, Transportation & Heavy Equipment |
| Maximum Speed | 10000 rpm, 12000 rpm |
| Motor HP (W) | .28 (209) |
| Net Weight (Imperial) | 2.53 lb |
| Net Weight (Metric) | 1.15 kg |
| Orbit Diameter | 0.12 in, 0.13 in |
| Orbit Diameter (Metric) | 3 mm, 3.2 mm |
| Power Source | Pneumatic |
| Product Type | Random Orbital Sander, Orbital Sander |
| Sub Applications | Defect Removal, Finishing, Orbital Sanding |
| Sub Industries | Furniture, Primary Wood and Panel Processing, Cabinetry, Custom Woodworking and Millwork |
| Vacuum Support | Yes, No |
| Vacuum Type | Central Vacuum, Self-generated Vacuum, Non-vacuum |
| Overall Height (Imperial) | 4.09 in, 5.25 in |
| Overall Height (Metric) | 13.34 mm, 104 cm |
| Overall Length (Imperial) | 10.2 in, 12.69 in |
| Overall Length (Metric) | 32.23 mm, 261 cm |
| Overall Width (Imperial) | 6.81 in |
| Overall Width (Metric) | 17.3 cm |
Resources

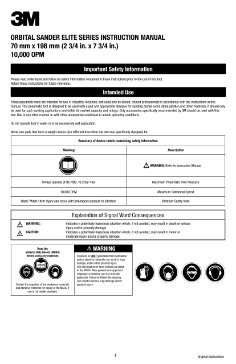

3M™ OS - Elite Series Instruction Manual, 2-3/4 in x 7-3/4 in
3M™ OS Elite Series Instr. Manual-2-3/4"x7-3/4" 10,000OPMOther
(PDF, 524KB)

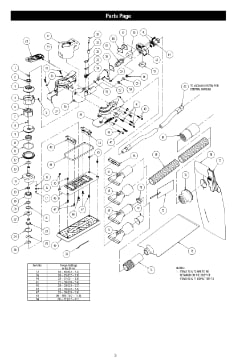

3M™ OS Elite Series-2-3/4"x7-3/4", 10,000OPM, PartsListSchmOther
(PDF, 254KB)
