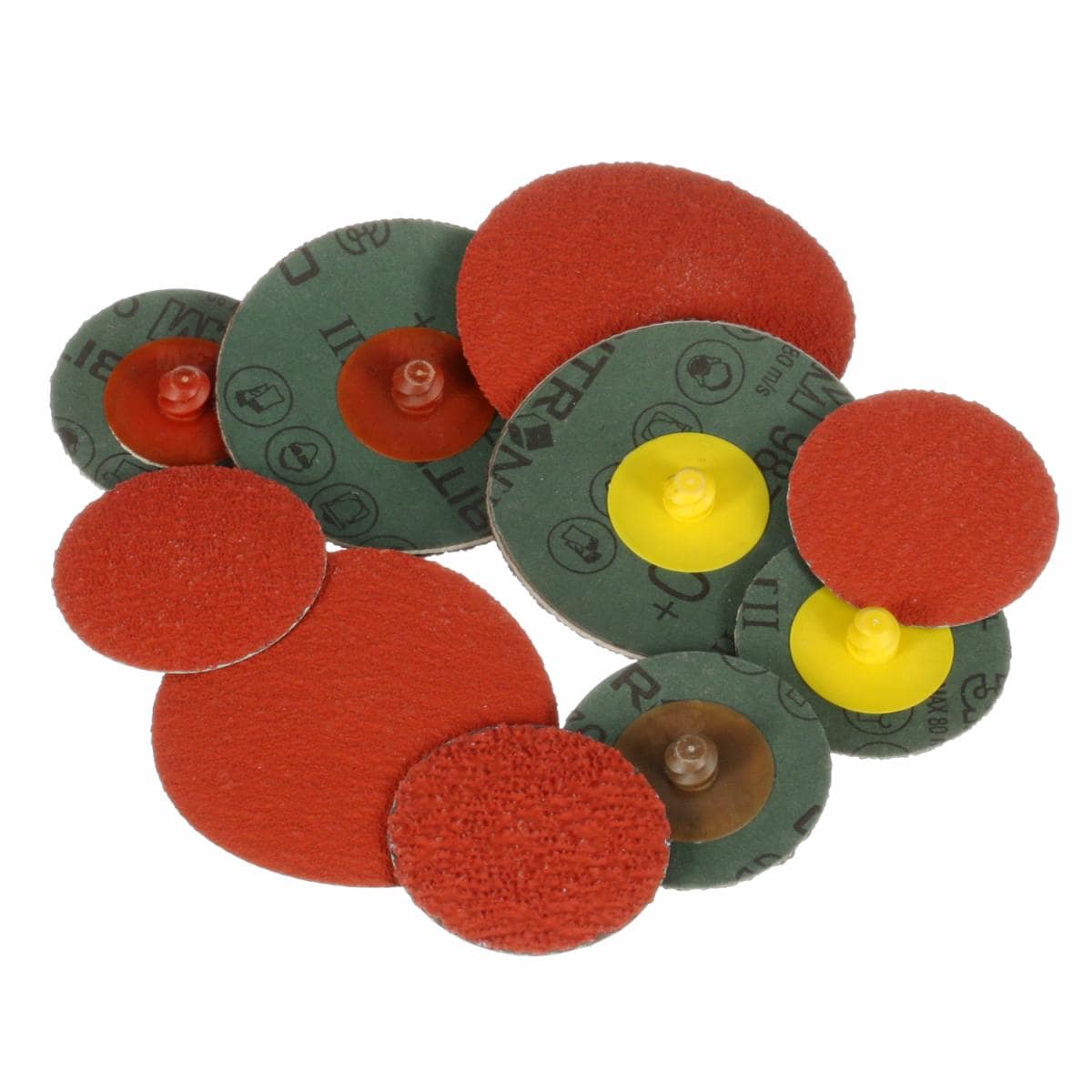

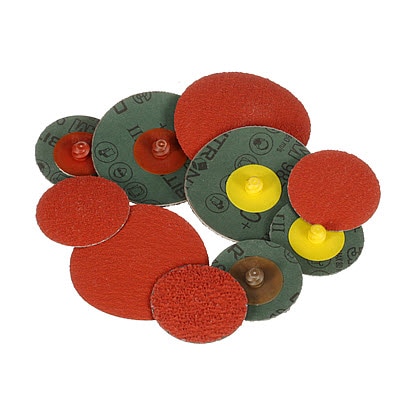

3M™ Cubitron™ II Roloc™ Fibre Disc 987C

Options available
| Select product options for IDs.

3M Precision Shaped Grain (PSG) maintains super-sharp points that cut exceptionally fast with less pressure

PSG runs cooler, reducing metal discoloration/oxidation and the chance of heat related stress cracks

Disc life is significantly longer, completing more parts per disc and requiring fewer disc changes

Frequently viewed resources

Safety Data Sheet (PDF)

Overall Diameter (Imperial)

Overall Diameter (Metric)

Attachment Type

Grit

Select product options

Details

Highlights

3M Precision Shaped Grain (PSG) maintains super-sharp points that cut exceptionally fast with less pressure
PSG runs cooler, reducing metal discoloration/oxidation and the chance of heat related stress cracks
Disc life is significantly longer, completing more parts per disc and requiring fewer disc changes
Grinding aid reduces grinding temperatures for processes involving heat-sensitive alloys such as stainless steel, nickel alloys and titanium
3M™ Roloc™ attachment system provides for easy disc changes between grades or applications
Stiff fiber backing and a strong resin bond provide durability and tear-resistance for heavyweight applications such as high-pressure weld grinding

The 3M™ Cubitron™ II Roloc™ Fibre Disc 987C is designed for heavy duty metalworking applications such as weld grinding, beveling and flame-cut edge clean-up. This product uses 3M Precision-Shaped Grain on a fiber backing for fast grinding and blending.

3M™ Roloc™ Attachment

Our 3M™ Cubitron™ II Roloc™ Fibre Disc 987C uses precision-shaped grain technology (PSG) for heavy duty metalworking applications. 3M's PSG is an exceptionally high-performing ceramic, resin-bonded to a stiff fiber backing.

Our 3M™ Fibre 987C products incorporate a grinding aid to keep the workpiece cooler, protecting heat-sensitive alloys from heat damage and reducing re-work. These features offer increased productivity for heavy-duty grinding on all metals, including stainless steel.

Recommended Applications

Heavy duty metalworking applications
Flame-cut edge cleanup
Grinding
High pressure grinding
Right angle grinding
Edge chamfering
Weld removal and finishing
Edge beveling
Gate removal

The 3M™ Cubitron™ II Roloc™ Fibre Disc 987C is designed for heavy duty metalworking applications such as weld grinding, beveling and flame-cut edge clean-up.

3M Precision Shaped Grain

123 PSG
To create PSG, engineers start with 3M™ Ceramic Abrasive Grain and use proprietary technology to form the grains into triangular structures and electrostatically orient them on the backing to form sharp peaks that maximize cutting potential. These peaks slice cleanly through metal, rather than gouging or plowing as traditional abrasive grains do; and continuously self-sharpen as the points break off. This generates a super-fast cut and lessens heat build-up due to friction, reducing heat-related stress cracks and discoloration. PSG also wears evenly, and because the abrasive stays cooler and sharper, Cubitron II products last significantly longer than their conventional ceramic counterparts, ensuring extended high performance in production applications. Our Cubitron™ II products achieve a fast cut rate and a long product life.

Typical properties

Details

Abrasive Material	Precision Shaped Ceramic
Application	Weld Grinding, Weld Removal, Beveling, Blending, Blending Corners, Grinding, Heavy Grinding, High Pressure Grinding, Metal Stock Removal, Stock Removal, Surface Finishing
Attachment Type	TSM, TR, TS
Backing Material	Fibre
Bond Type	Resin
Brands	Cubitron™
Coat Type	Closed Coat
Equipment - Machines	Die Grinders
Grit	36+, 60+, 80+
Hole Configuration	R150S, RS200PM, R200P, RS300VM, R300V, R400BB, RS400BB
Maximum Speed	12000 rpm, 20000 rpm, 25000 rpm, 30000 rpm
Product Color	Orange
Sub Applications	Weld Grinding, High Pressure Grinding, Weld Removal, Weld Removal & Finishing, Flat Grinding, Gate Removal, Blending, Blending Corners, Dimensioning, Edge Beveling, Edge Chamfering, Flat Areas

Dimensions and Classifications

Overall Diameter (Imperial)	1.5 in, 2 in, 3 in, 4 in
Overall Diameter (Metric)	38.1 mm, 50.8 mm, 76.2 mm, 101.6 mm

Resources

3M™ Abrasive Products, Cubitron™ II Fibre Disc 987C, 36+, 60+, 80+, TN, GL, or TS Attachment, Slotted

Safety Data Sheets

Document Number: MSDS_2623098_US_EN

(PDF)
