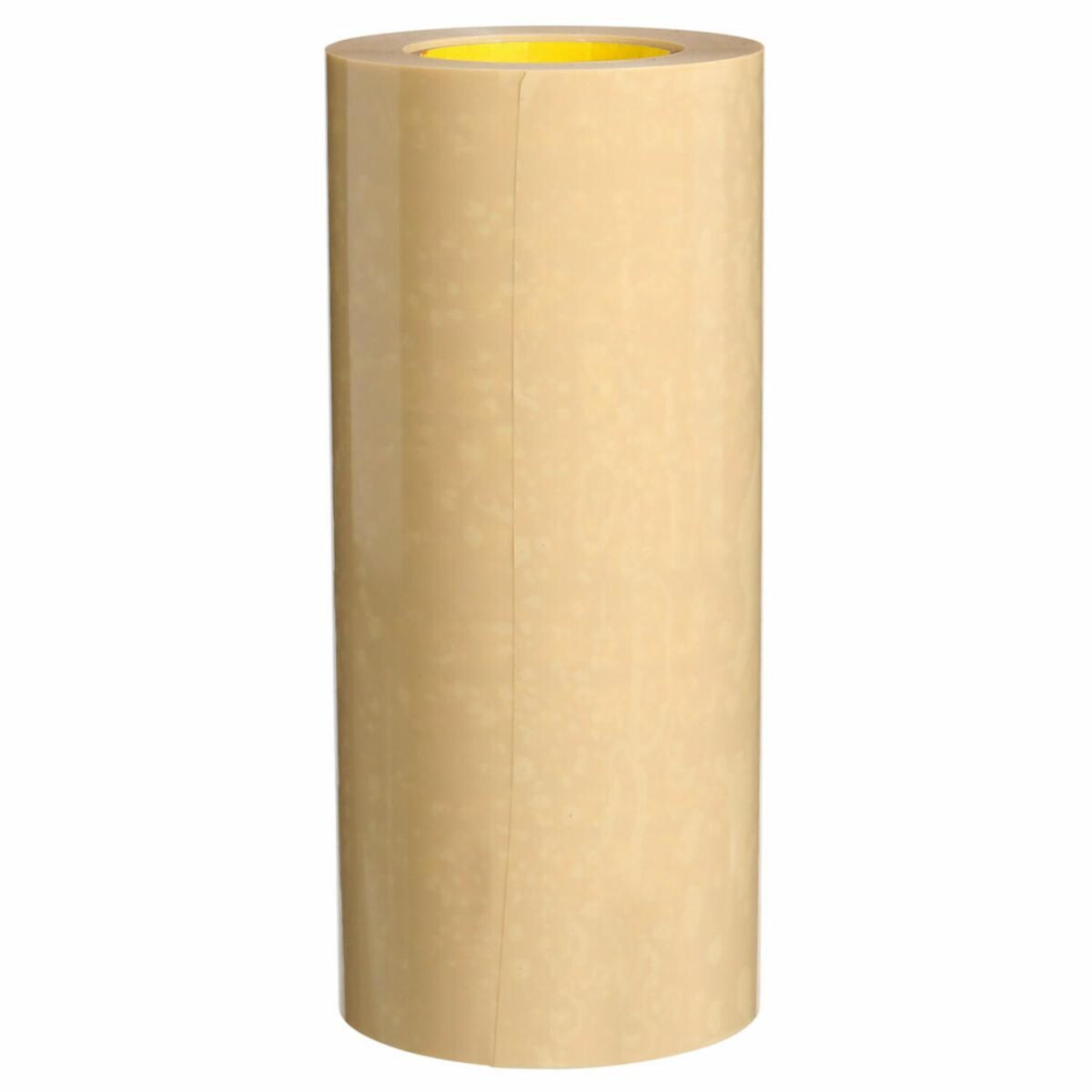

3M™ Double Coated Polyester Film Tape 442F
- 3M ID B40044829
Details
Highlights
- Rubber based adhesive provides fast and reliable bonding strength with clean removability
- Release liner based on a biaxially oriented clear polyester film offers dimensional stability and cleanness
- Double sided tape with polyester carrier film at its center core enhances the workability during lamination to various materials
- Combination of balanced adhesive and film properties provides an excellent cutability of the finished product
3M™ Double Coated Polyester Film Tape 442F is used to mount polishing plates. It is a 4 mil thick with 2 mil carrier and 4 mil liner
Typical properties
| Adhesive Type | Natural Rubber |
| Application | CMP, Attaching, Bonding, Laminating |
| Back Side Adhesive Thickness (Imperial) | 1.5 mil |
| Back Side Adhesive Thickness (Metric) | 0.038 mm |
| Back Side Adhesive Type | Natural Rubber |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Imperial) | 1 mil |
| Backing (Carrier) Thickness (Metric) | 25.4 Micron |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Face Side Adhesive Thickness (Metric) | 38.1 Micron |
| Face Side Adhesive Type | Natural Rubber |
| Indoor/Outdoor | Indoor |
| Industries | Electronics |
| Maximum Operating Temperature (Celsius) | 70 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 158 ℉ |
| Minimum Operating Temperature (Celsius) | 10 ℃ |
| Minimum Operating Temperature (Fahrenheit) | 50 ℉ |
| Package Contents | 1 Roll |
| Primary Liner | PET |
| Primary Liner Color | Transparent |
| Primary Liner Thickness (Imperial) | 3 mil |
| Primary Liner Thickness (Metric) | 76.2 Micron |
| Product Color | Tan |
| Product Form | Roll |
| Product Usage | CMP Pads, Polishing Pads |
| Shelf Life | 18 Month |
| Total Tape Thickness without Liner (Imperial) | 4 mil |
| Total Tape Thickness without Liner (Metric) | 0.1 mm |
| Units per Case | 1.0 |
