3M™ Three-Wall Header 3000 Series
- 3M Product Number 3000 Series
- 3M ID B30000153
- UPC 08887862422254
Details
Highlights
- Military and center bump polarization
- Low-profile design
- Optional ejector latches
- Mounting holes for securing header to board
- Three-wall shroud provides design flexibility
- Solder tail and wrap tail options
- Optional polarizing posts available
- High-temperature insulator good for for no-lead soldering operations
- Good for reflow soldering using paste-in-hole techniques

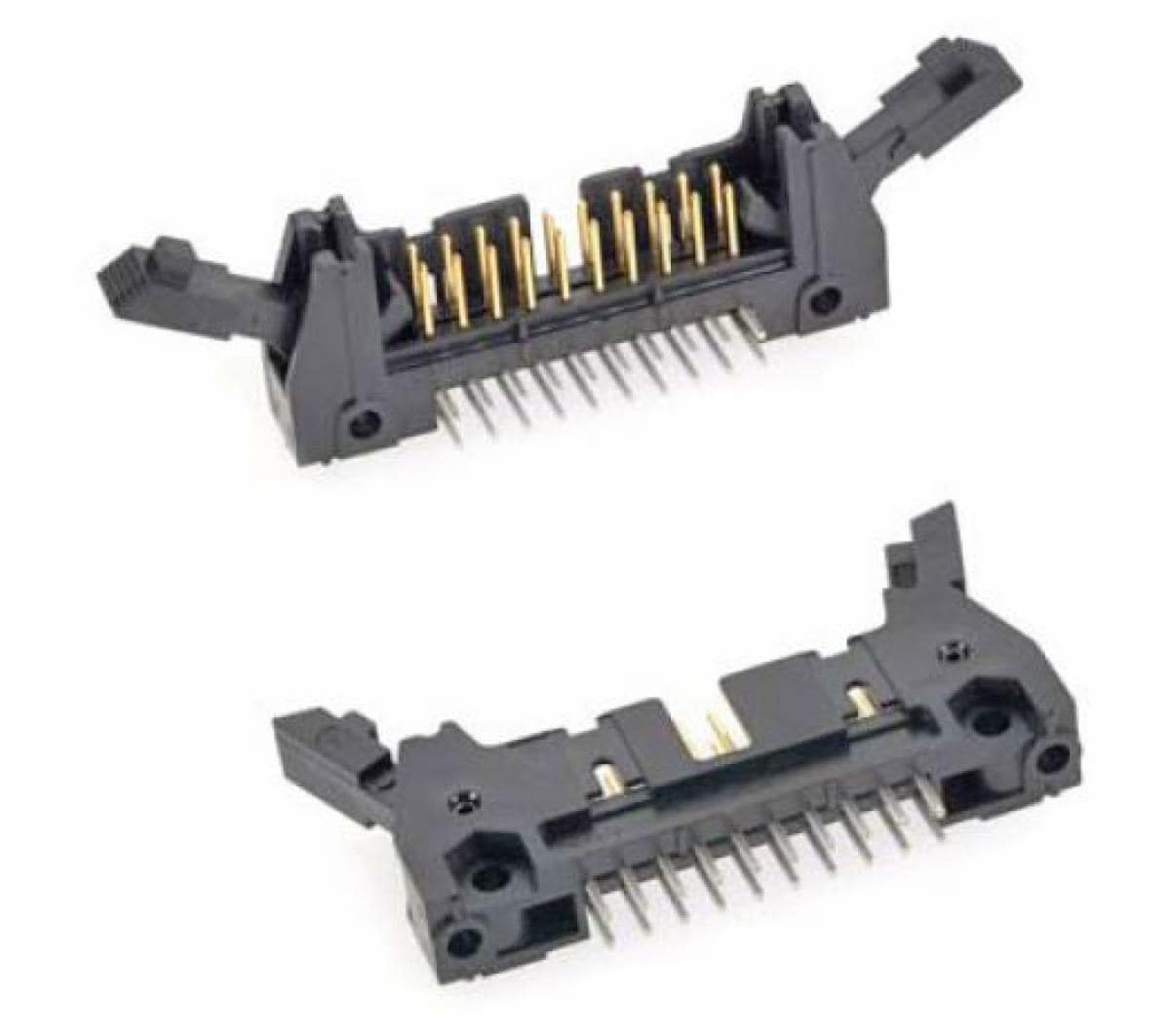

3M™ Three-Wall Header 3000 Series is a boardmount latch/eject header that brings performance and quality to connectivity applications. With its low-profile design and optional ejector latches, it provides secure and easy mating of two-part connectors for hassle-free maintenance. This PCB connector is a good option for reflow soldering using paste-in-hole techniques, making it an excellent choice for high-volume manufacturing.
The three-wall shroud on 3M™ Three-Wall Header 3000 Series offers design flexibility, while the high-temperature insulator helps ensure compatibility with no-lead soldering operations. It features a pitch of .100 in. and is available with 30 gold-plated contacts, providing reliable and durable connectivity.
Typical properties
| Application | Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Header |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.75 A |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height (Imperial) | 0.31 in, 0.68 in |
| Insulation Height (Metric) | 7.87 mm, 17.27 mm |
| Insulation Material | Glass Filled Polyester (PBT) or High Temperature (PCT) |
| Latch/Ejector Type | Push-in/Pull-out, Latch Lock/Eject Hooks (Long), Latch Lock/Eject Hooks (Short) |
| Mating Contact Finish Material | Gold |
| Mating Option | Board to Cable, Board to Wire, Board to Board |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉ |
| Number of Contact Rows | 2 |
| Number of Contacts | 10 , 14 , 16 , 20 , 26 , 34 , 40 , 50 , 60 , 64 |
| PCB Mounting Angle | Right Angle, Straight |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 0.1 mm |
| Post Contact Finish Material | Matte Tin |
| Product Series | 3000 |
| Shroud Style | 3 Wall |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-0771 |
| Voltage Rating | 1000 Vrms at Sea Level |
