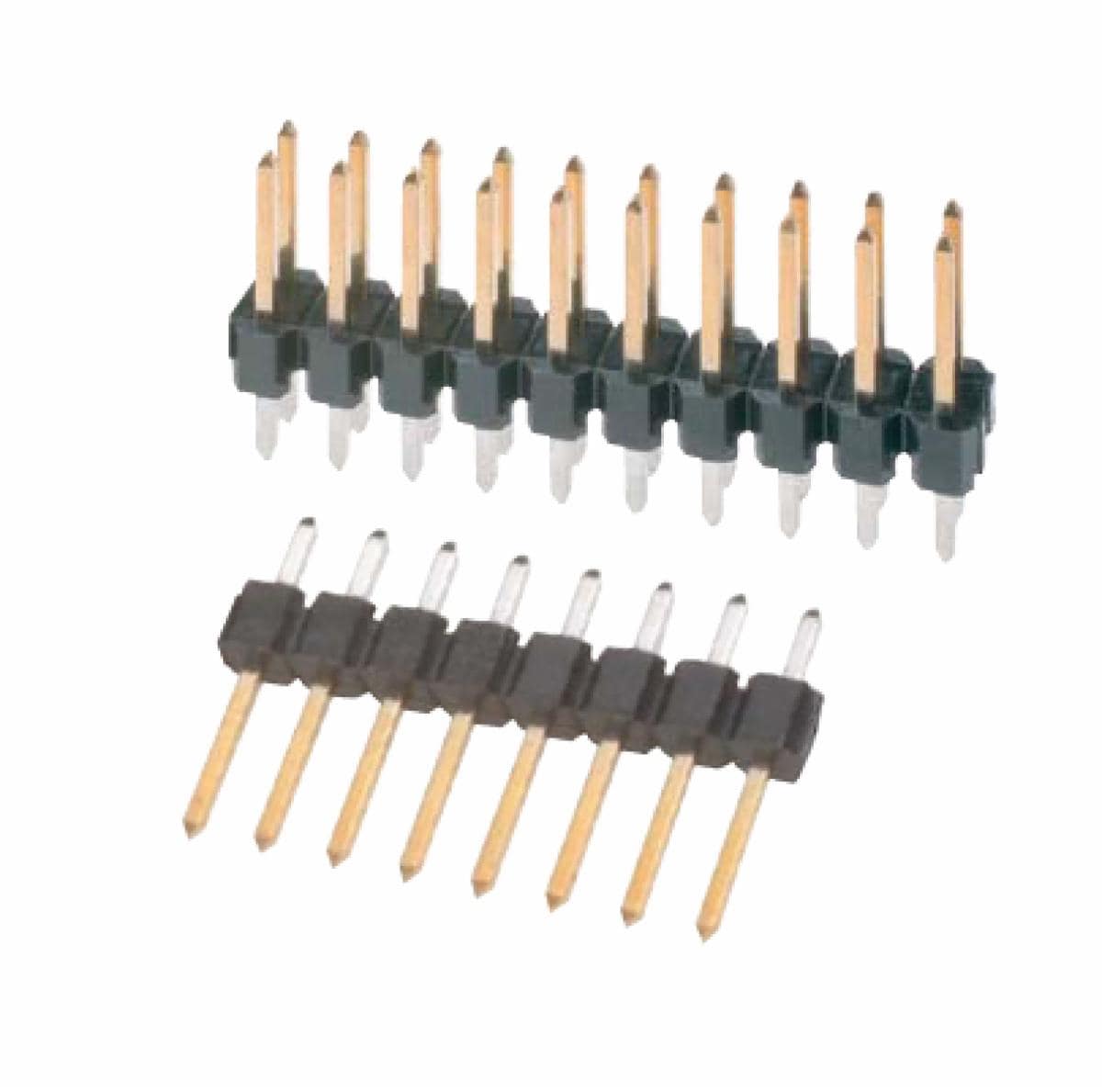

3M™ Pin Strip Header, 961 Series
- 3M Product Number 961 Series
- 3M ID B30000139
- UPC 00076308790264
Details
Highlights
- Excellent for high-temperature applications
- Single and dual row configurations allow for design flexibility
- End stackable for efficient use of board space
- Mates with boardmount and wiremount products
- Compatible with "no lead" wave and reflow soldering
The 3M™ Pin Strip Header, 961 Series, is a very versatile high-dielectric header, excellent for applications where temperatures are high and electrical performance is critical. The header is available in single and dual row configurations and is end stackable for a broad range of board designs.
Compatible with no-lead wave and reflow soldering processes, 3M™ Pin Strip Header, 961 Series mates with boardmount and wiremount products.
Typical properties
| Application | Board-to-board Connecting, Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Pin Header, Header |
| Contact Base Material | Copper Alloy |
| Contact Termination Area Plating Material | Matte Tin |
| Contact Termination Area Plating Thickness (Imperial) | 40 µin - 118 µin |
| Contact Termination Area Plating Thickness (Metric) | 1 µm - 3 µm |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Imperial) | 50 µin - 100 µin |
| Contact Underplating Thickness (Metric) | 1.25 µm - 2.5 µm |
| Current Rating | 1.0 A, 2.0 A |
| Factory ISO Certification | No ISO Certification information available |
| Insulation Color | Black |
| Insulation Height (Imperial) | 0.098 in, 0.98 in |
| Insulation Height (Metric) | 2.5 mm, 24.9 mm |
| Insulation Material | High Temperature Thermoplastic, Thermoplastic |
| Insulation Resistance | >5x10⁸ Ω @ 100 VDC |
| Latch/Ejector Type | Push-in/Pull-out |
| Mating Contact Finish Material | Gold Flash |
| Mating Contact Finish Thickness (Imperial) | <10 µin |
| Mating Contact Finish Thickness (Metric) | <0.25 µm |
| Mating Option | None, Board to Board |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -25 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -25 ℉, -13 ℉ |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Number of Contact Rows | 0 , 1 , 2 |
| Number of Contacts | 3 , 10 , 23 , 36 , 40 , 72 , 80 |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.1 in |
| Pitch (Metric) | 2.54 mm |
| Post Contact Finish Material | Tin |
| Product Series | 961 |
| Shroud Style | Unshrouded |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-2659 |
