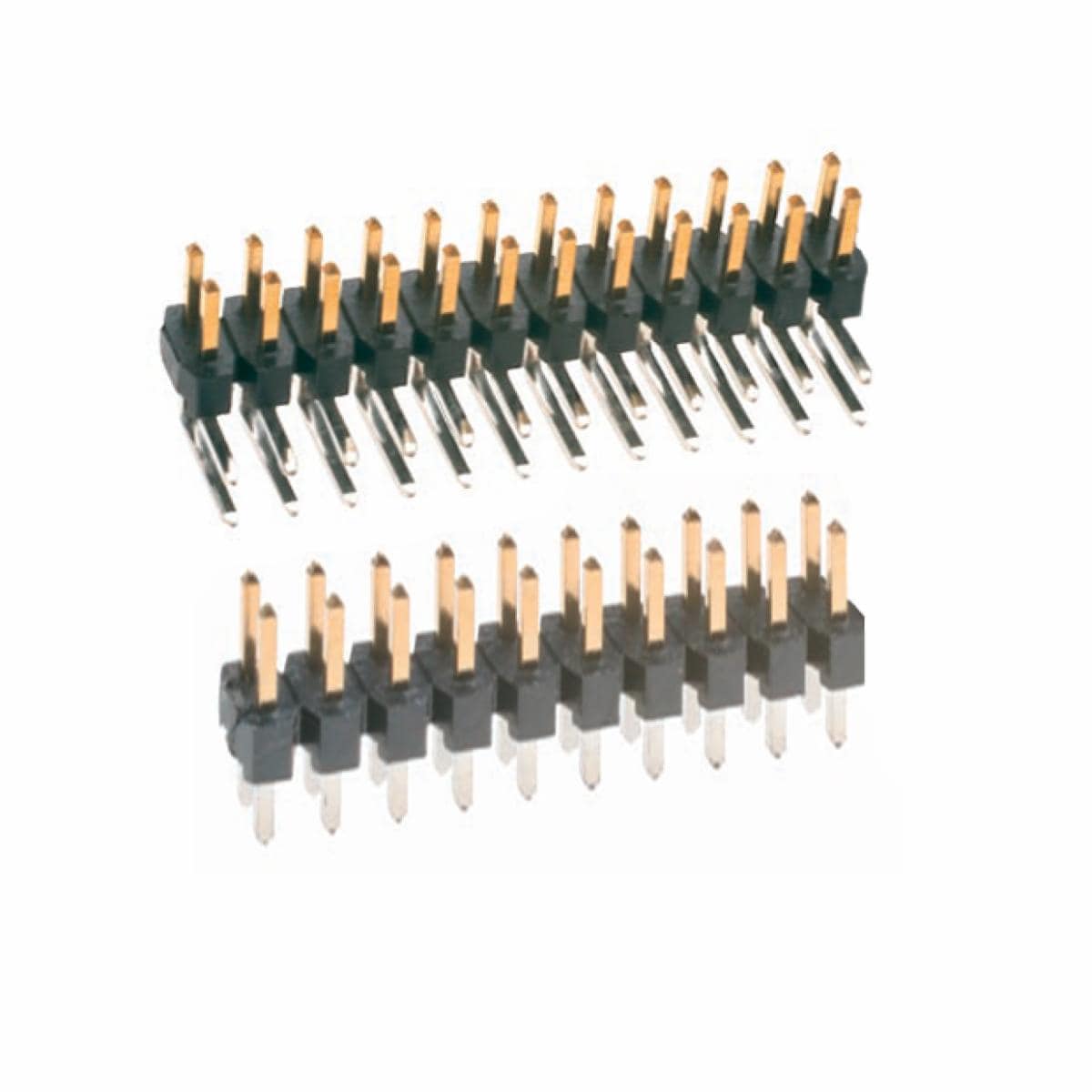

3M™ Pin Strip Header, 951 Series
- 3M Product Number 951 Series
- 3M ID B30000138
- UPC 00076308789602
Details
Highlights
- Excellent for high-temperature applications
- End stackable for optimized board space
- Mates with boardmount and wiremount products
- 1.52 mm, 2 mm, 4 mm insulator heights
- 1.0 A rated
- "No lead" wave and reflow solder compatible
- Available in straight and right angle, solder tail and SMT
The 3M™ Pin Strip Header, 951 Series is a high-dielectric header that withstands high temperatures and maintains electrical performance even during thermal cycling. It is end stackable for efficient use of PCB space, and mates with boardmount and wiremount products.
Available in straight and right angle, solder tail and SMT versions, the 3M™ Pin Strip Header, 951 Series is compatible with wave and reflow soldering methods even with no-lead soldering.
Typical properties
| Application | Board-to-board Connecting, Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Header |
| Contact Base Material | Copper Alloy, Tin |
| Contact Termination Area Plating Material | Matte Tin |
| Contact Termination Area Plating Thickness (Imperial) | 40 µin - 118 µin |
| Contact Termination Area Plating Thickness (Metric) | 1 µm - 3 µm |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Imperial) | 100 µin |
| Contact Underplating Thickness (Metric) | 1.25 µm - 2.5 µm |
| Current Rating | 1.0 A |
| Insulation Color | Black |
| Insulation Height (Imperial) | 0.06 in, 0.079 in, 0.157 in |
| Insulation Height (Metric) | 1.52 mm, 2 mm, 4 mm |
| Insulation Material | Thermoplastic, High Temperature Thermoplastic |
| Insulation Resistance | >5x10⁸ Ω @ 100 VDC |
| Latch/Ejector Type | Push-in/Pull-out |
| Mating Contact Finish Material | Gold Flash |
| Mating Contact Finish Thickness (Imperial) | <10 µin |
| Mating Contact Finish Thickness (Metric) | <0.25 µm |
| Mating Option | Board to Board, None |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -25 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -25 ℉ |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Number of Contact Rows | 1 , 2 |
| Number of Contacts | 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10 , 12 , 14 , 15 , 16 , 18 , 20 , 22 , 24 , 26 , 30 , 32 , 34 , 36 , 40 , 44 , 50 , 60 , 66 , 80 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 2 mm |
| Post Contact Finish Material | Tin |
| Process Temperature Rating | 260 °C Maximum (Per J-STD-020C) |
| Product Series | 951 |
| Shroud Style | Unshrouded |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-2653 |
