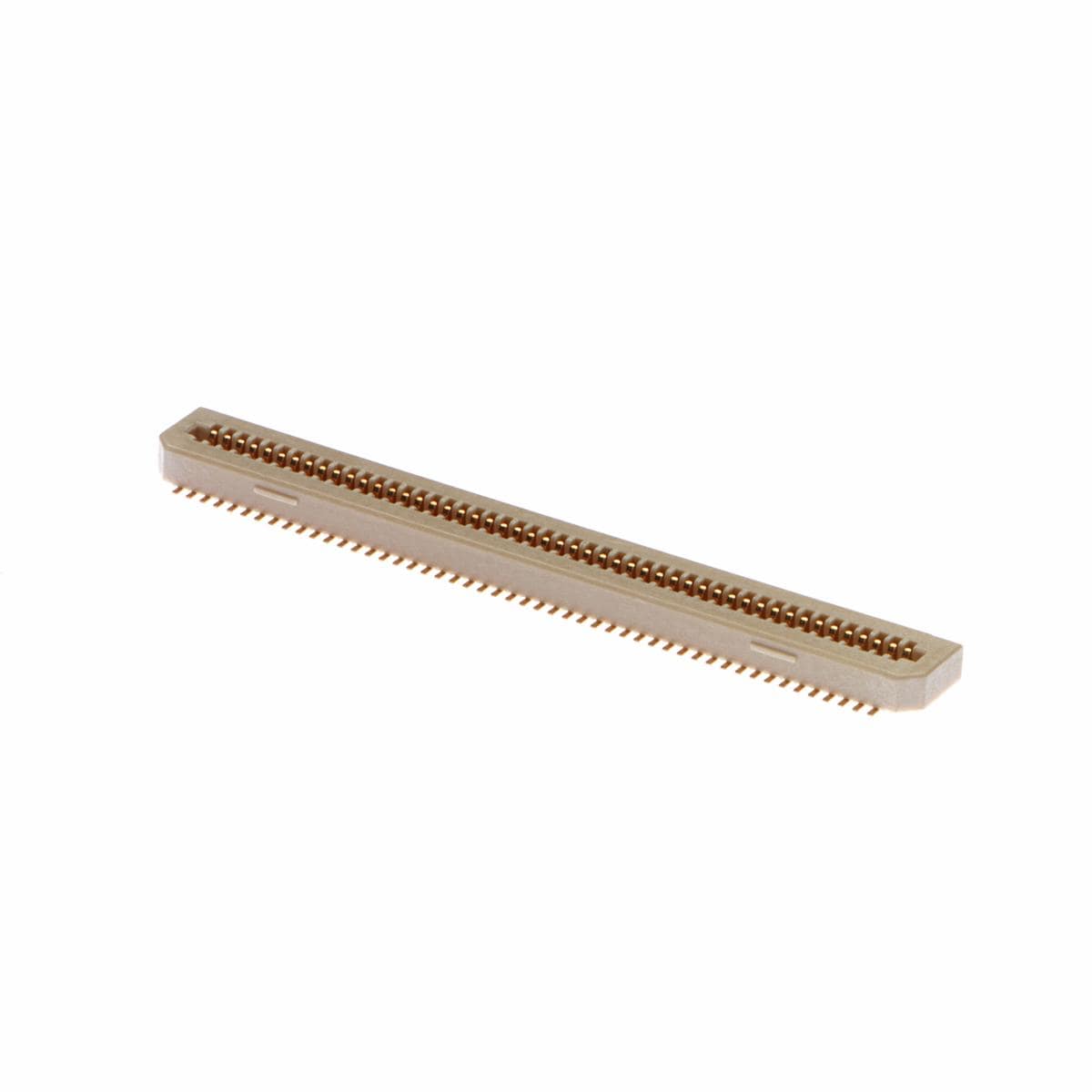

3M™ Pak 8 Socket Connector, P08 Series, P08-100SLTC-B-G

0.8 mm pitch connector system

Mated heights available from 3 mm to 8 mm

Surface mount design

PAK 8 Series, 0.8mm Board Mount Socket, Vertical, SMT, 3 mm to 8 mm Stack Height

Application	Board-to-board Connecting
Brands	3M™
Connector Shape	Rectangular
Connector Style	Receptacle
Contact Base Material	Gold
Current Rating	0.5 A
Features	Board Guide
Insulation Color	Ivory (Natural)
Insulation Height (Imperial)	0.0787 in
Insulation Height (Metric)	2.2 mm
Insulation Material	High Temperature Thermoplastic
Mating Contact Finish Material	Gold
Mating Option	None
Maximum Operating Temperature (Celsius)	85 ℃
Maximum Operating Temperature (Fahrenheit)	185 ℉
Minimum Operating Temperature (Celsius)	-55 ℃
Minimum Operating Temperature (Fahrenheit)	-67 ℉
Moisture Sensitivity Level	1 (Per J-STD-020)
Number of Contact Rows	2
Number of Contacts	100
PCB Mounting Style	Surface Mount
Pitch (Imperial)	0.05 in
Pitch (Metric)	1.27 mm
Post Contact Finish Material	Gold
Product Series	P08
Specifications Met	UL 94V-0
Tech Sheet Number	TS-1150
Voltage Rating	60 VAC/DC

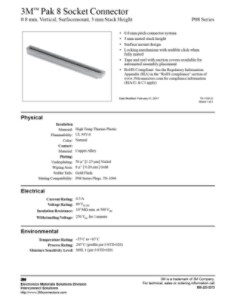

Data Sheets

(PDF, 946KB)
