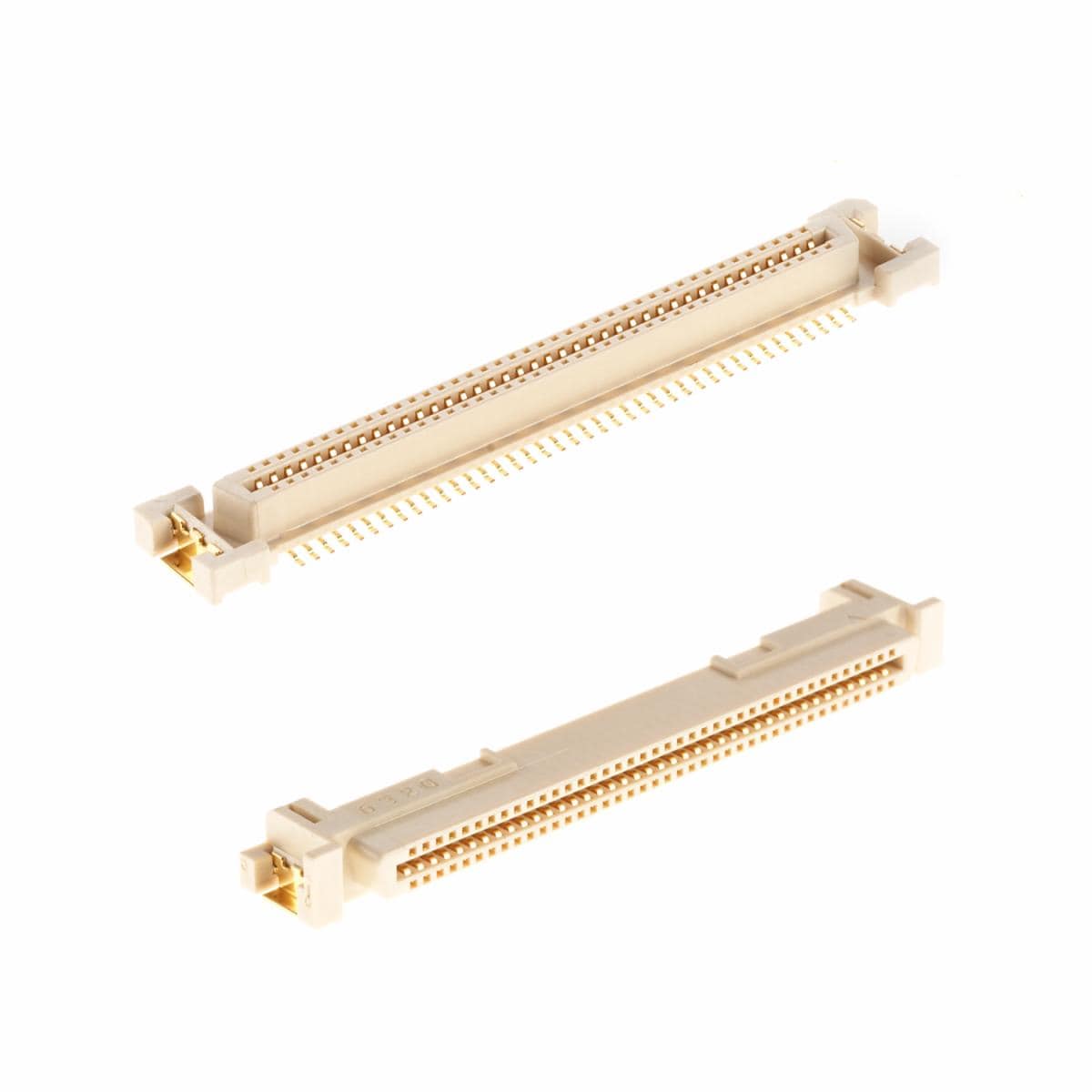

3M™ Pak 10 Surfacemount Socket, PK10 Series
- 3M Product Number PK10 Series
- 3M ID B30000118
- UPC 00051111741290
Details
Highlights
- 1 mm pitch surface mount socket
- Allows for stacked, horizontal or vertical mating
- Low profile 5 mm mated height is excellent for space-constrained environments
- Surface mount retention clips reduce stress on SMT leads
- Keyed design helps prevent mating misalignment
- Hard tray and vacuum pickup are ideal for automated assembly placement
- Mates to 3M™ Pak 10 Plug, PK10 Series
3M™ Pak 10 Surfacemount Socket, PK10 Series a versatile 1 mm pitch socket that allows for stacked, horizontal, or vertical mating. Its low-profile design features a mated height of just 5 mm for applications where space is limited. Surface mount retention clips reduce stress on the leads and help keep the plug inserted solidly. Its keyed design helps prevent misalignment during mating. A hard tray and vacuum pickup capabilities make the socket ideal for automated assembly placement.
Part of a versatile, low-profile connector system, the 3M™ Pak 10 Surfacemount Socket, PK10 Series mates to the 3M™ Pak 10 Plug, PK10 Series.
Typical properties
| Application | Board-to-board Connecting |
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Contact Termination Area Plating Material | Gold Flash |
| Factory ISO Certification | No ISO Certification information available |
| Insulation Material | Glass Filled LCP |
| Insulation Resistance | >1x10³ MΩ @ 500 VDC |
| Mating Option | None |
| Number of Contact Rows | 0 |
| Number of Contacts | 30 , 50 , 80 , 100 |
| Pitch (Imperial) | 0.039 in |
| Pitch (Metric) | 1 mm |
| Process Temperature Rating | 260 °C (Per J-STD-020C) |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-1077 |
