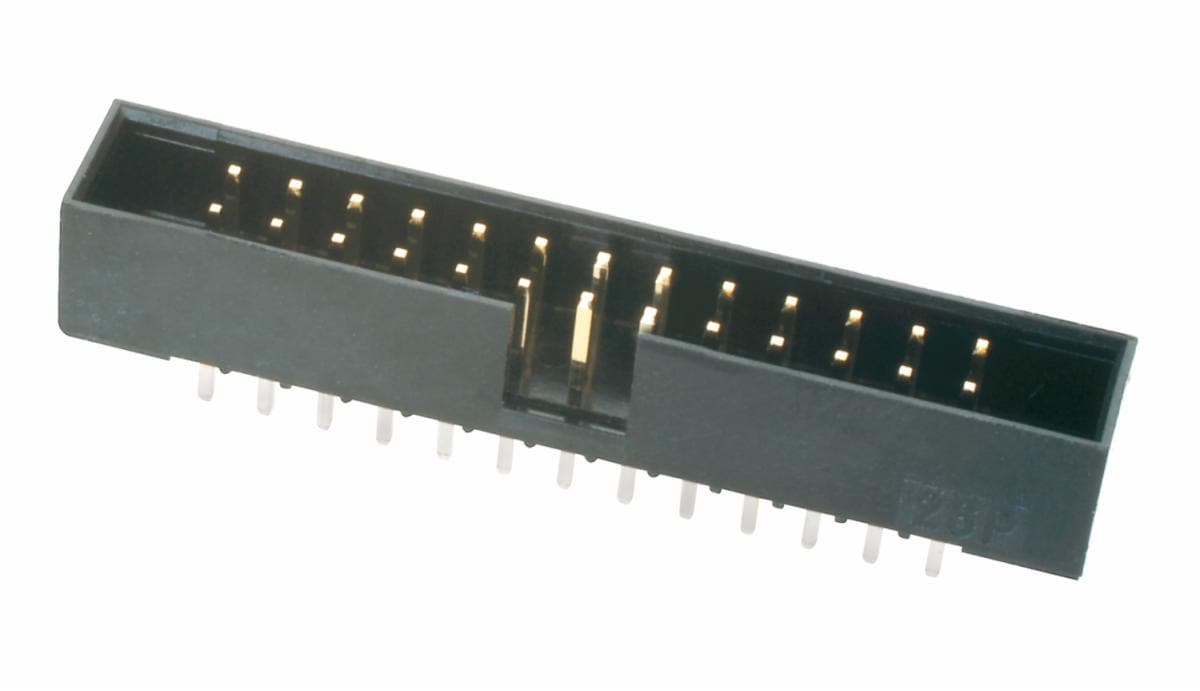

3M™ Box Header, 957 Series
- 3M ID B30000107
- UPC 00076308790394
Details
Highlights
- High temperature dielectric
- “No lead” wave and reflow solder compatible
- Optimizes use of PC board space
- Center slot polarization prevents mis-insertions and reduces insertion time
- See Regulatory Information Appendix for chemical compliance information
- For more information, refer to Customer Drawing 78-5100-2656-6 (78510026566), formerly TS-2175 (TS2175) and TS-2174 (TS2174)
- For more information, refer to Tech Sheet TS-2656 (TS2656) / Customer Drawing 78-5100-2656-6 (78510026566)
957 Series, 2mm Low Profile Four Wall Box Header, Vertical and Right Angle, Thru-Hole, SMT
Typical properties
| Application | Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Receptacle, Header |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.0 A |
| Features | Keying Slot, Pick & Place |
| Insulation Color | Black |
| Insulation Height (Imperial) | 0.217 in, 0.22 in |
| Insulation Height (Metric) | 5.51 mm, 5.6 mm |
| Insulation Material | Thermoplastic |
| Latch/Ejector Type | Latch Lock/Eject Hooks (Long) |
| Mating Contact Finish Material | Gold |
| Mating Option | Board to Board |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -40 ℉ |
| Number of Contact Rows | 2 |
| Number of Contacts | 10 , 12 , 14 , 16 , 20 , 23 , 24 , 26 , 34 , 40 , 44 , 50 |
| PCB Mounting Angle | Right Angle, Straight |
| PCB Mounting Style | Through Hole, Surface Mount |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 2 mm |
| Post Contact Finish Material | Tin |
| Shroud Style | 4 Wall |
| Tech Sheet Number | TS-2656 |
| Voltage Rating | 500 Vrms at Sea Level |
