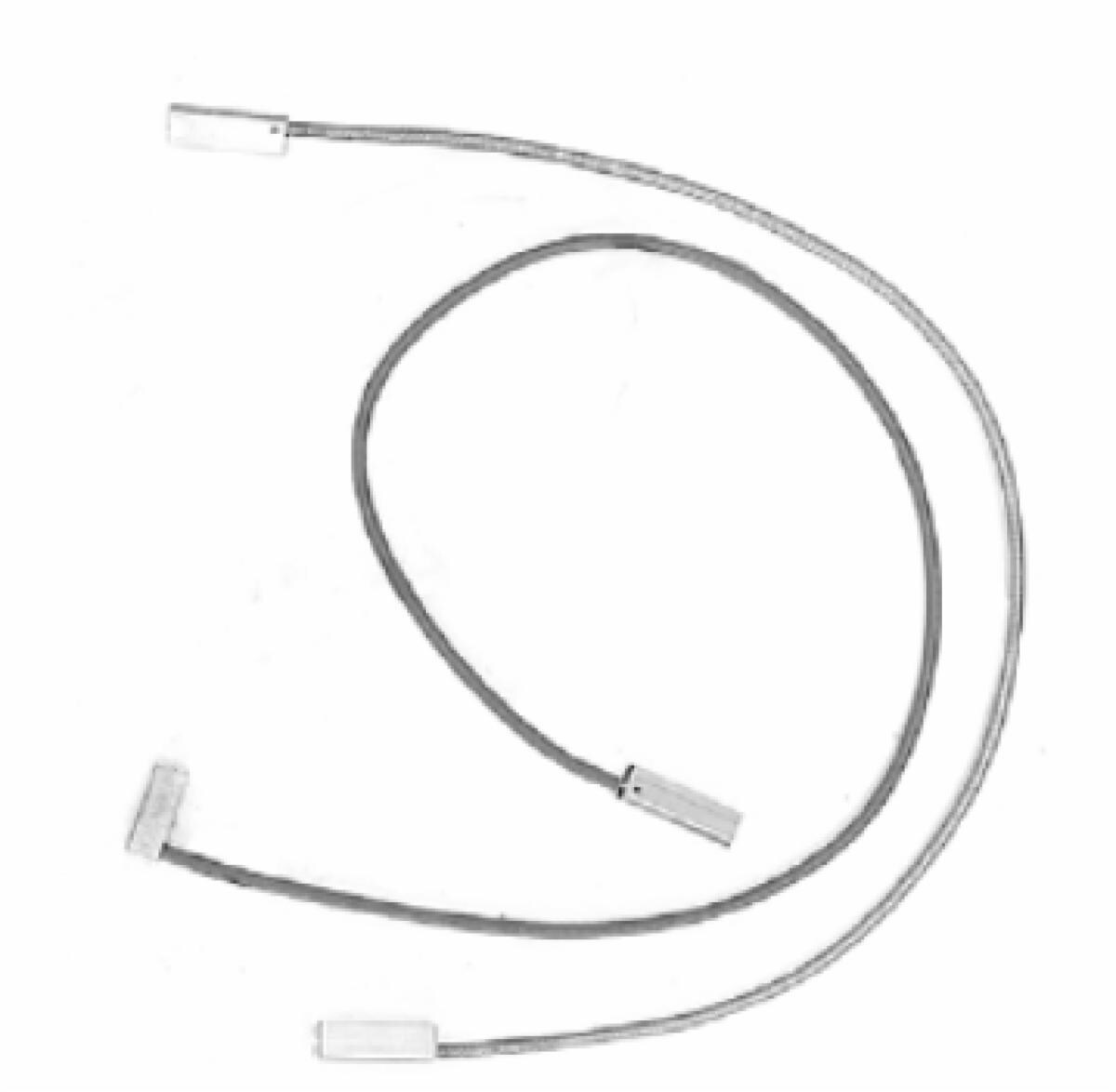

3M™ Shielded Controlled Impedance (SCI), Cable Assemblies, .100"

3M ID B10511603
UPC 00076308971557

.100 inch (2.54 mm) center spacing

Mates with standard 3M two-pin headers

Supplied as a completed assembly Stand-Alone version

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 528KB)

Find a part

Details

Highlights

.100 inch (2.54 mm) center spacing
Mates with standard 3M two-pin headers
Supplied as a completed assembly Stand-Alone version
Available in right angle and straight configurations with optional polarization feature
Right angle connector has optional two-pin header latch Carrier version
Available only in straight configuration designed for use with the 3M SCI carrier system
For more information, refer to Data Sheet TS0803 (TS-0803)

3M™ Shielded Controlled Impedance (SCI), Cable Assemblies, .100 are supplied as a completed assembly Stand-Alone version. Mates with standard two-pin headers. Available in right angle and straight configurations with optional polarization feature.

Typical properties

Details

Tech Sheet Number	TS-0803

Resources

3M(TM) Shielded Controlled Impedance (SCI) .100, ts0803

3M™ Shielded Controlled Impedance (SCI) .100, ts0803
