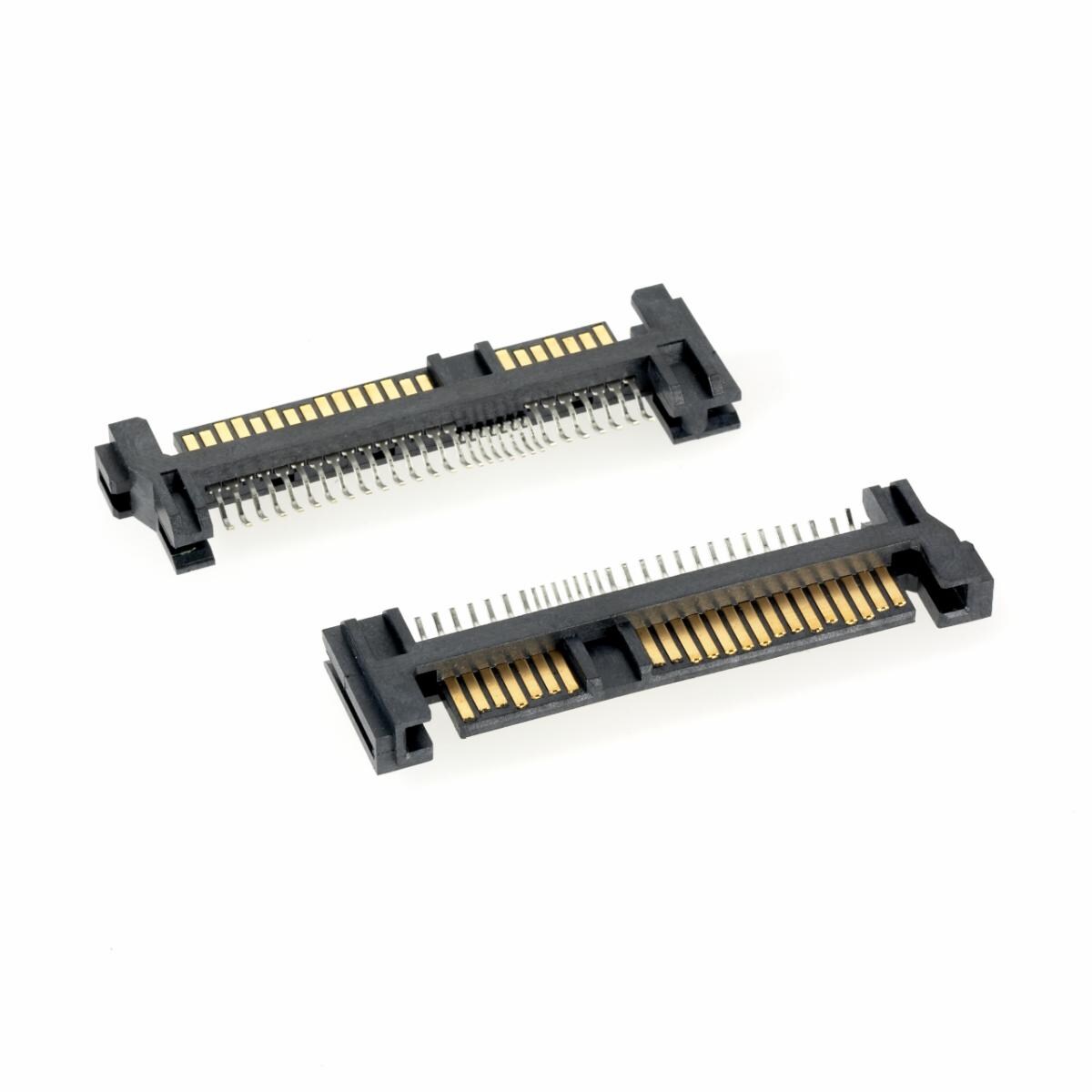

3M™ Serial Attached SCSI (SAS) Connector, SBH Series

3.0 Gbps input/output connector for HDD

Two contact mating levels for early-mate and late-break allows "blind mating" or "hot swap" applications

Meets SFF-8482 Specification

3.0 Gbps input/output connector for HDD
Two contact mating levels for early-mate and late-break allows "blind mating" or "hot swap" applications
Meets SFF-8482 Specification
Meets SAS Specification, SAS-1.1
RoHS compliant

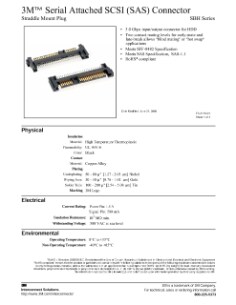

For more information refer to Data Sheet TS2179 (TS-2179)

Straddle Mount Plug

Data Sheets

(PDF, 182KB)

Data Sheets

(PDF, 230KB)
