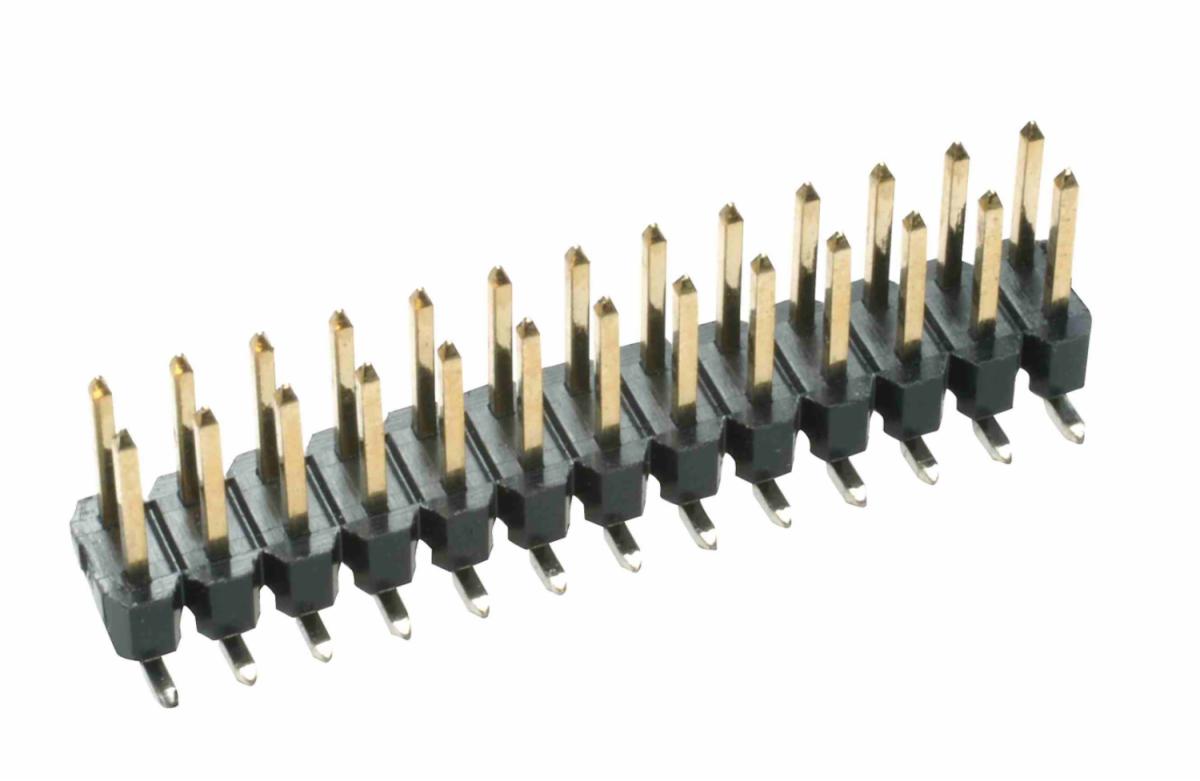

3M™ Pin Strip Header, 961 Series
- 3M ID B00046734
Details
Highlights
- High temperature dielectric
- “No lead” wave and reflow solder compatible
- End stackable feature
- Single- and dual row version
- Mates with boardmount and wiremount products
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information

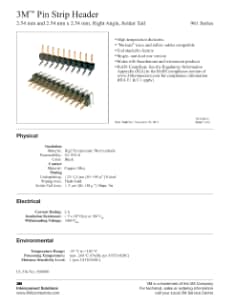

- For more information, refer to Data Sheet TS2182 (TS-2182)
961 Series, .100" (2.54mm) Header, Single and Dual Row, Right Angle, Solder Tail
Typical properties
| Application | Board-to-board Connecting, Wire-to-board Connecting |
| Contact Base Material | Copper Alloy |
| Contact Termination Area Plating Material | Matte Tin |
| Contact Termination Area Plating Thickness (Imperial) | 40 µin - 118 µin |
| Contact Termination Area Plating Thickness (Metric) | 1 µm - 3 µm |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Imperial) | 50 µin - 100 µin |
| Contact Underplating Thickness (Metric) | 1.25 µm - 2.5 µm |
| Insulation Color | Black |
| Insulation Material | High Temperature Thermoplastic |
| Insulation Resistance | >5x10⁸ Ω @ 100 VDC |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -25 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -13 ℉ |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-2182 |
