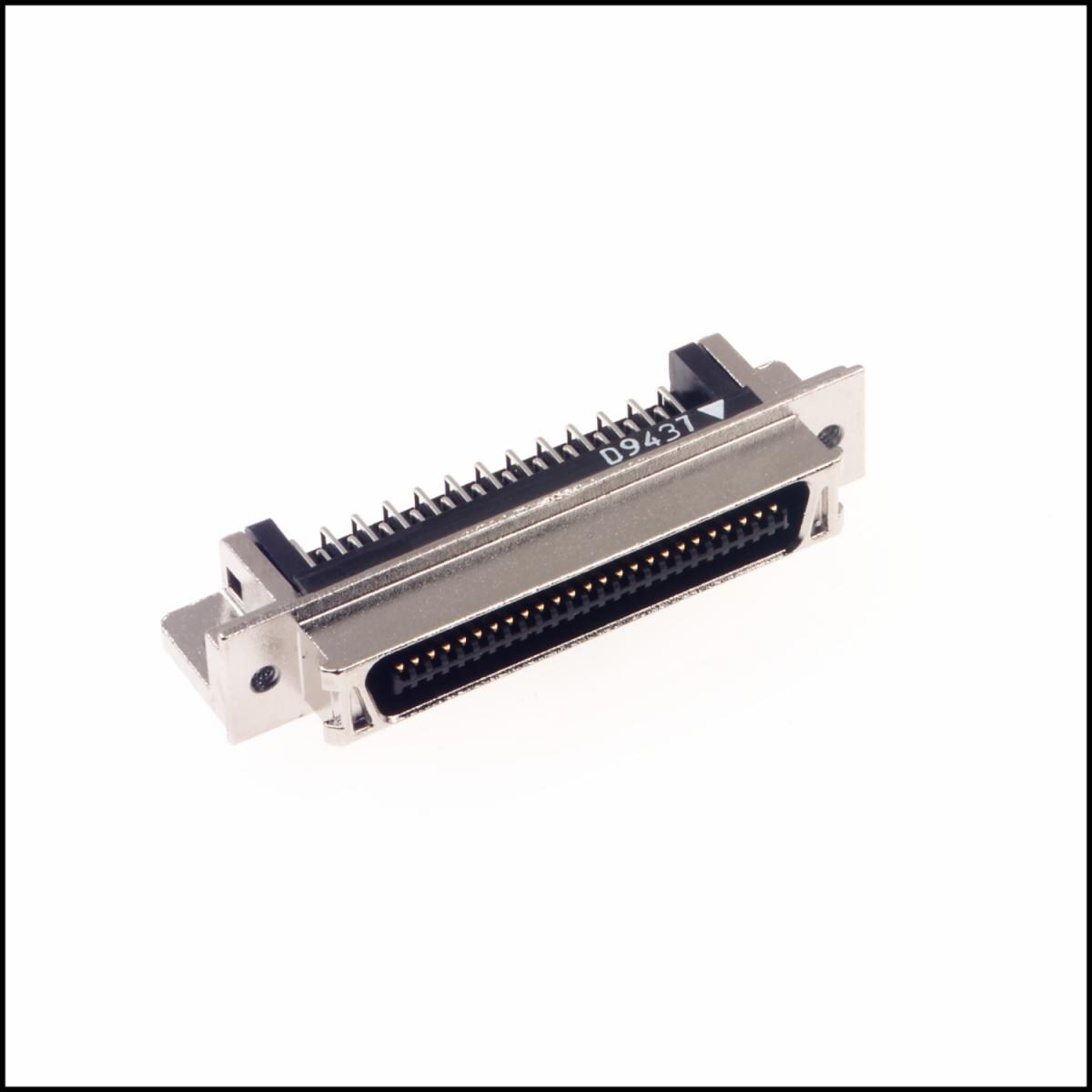

3M™ Pak 50 I/O Plug, P50-XXX-DDP-XXX-EA, P50 Series
- 3M Product Number P50 Series
- 3M ID B00046680
- UPC 00051119902990
Details
Highlights
- Provides EMI shielding for wire-to-board connections
- Can connect to sockets from 20 to 100 positions
- Available in straight and right angle versions
- Through-hole boardmount connector
- Mates easily with 3M™ Pak 50 Series Wiremount Sockets
The 3M™ Pak 50 I/O Plug provides stable, reliable connection and EMI shielding for wire-to-board connections. This I/O through-hole plug connects to sockets from 20 to 100 positions.
Available in straight and right angle versions, 3M™ Pak 50 I/O Plug mates easily with 3M™ Pak 50 Series Wiremount Sockets.
Typical properties
| Application | Wire-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Plug |
| Contact Base Material | Phosphor Bronze |
| Current Rating | 0.5 A |
| Insulation Color | Black |
| Insulation Material | Glass Filled Nylon |
| Mating Contact Finish Material | Gold |
| Mating Option | None |
| Maximum Operating Temperature (Celsius) | 85 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 185 ℉ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉ |
| Number of Contact Rows | 0 |
| Number of Contacts | 20 , 50 , 68 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.05 in |
| Pitch (Metric) | 1.27 mm |
| Post Contact Finish Material | Gold |
| Specifications Met | UL 94V-0, RoHS 2011/65/EU |
| Tech Sheet Number | TS-1147 |
| Voltage Rating | 650 Vrms at Sea Level |
