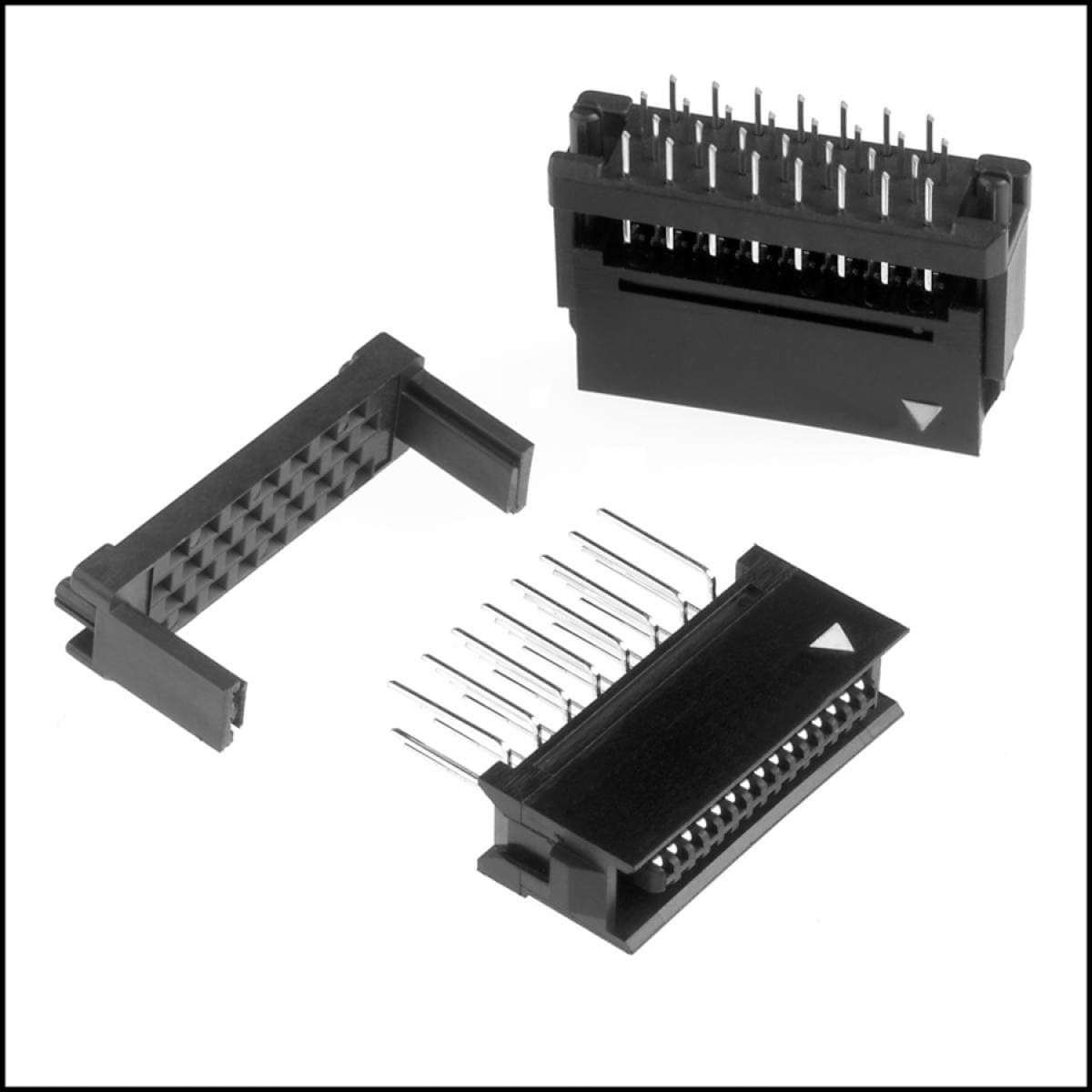

3M™ Pak 50 Boardmount Plug, P50 Series
- 3M Product Number P50 Series
- 3M ID B00046676
- UPC 00051111779002
Details
Highlights
- Vertical stacking connector is available in 20, 24 and 30 mm stacking heights
- Custom stack heights available between 18 and 30 mm
- Connector design features two mating points per contact for reliability
- Alignment posts provide accurate mating with straignt and right-angle socket connectors
- Mates with 3M™ Pak 50 Series socket connectors
The 3M™ Pak 50 Boardmount Plug, P50 Series is a versatile stacking connector available in 20 mm, 24 mm and 30 mm stacking heights as well as custom heights between 18 and 30 mm. Vertical stacking boardmount plug features two mating points per contact for consistently strong connections. Alignment posts make for fast and accurate mating.
The through-hole 3M™ Pak 50 Boardmount Plug, P50 Series features a high temperature insulator for wave soldering. It mates easily with 3M connectors P50 Series for board-to-board-to-board and board-to-wire applications.
Typical properties
| Application | Board-to-board Connecting |
| Connector Shape | Rectangular |
| Connector Style | Plug |
| Contact Base Material | Phosphor Bronze |
| Contact Termination Area Plating Material | Gold Flash |
| Current Rating | 0.5 A |
| Features | Stackable |
| Insulation Color | Black |
| Insulation Height (Imperial) | 0.421 in |
| Insulation Height (Metric) | 10.7 mm |
| Insulation Material | Glass Filled Nylon, Glass Filled Polyamide Nylon |
| Insulation Resistance | >1x10⁹ Ω @ 500 VDC |
| Latch/Ejector Type | Latch Holder |
| Mating Contact Finish Material | Gold |
| Mating Option | None, Board to Cable, Board to Wire, Board to Board |
| Maximum Operating Temperature (Celsius) | 85 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 185 ℉ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉ |
| Number of Contact Rows | 0 , 2 |
| Number of Contacts | 0 , 24 , 60 , 100 |
| PCB Mounting Style | Through Hole |
| Post Contact Finish Material | Gold |
| Process Temperature Rating | 260 °C (Wave Solder Compatible) |
| Product Series | P50 |
| Shroud Style | 4 Wall |
| Specifications Met | UL 94V-0 |

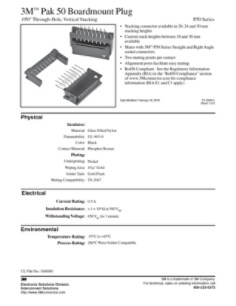

| Tech Sheet Number | TS-2048 |
| Voltage Rating | 650 Vrms at Sea Level |
