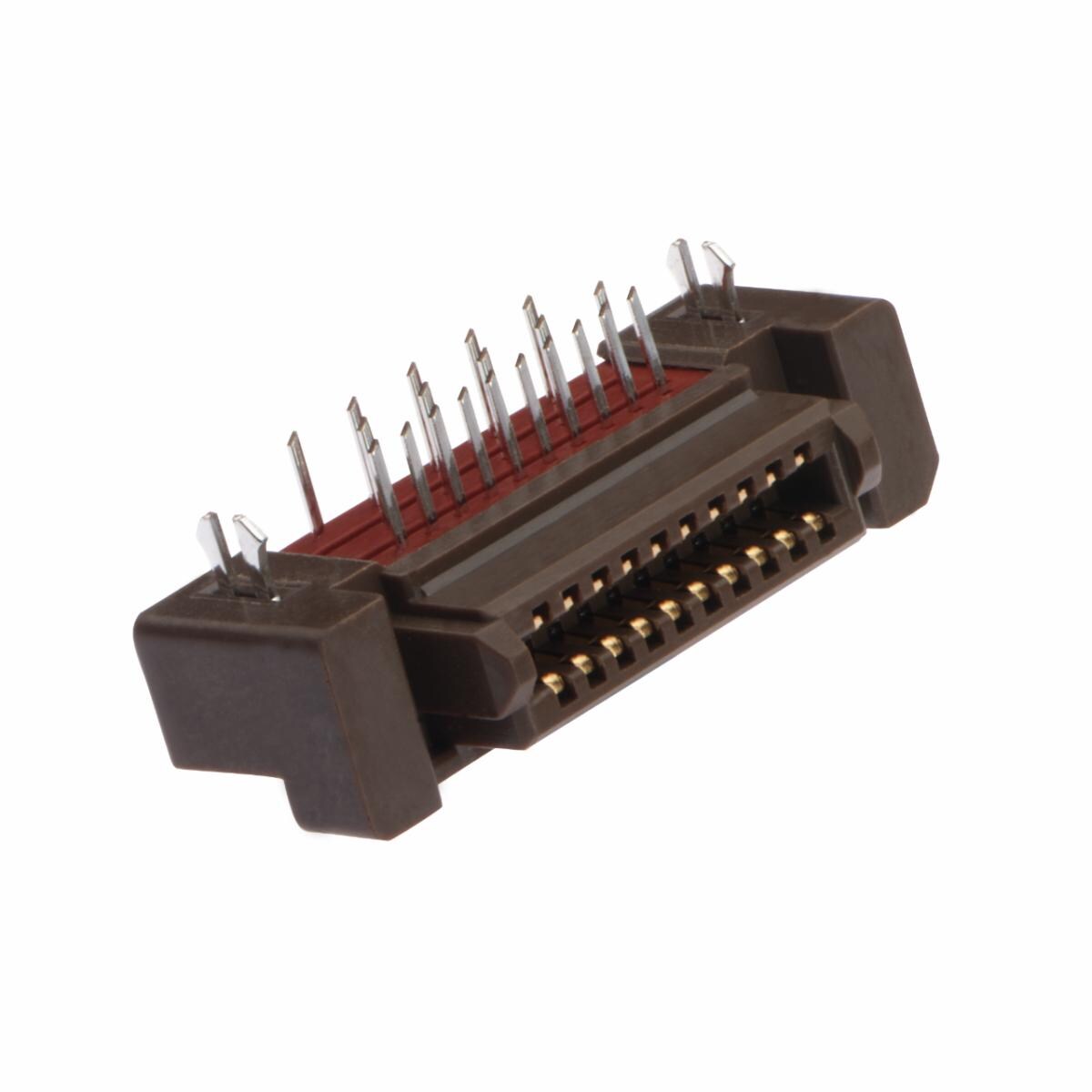

3M™ Pak 50 Low Profile Socket, P50L Series
- 3M Product Number P50L Series
- 3M ID B00046521
- UPC 00051111740040
Details
Highlights
- Low profile (7 mm) connector is excellent for PCB board stacking
- Right-angle socket design helps optimize space and meet height requirements
- High temperature insulator allows for IR and wave soldering
- Optional plug standoffs allow for offset of mated boards by 1 mm-4 mm
- Retention clips help stabilize connector during wave soldering
The 3M™ Pak 50 Low Profile Socket, P50L Series is a right-angle boardmount connector that is excellent for board stacking applications requiring board mating heights of 7 mm. Polarized alignment posts help minimize misalignment, allowing technicians to install the board-to-board socket accurately. A high temperature insulator allows for IR and wave soldering, and retention clips stabilize connector to the board during wave soldering.
Plug standoffs are optional with the 3M™ Pak 50 Low Profile Socket, P50L Series, so technicians can offset the mated board by 1.0 - 4.0 mm.
Typical properties
| Application | Board-to-board Connecting |
| Connector Style | Receptacle |
| Contact Base Material | Phosphor Bronze |
| Contact Termination Area Plating Material | Gold Flash |
| Insulation Material | Glass Filled PPS |
| Insulation Resistance | >1x10⁹ Ω @ 500 VDC |
| Mating Option | None |
| Number of Contact Rows | 2 |
| Number of Contacts | 20 , 30 , 40 , 60 , 80 , 100 |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.05 in |
| Pitch (Metric) | 1.27 mm |
| Process Temperature Rating | 260 °C (Per J-STD-020C) |
| Specifications Met | UL 94V-0 |
| Tech Sheet Number | TS-1146 |
