3M™ Ultra Hard Metric (UHM) Press-Fit Socket, UHM Series

3M ID B00046516

7+ Gbps data rates when mated to standard IEC 61076-4-101 headers.

Low crosstalk at high frequencies

50/100 Ω (single-ended/differential) impedance

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 1MB)

Find a part

Details

Highlights

7+ Gbps data rates when mated to standard IEC 61076-4-101 headers
Low crosstalk at high frequencies
50/100 Ω (single-ended/differential) impedance
Modular/scalable format IEC 61076-4-101
Press-fit headers and receptacles
101 mated lines per linear inch
Dual beam contact construction for high reliability
End-to-end stackable with 8-Row 3M™ CP2, HM, UHM and HSHM Sockets
Mates with 3M™ CP2, HM, UHM, HSHM Headers
See Regulatory Information Appendix link for chemical compliance information
For more information, refer to Data Sheet TS2326 (TS-2326)

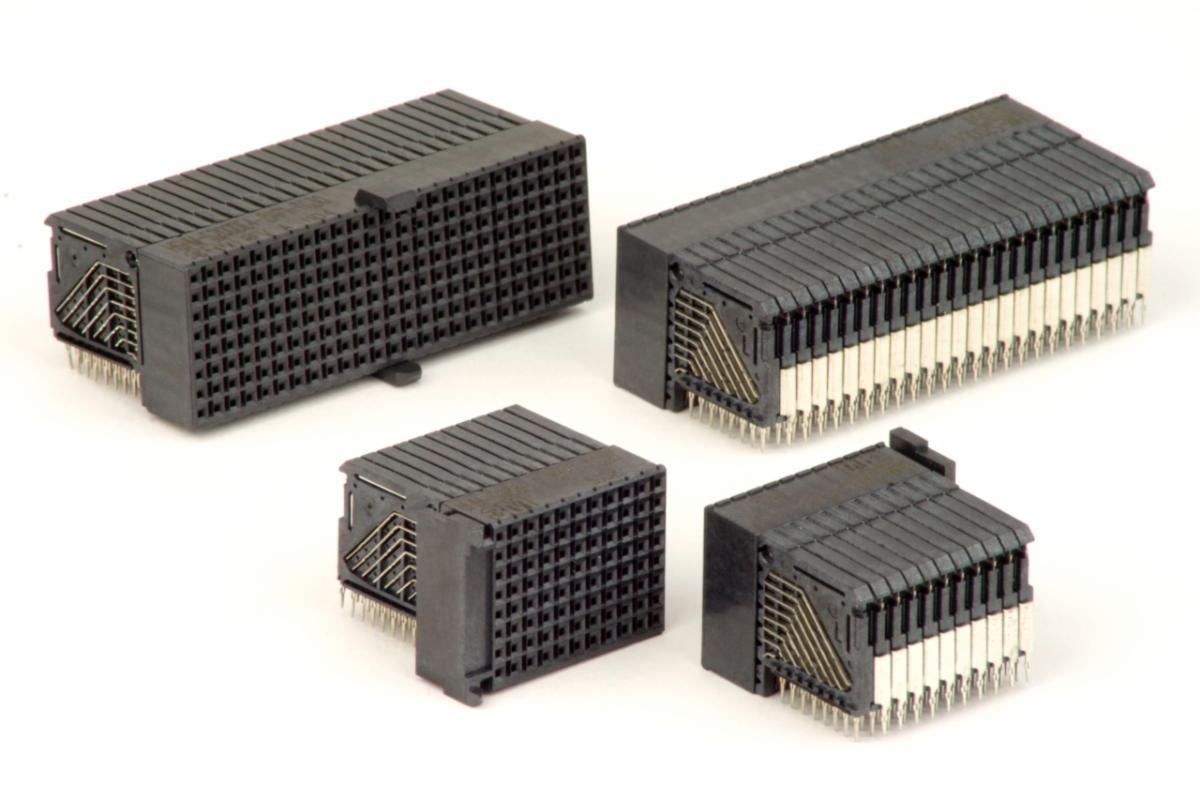

3M™ Ultra Hard Metric (UHM) Press-Fit Socket is a 2mm Ultra Hard Metric, B-type connector. It is end-to-end stackable with 5 row 3M(TM) CP2, HM, UHM and HSHM Sockets. It can run up to 7+ Gbps data rates when mated to standard IEC 61076-4-101 headers offering low crosstalk at high frequencies.

Typical properties

Details

Tech Sheet Number	TS-2326

Resources

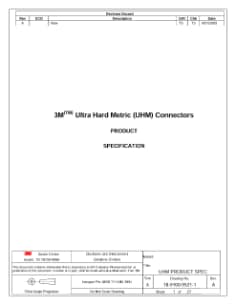

3M(TM) Ultra Hard Metric (UHM) Connectors

3M™ Ultra Hard Metric (UHM) Connectors

Data Sheets

(PDF, 1MB)

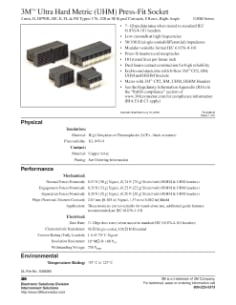

3M(TM) Ultra Hard Metric (UHM) Press-Fit Socket, TS2326
