3M™ Mini Delta Ribbon (MDR) Connectors, 102 Series
- 3M ID B00046116
Details
Highlights
- Wiper-on-wiper contact for reliable repetitive plugging
- Ground lock PCB retention
- Interface latch design for connection stability
- 36 contacts
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information

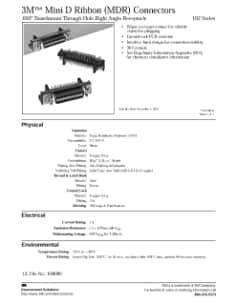

- For more information, refer to Data Sheet TS0790 (TS-0790)

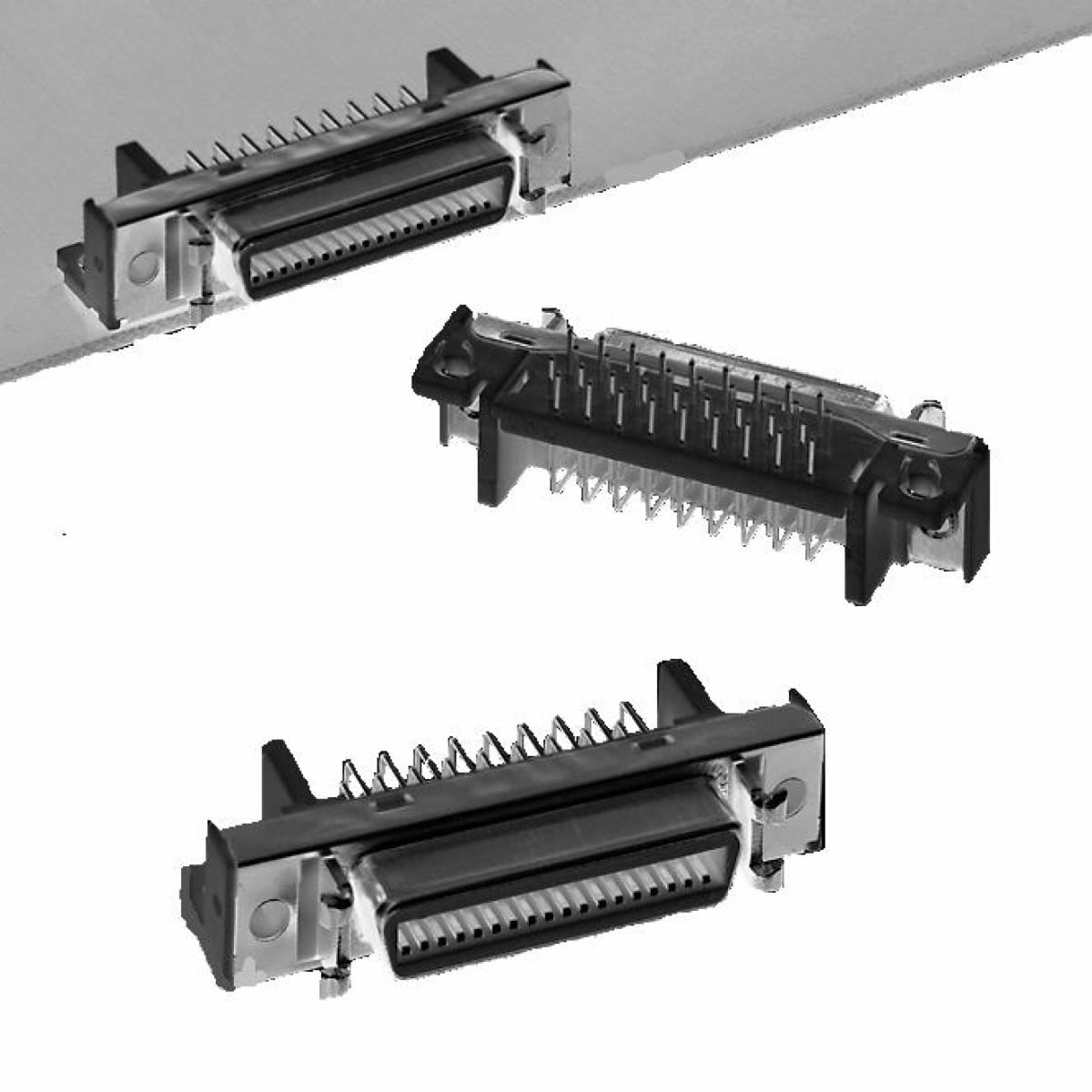

Boardmount Receptacle, Through-hole, Right Angle, Non-Shielded
Typical properties
| Application | Connection Stability, EMI Shielding, High-density Mounting, Repetitive Mating & Unmating |
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Contact Underplating Material | Nickel |
| Current Rating | 1.0 A |
| Features | PCB Retention |
| Insulation Material | Glass Filled Polyester (PBT) |
| Markings | 3M Logo and Part Number |
| Mating Contact Finish Material | Gold |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉ |
| Mounting Type | Boardmount |
| Number of Contact Rows | 2 |
| Number of Contacts | 36 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Pitch (Imperial) | 0.05 in |
| Pitch (Metric) | 1.27 mm |
| Product Usage | Electronic Devices, Boardmount |
| Shell Material | Steel |
| Shell Plating | Nickel |
| Tech Sheet Number | TS-0790 |
| Termination Method | Solder |
Resources
Data Sheets
(PDF, 485KB)
