3M™ Shielded Compact Ribbon (SCR) Connectors 363 Series
- 3M Product Number 363 Series
- 3M ID B00046113
- UPC 04547452747856
Details
Highlights
- Complete shell kit for 3M™ Shielded Compact Ribbon (SCR) Wiremount Plug
- 360-degree shielding for excellent electromagnetic intereference (EMI) protection
- Quick-release latch system for connection security and ease of use
- Integrated strain-relieving cable clamp

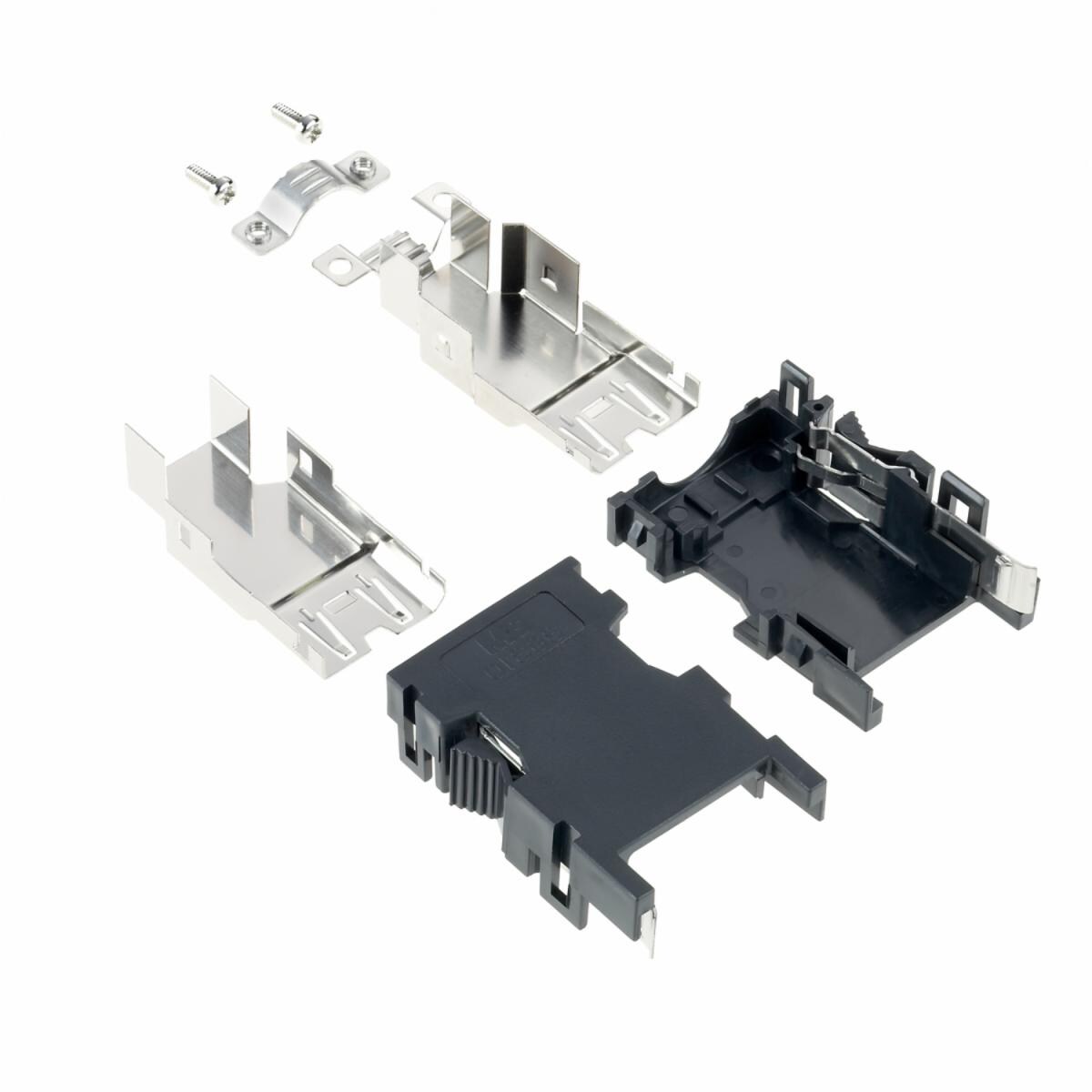

- Includes outer body, inner shell, cable clamp, screws and latches
3M™ Shielded Compact Ribbon (SCR) Connectors 363 Series, is a high-quality solution for your wiremount plug needs. This complete SCR shell kit provides excellent electromagentic interference (EMI) protection with its 360-degree shielding, helping ensure reliable performance.
The quick-release latch system on 3M™ Shielded Compact Ribbon (SCR) Connectors 363 Series offers secure connections and easy handling. This shell kit is designed for durability and ease of use. With the integrated strain-relieving cable clamp, you can easily manage your cables to prevent strain and damage.
Typical properties
| Connector Style | Receptacle, Plug |
| Contact Base Material | Copper Alloy |
| Insulation Material | Glass Filled Polyester (PBT) |
| Mounting Type | Wiremount |
| Number of Contact Rows | 2 |
| Number of Contacts | 10 |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 2 mm |
| Product Color | Black |

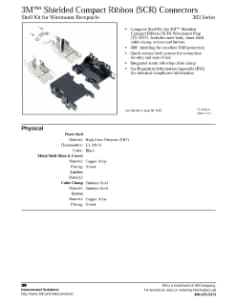

| Tech Sheet Number | TS-2226, TS-2228 |
