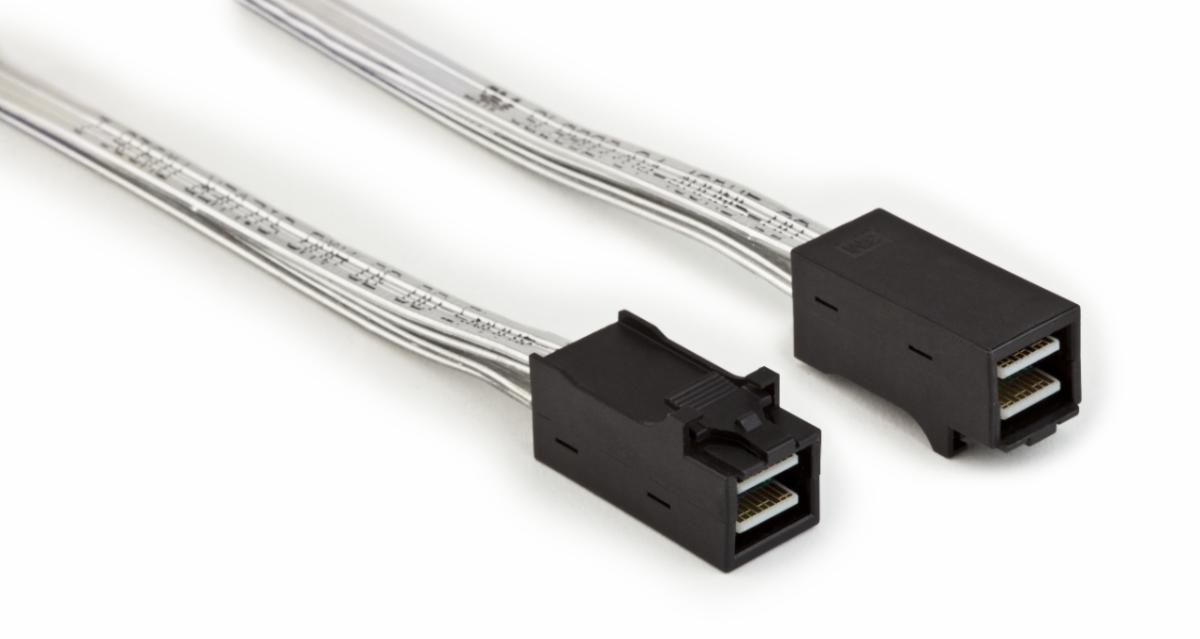

3M™ High-Routability Internal HD MiniSAS Cable Assemblies, 8U Series

HD miniSAS (SFF-8643) form factor provides double the density when compared to 36P miniSAS (SFF-8087)

Thin, low profile allows more routing options within a case, and enables many packaging configurations

Foldable ribbon construction allows for extremely tight bend radii with minimal performance impact

HD miniSAS (SFF-8643) form factor provides double the density when compared to 36P miniSAS (SFF-8087)
Thin, low profile allows more routing options within a case, and enables many packaging configurations
Foldable ribbon construction allows for extremely tight bend radii with minimal performance impact
Designed to meet SAS 2.1 (6 Gbps) and SAS 3.0 (12 Gbps)
Meets or exceeds SFF-8643 Specifications
Ribbon construction
Low profile
For more information refer to Customer Drawing 78-5100-2555-0

Internal HD MiniSAS Cable Assembly

Application	High-speed Data Transmission
Characteristic Impedance	100 ohms
Connector Style (End A)	Plug
Connector Style (End B)	Plug
Connector Type (End A)	ST
Connector Type (End B)	ST
Factory ISO Certification	No ISO Certification information available
Form Factor	MiniSAS HD
Number of Cable Assembly Lanes	x4
Number of Contacts	36
Product Series	8U
Product Usage	Backplane/Midplane, Board-to-board, Mid-board Cables
Protocol	SATA, SAS
Standard Size	0.5 m, 0.75 m, 1.0 m
Tech Sheet Number	TS-2555
Wire Gauge (Imperial)	30 AWG

Overall Length (Imperial)	19.69 in, 39.37 in
Overall Length (Metric)	0.5 m, 1 m

Data Sheets

(PDF, 815KB)

Data Sheets

(PDF, 79KB)
