3M™ Link Connector, 382 Series
- 3M Product Number 382 Series
- 3M ID B00044973
- UPC 04547452450374
Details
Highlights
- Boardmount header that mates with the 3M Link Connector, 381 Series, 2 or 4 position version
- Versatility to mount to a substrate with vertical or right-angle configurations available, Thru Hole, Single Port
- Accepts latch mechanism of Link Connector 381 Series – latching provides a secure connection
- Board retention feature for 1.0mm and 1.6mm thick PCBs for additional mechanical stability
- Compact, unshielded design saves space
- Current rating for 5 Amps
- 2.54mm pitch

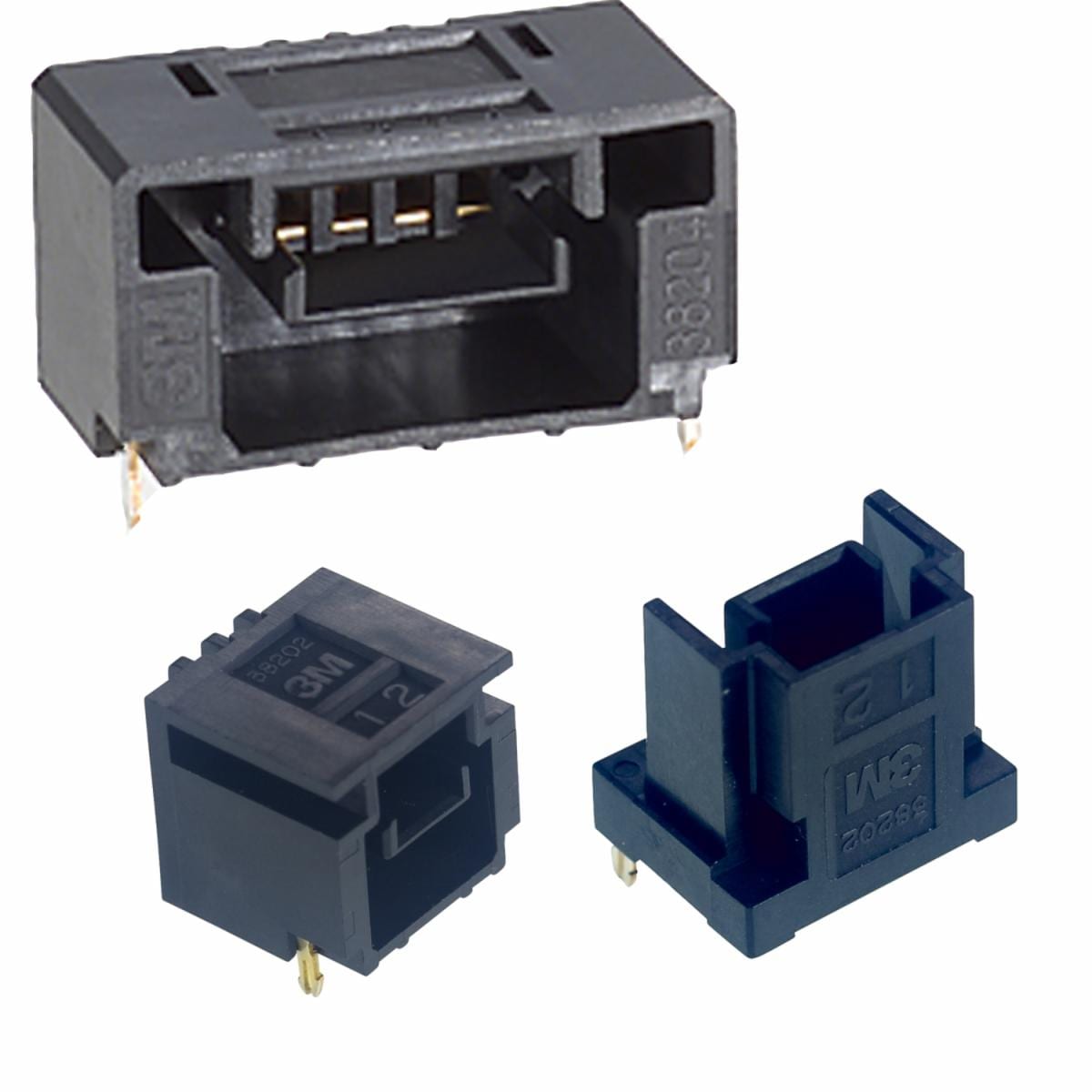

3M™ Link Connector, 382 Series is a boardmount header for connecting Link 381 Series connectors to a PCB. These boardmount connectors have a compact and unshielded design and are available in four variations as right-angle or straight versions. The Link 382 Series boardmount connectors are designed with a latch to mate with the Link 381 Series connectors for a secure connection. Solder retention clips will temporarily hold the connector to the substrate during the solder reflow process for 1.00mm and 1.6mm boards.
Video Player is loading.
Typical properties
| Application | Wire-to-board Connecting |
| Connection Type | Solder |
| Connector Style | Receptacle |
| Insulation Material | Thermoplastic |
| Mounting Type | Boardmount |
| Number of Contact Rows | 1 |
| Number of Contacts | 2 , 4 |
| Pitch (Imperial) | 0.1 in |
| Pitch (Metric) | 2.54 mm |
| Product Color | Black, Light Blue |
| Specifications Met | RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-2099 |
| Termination Method | Solder |
