3M™ Pleated Foil Shielded Cable, 90211 Series
- 3M Product Number 90211 Series
- 3M ID B00039653
- UPC 00051111731802
Details
Highlights
- Excellent for board-to-board applications
- Delivers standard impedance of 75 ohms single ended
- Solid pleated copper foil provides flexibility and 35 db average shielding effectiveness
- Thin (.13 min) TPE cover can address accidental shorting
- Can be used with IDC mass termination connectors
3M™ Pleated Foil Shielded Cable, 90211 Series is a .025, 30 AWG cable featuring solid pleated copper foil and thin TPE covering. This helps keep the cable flexible, yet delivers an average shielding effectiveness of 35 db as well as 75 ohm standard impedance. Excellent for board-to-board applications, the cable features a TPE cover that can address accidental shorting.
Also featuring tin copper conductors and TPE primary insulation, the 3M pleated foil shielded cable 90211 series can be easily mass terminated using with IDC connectors.
Typical properties
| Application | Signal Integrity |
| Cable Type | Shielded |
| Insulation Color | Gray |
| Insulation Material | TPE |
| Jacket Color | Gray |
| Jacket Material | TPE |
| Number of Conductors | 20 , 26 , 36 , 40 , 50 , 68 , 80 , 100 |
| Number of Strands | 1 |
| Pitch (Imperial) | 0.025 in |
| Pitch (Metric) | 0.635 mm |
| Specifications Met | FT1, VW-1, RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-0598 |
| Voltage Rating | 150 V |
| Wire Size | 30 AWG |
Resources

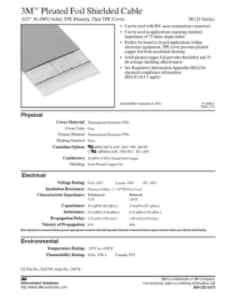

Data Sheets
(PDF, 933KB)
