3M™ Pleated Foil Shielded Cable, 93101 Series
- 3M Product Number 93101 Series
- 3M ID B00039652
- UPC 00051138592332
Details
Highlights
- Delivers <100 psec/m skew when terminated in unbalanced mode with even wire signals (excluding edge conductors)
- Delivers <100 psec/m skew when terminated in the balanced mode when used with ground wires
- Solid pleated foil copper foil and copper foil overlap provide flexibility and 35 db average shielding effectiveness
- TPE primary insulation adds durable layer of conductor protection
- CL2 rated heavy duty PVC jacketing still allows for cable flexiblity
- Can be used with IDC mass termination connectors

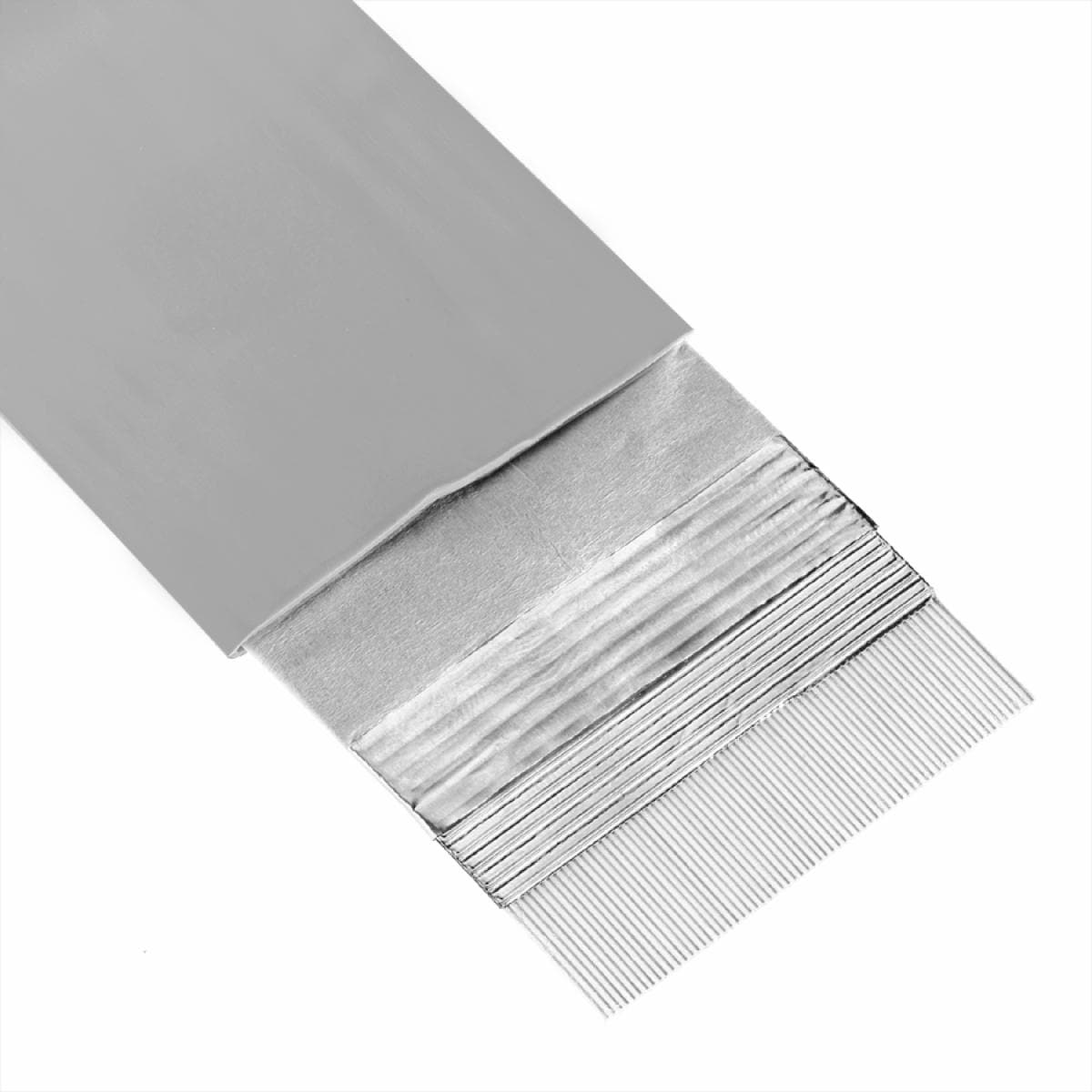

The 3M™ Pleated Foil Shielded Cable, 93101 Series is a flat cable that provides extremely consistent wire signal: it delivers a skew of less than 100 picoseconds/meter when terminated in unbalanced mode, and when terminated in balanced mode with the use of ground wires. The cable features solid pleated copper foil and copper foil overlap that delivers 35 dB average shielding effectiveness.
This durable cable combines TPE primary insulation with CL2 rated heavy-duty PVC jacketing that provides excellent protection and still allows for cable flexibility. 3M pleated foil shielded cable 93101 series can be easily mass terminated using IDC connectors.
Typical properties
| Application | Signal Integrity |
| Cable Type | Shielded |
| Factory ISO Certification | No ISO Certification information available |
| Insulation Color | Translucent White |
| Insulation Material | PVC |
| Jacket Color | Gray |
| Jacket Material | TPE |
| Number of Conductors | 68 , 80 , 100 |
| Number of Strands | 1 |
| Pitch (Imperial) | 0.025 in |
| Pitch (Metric) | 0.635 mm |
| Specifications Met | FT1, NEC 725 (CL2), RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-0876 |
| Wire Size | 30 AWG |
Resources
Data Sheets
(PDF, 787KB)
