3M™ Round, Shielded/Jacketed, Flat Cable, 3659 Series

  • 3M Product Number 3659 Series
  • 3M ID B00039391
  • UPC 50076308627985

Efficient flat-cable IDC termination in an easily routable round cable

For use in a broad range of applications including box-to-box and limited cross-sectional spaces

Round construction makes for easy routing and cable management

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 356KB)

Find a part

spinner


Details

Highlights
  • Efficient flat-cable IDC termination in an easily routable round cable
  • For use in a broad range of applications including box-to-box and limited cross-sectional spaces
  • Round construction makes for easy routing and cable management
  • Twisted flat ribbon configuration allows for mass termination
  • Dual shielding provides 35 db average effectiveness against EMI
  • Primary cable is zippable for branching or discrete terminations
  • Available in continuously bonded wire construction for mass termination on approx. 2.4” centers

3M™ Round, Shielded/Jacketed, Flat Cable, 3659 Series is a 28 AWG stranded wire cable on a .050” pitch, for use in a wide range of applications. It features shielded wires configured into a flat cable for easy termination, then twisted into a round PVC cable for easy routing and cable management. It also helps protect wires from the elements, making it excellent for box-to-box applications. This cable meets external wiring requirements of National Electrical Code, Article 725 (CL2). It is ROHS compliant and UL Listed for USA and Canada.

  • Icon of intersecting waves representing EMI resistance
    EMI Resistance
  • Icon of fast-moving clock representing fast termination
    Fast Termination
  • Icon of a folded cable representing routability
    Routability
  • Icon of arrows expanding on six axes representing versatility
    Versatility

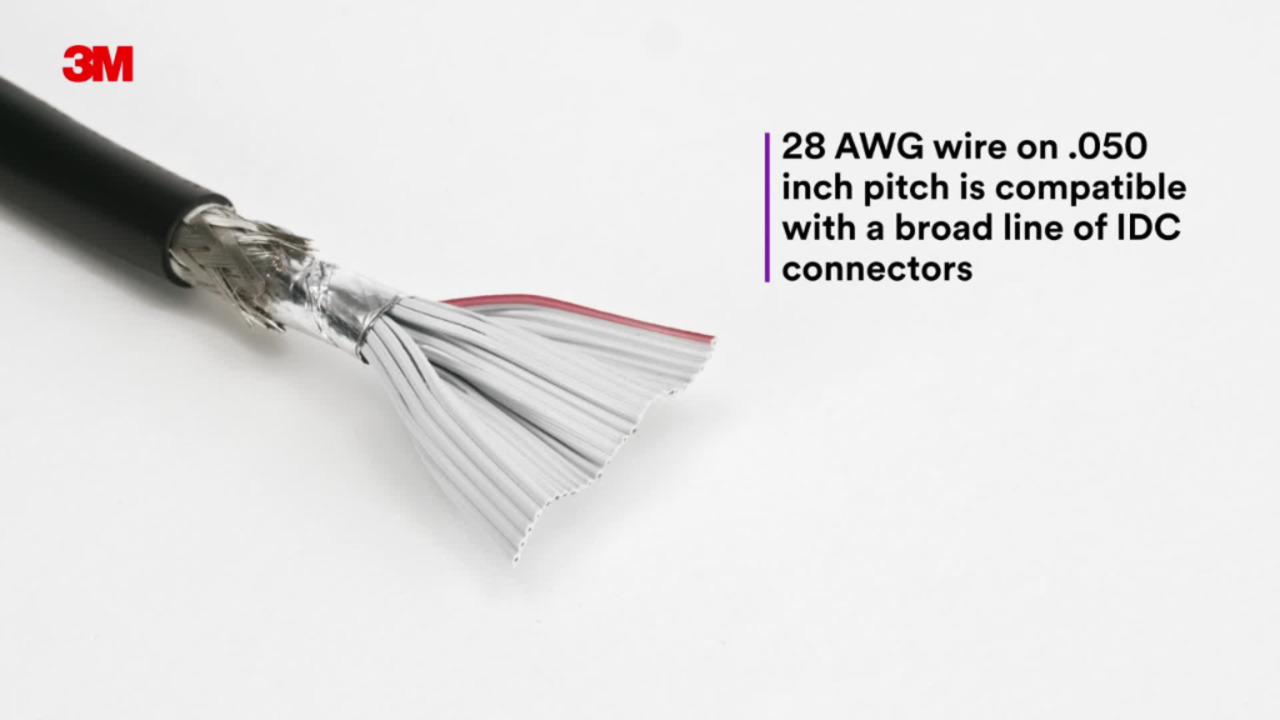

  • Shielding and jacketing stripped back to expose the layers of the round twisted flat cable
