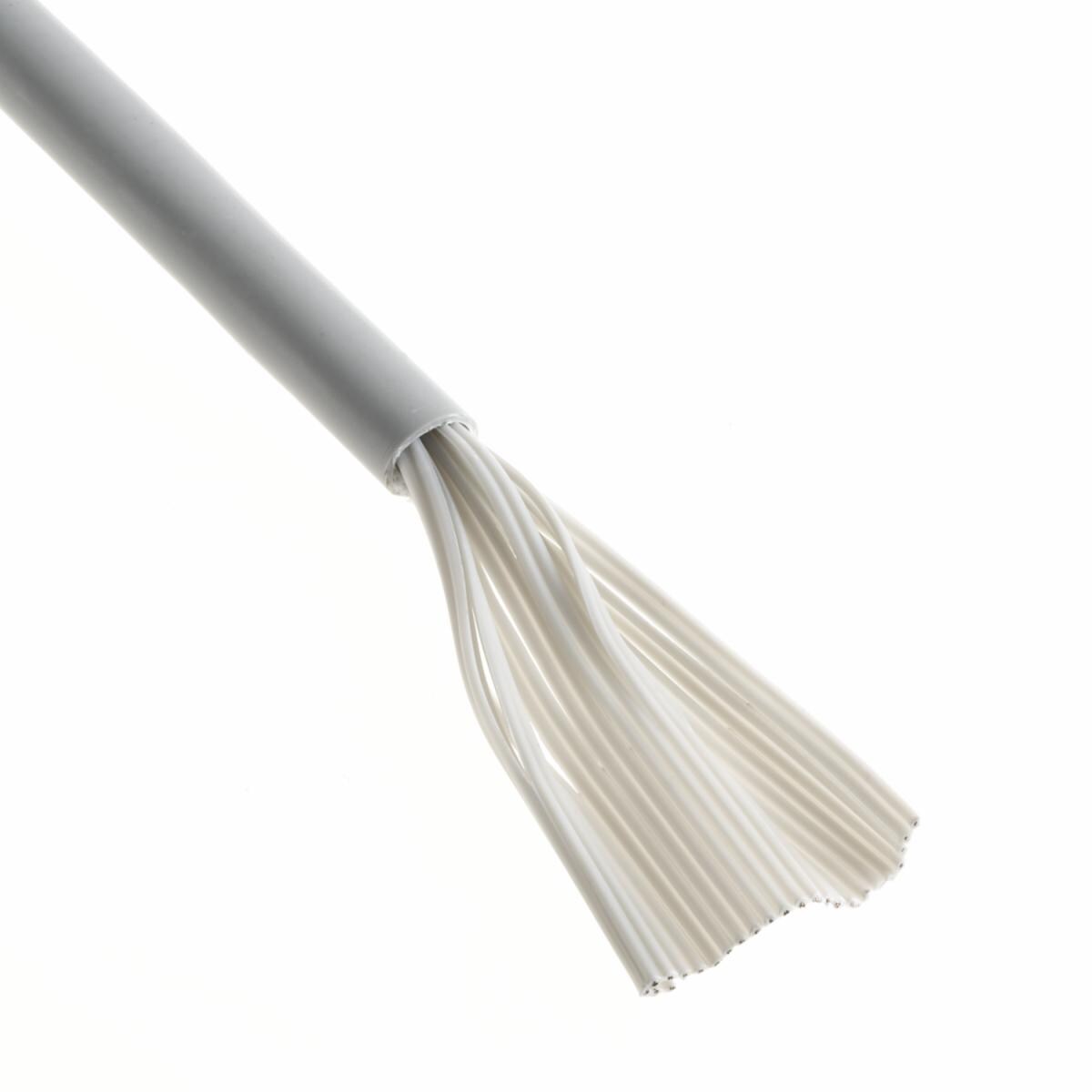

3M™ Round, Jacketed, Flat Cable, HF759 Series

  • 3M Product Number HF759 Series
  • 3M ID B00039385
  • UPC 00051111965047

LSZH insulation helps reduce toxicity of combustion gases in the event of a fire

Round cable construction permits easier routing

Continuous split/bond repeat allows for mass termination of IDC connectors

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 359KB)

Find a part

spinner


Details

Highlights
  • LSZH insulation helps reduce toxicity of combustion gases in the event of a fire
  • Round cable construction permits easier routing
  • Continuous split/bond repeat allows for mass termination of IDC connectors
  • Primary cable is zippable for branching or discrete terminations
  • Features 28 AWG wire on .050 pitch conductors

3M™ Round, Jacketed, Flat Cable, HF759 Series features Low Smoke Zero Halogen (LSZH) insulation, helping reduce toxicity of combustion gases in the event of a fire and minimizing damage to nearby equipment. Its round construction allows for easier routing, and continuous split/bond repeat construction enables mass termination to a broad range of IDC connectors. Zippable primary cable allows for efficient branching and discrete terminations.

Featuring halogen-free polyolefin insulation and jacket material, 3M™ Round, Jacketed, Flat Cable, HF759 Series meets UL 758 specifications as well as fire standards for low smoke (IEC 61034-2:2005) and low toxicity of combustion gases (NF X 70-100-2:2006), reducing soot corrosion damage.

Typical properties

Application

Mass Termination

Factory ISO Certification

No ISO Certification information available

Halogen Free

Yes

Insulation Color

Gray

Insulation Material

Polyolefin

Jacket Color

Gray

Jacket Material

Polyolefin

Number of Conductors

10 , 14 , 15 , 16 , 20 , 24 , 26 , 30 , 34 , 36 , 37 , 40 , 50 , 60 , 64

Number of Strands

7

Pitch (Imperial)

0.025 in

Pitch (Metric)

0.64 mm

Specifications Met

UL 758

Tech Sheet Number

TS-2336

Wire Size

28 AWG

Resources

Regulatory Data Sheet

Document Number: MSDS_3813334_US_EN_RDS

(PDF)
