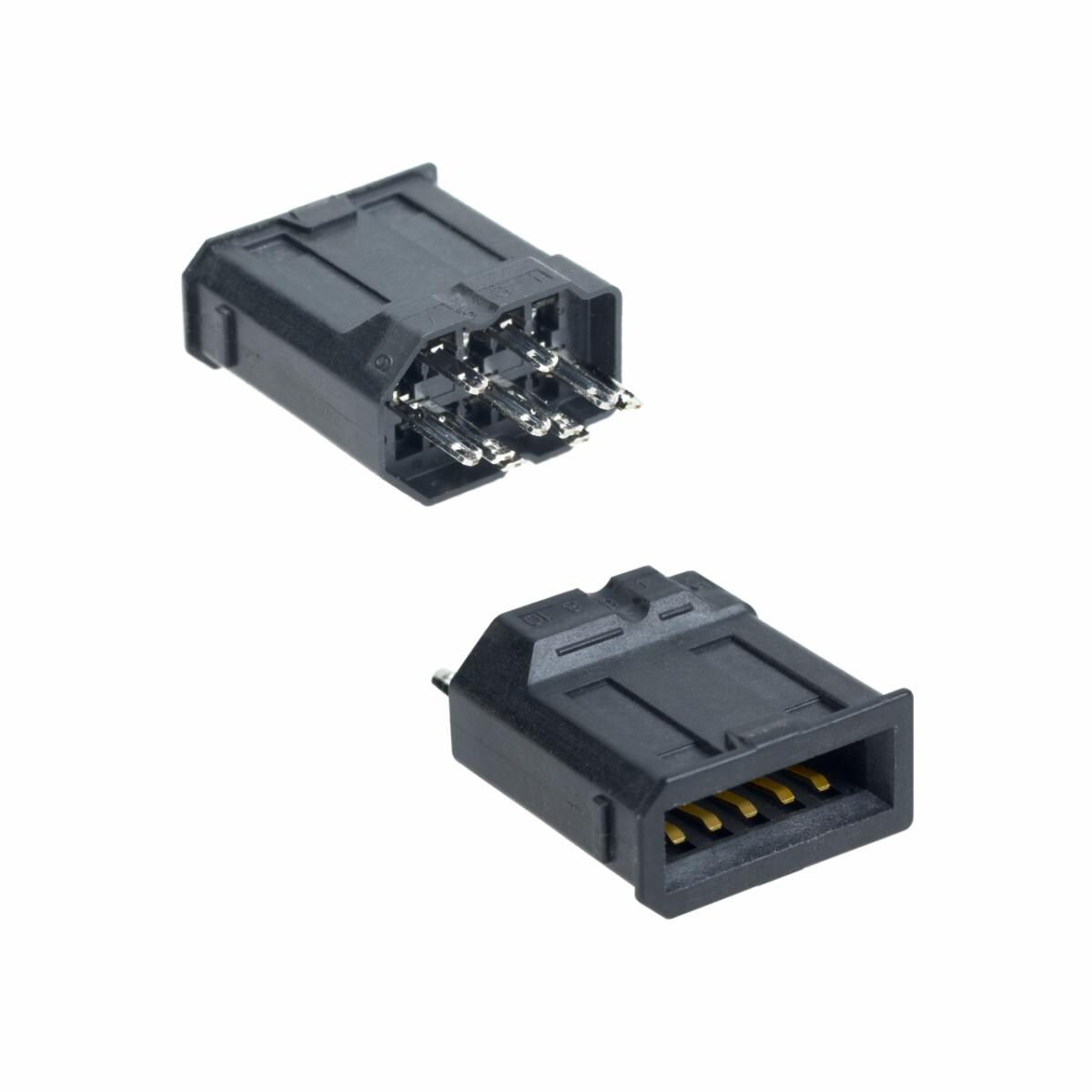

3M™ Shielded Compact Ribbon (SCR) Connectors, 362 Series
- 3M Product Number 362 Series
- 3M ID B00037081
- UPC 04547452747832
Details
Highlights
- Mates to all 3M™ Shielded Compact Ribbon (SCR) Boardmount and Wiremount Plugs
- Polarized to provide proper insertion
- Robust ribbon-style contact for reliable, repetitive plugging
- 10 contacts can carry signal or power (up to 1 amp per pin)
- Vibration resistant
- Solder termination for quick assembly with no dedicated tooling
- Accommodates wire up to size 18 American Wire Gauge (AWG)
The 3M™ Shielded Compact Ribbon (SCR) Connectors, 362 Series, is a reliable and efficient solution for connecting to 3M™ Shielded Compact Ribbon (SCR) Boardmount and Wiremount Plugs. This wiremount receptacle is polarized to ensure proper insertion, and its robust ribbon-style contact guarantees reliable and repetitive plugging. With the capability to carry signal or power up to 1 amp per pin, this pluggable connector assembly is perfect for various applications.
Featuring a vibration-resistant design, 3M™ Shielded Compact Ribbon (SCR) Connectors, 362 Series, help ensure a secure and stable connection. The solder termination allows for quick assembly with no dedicated tooling, and the connectors can accommodate up to size 18 American Wire Gauge (AWG) wire.
Typical properties
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Factory ISO Certification | No ISO Certification information available |
| Insulation Material | Nylon |
| Mounting Type | Wiremount |
| Number of Contact Rows | 2 |
| Number of Contacts | 10 |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 2 mm |
| Product Color | Silver |
| Tech Sheet Number | TS-2227 |
