3M™ Mini Delta Ribbon (MDR), 102XX-M218XE, 102 Series

Wiper-on-wiper contact for reliable repetitive plugging

Rugged die cast metal case construction

Screw lock down for reliable PCB retention

Wiper-on-wiper contact for reliable repetitive plugging
Rugged die cast metal case construction
Screw lock down for reliable PCB retention
Interface latch design for connection stability
Stacked receptacles save board space
Contacts: 40 (2 x 20), 100 (2 x 50) and 136 (2 x 68)
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
For more information refer to Data Sheet TS0671 (TS-0671)

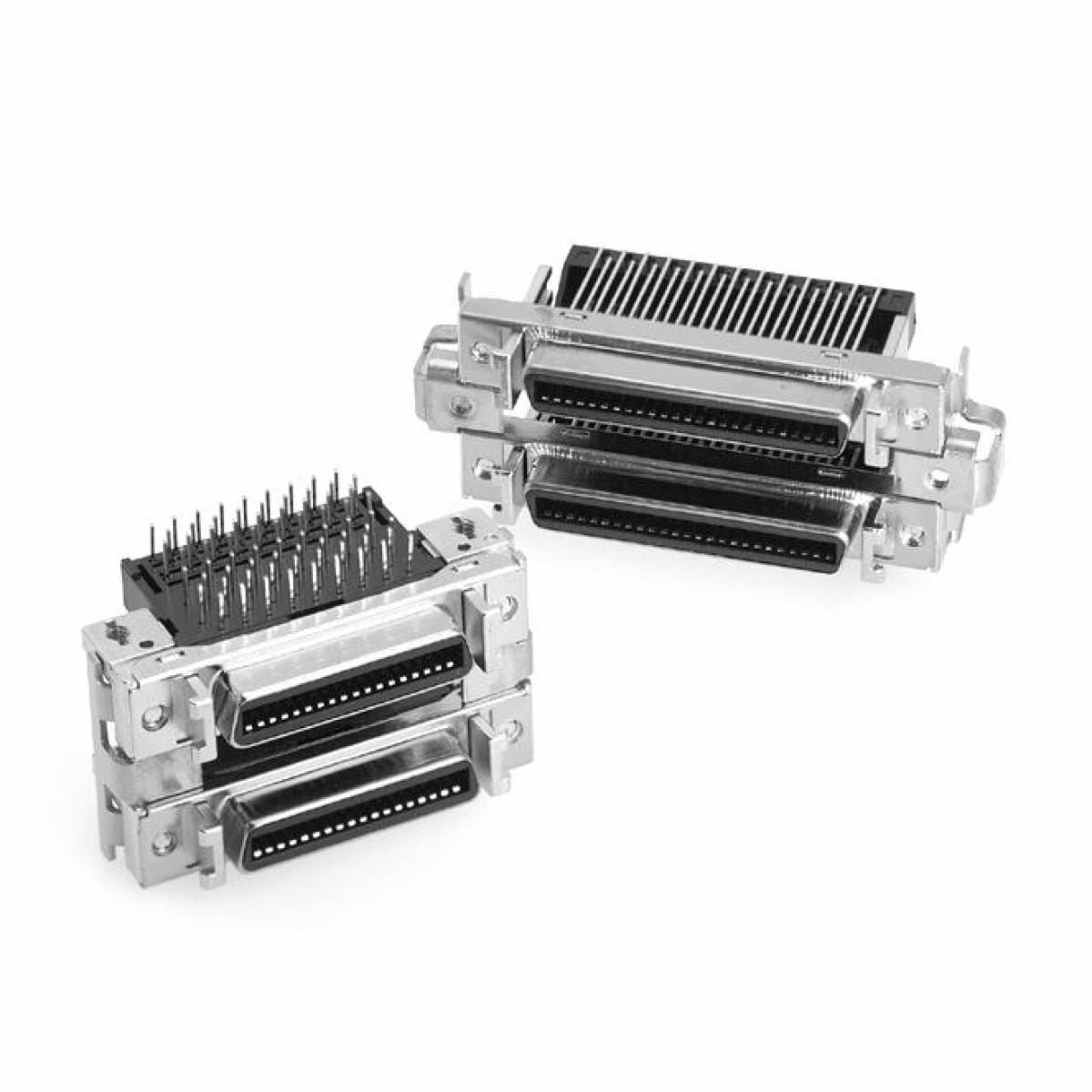

Boardmount Receptacle, Through-hole, Right Angle, Shielded, Condo

Application	Connection Stability, EMI Shielding, High-density Mounting, Repetitive Mating & Unmating
Connector Style	Receptacle
Contact Base Material	Copper Alloy
Contact Underplating Material	Nickel
Contact Underplating Thickness (Imperial)	100 μin
Contact Underplating Thickness (Metric)	2.54 μm
Current Rating	1.0 A
Features	PCB Retention
Insulation Material	Glass Filled Polyester (PBT)
Markings	3M Logo and Part Number
Mating Contact Finish Material	Gold
Mating Contact Finish Thickness (Imperial)	20 μin
Mating Contact Finish Thickness (Metric)	0.5 μm
Maximum Operating Temperature (Celsius)	85 ℃
Maximum Operating Temperature (Fahrenheit)	185 ℉
Minimum Operating Temperature (Celsius)	-55 ℃
Minimum Operating Temperature (Fahrenheit)	-67 ℉
Mounting Type	Boardmount
Number of Contact Rows	2
Number of Contacts	20 , 40 , 100 , 132 , 200
PCB Mounting Angle	Right Angle
PCB Mounting Style	Through Hole
Pitch (Imperial)	0.05 in
Pitch (Metric)	1.27 mm
Product Usage	Electronic Devices, Boardmount
Shell Material	Steel
Shell Plating	Nickel
Specifications Met	China RoHS
Tech Sheet Number	TS-0671
Termination Method	Solder

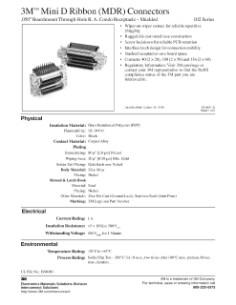

Data Sheets
