3M™ Mini Delta Ribbon (MDR) Connectors, 102 Series

Rugged die-cast body resists tipping during automated soldering operations

Wiper-on-wiper contact for reliable repetitive plugging

Ultra-low signal skew for high data rate transmission

Rugged die-cast body resists tipping during automated soldering operations
Wiper-on-wiper contact for reliable repetitive plugging
Ultra-low signal skew for high data rate transmission
Interface latch design for connection stability
Suitable for thumbscrew attach (see TS-0142 for available hardware)
MDR digital LCD interface as a 20 or 26 contact connector
Camera Link® interface as a 26 contact connector
Contacts: 14, 20, 26, 40 and 50
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information

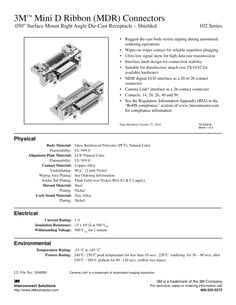

For more information, refer to Data Sheet TS2242 (TS-2242)

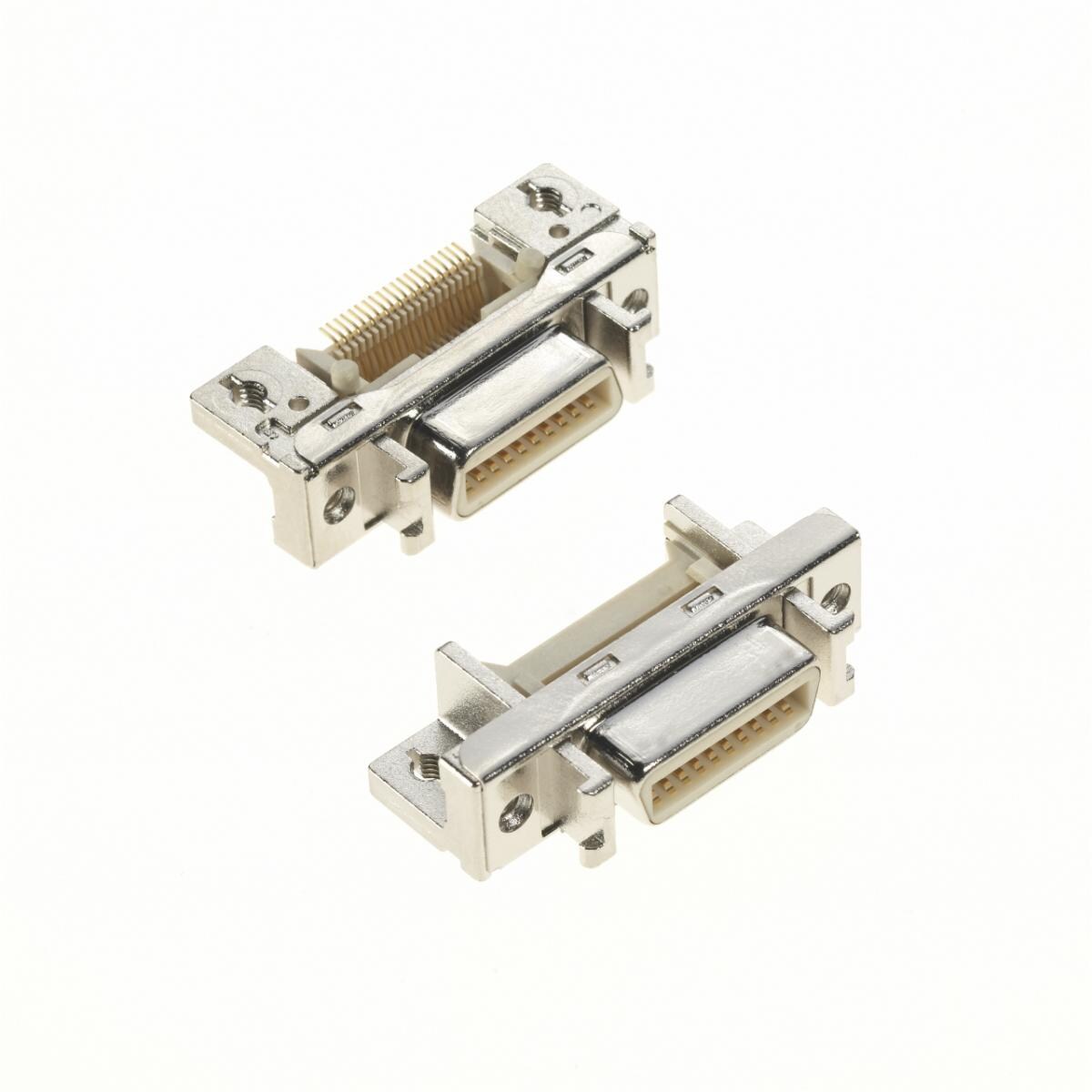

.050" Surface Mount Right Angle Die-Cast Receptacle – Shielded

Application	EMI Shielding, Connection Stability, High-density Mounting, Repetitive Mating & Unmating
Connector Style	Receptacle
Contact Base Material	Copper Alloy
Contact Underplating Material	Nickel
Contact Underplating Thickness (Imperial)	100 μin
Contact Underplating Thickness (Metric)	2.54 μm
Current Rating	1.0 A
Factory ISO Certification	No ISO Certification information available
Features	PCB Retention
Insulation Material	Glass Reinforced Polyester (PCT)
Markings	3M Logo and Part Number
Mating Contact Finish Material	Gold
Mating Contact Finish Thickness (Imperial)	20 μin
Mating Contact Finish Thickness (Metric)	0.5 μm
Maximum Operating Temperature (Celsius)	85 ℃
Maximum Operating Temperature (Fahrenheit)	185 ℉
Minimum Operating Temperature (Celsius)	-55 ℃
Minimum Operating Temperature (Fahrenheit)	-67 ℉
Mounting Type	Boardmount
Number of Contact Rows	2
Number of Contacts	14 , 20 , 26 , 40 , 50
PCB Mounting Angle	Right Angle
PCB Mounting Style	Surface Mount
Pitch (Imperial)	0.05 in
Pitch (Metric)	1.27 mm
Product Usage	Electronic Devices, Boardmount
Shell Material	Steel
Shell Plating	Nickel
Tech Sheet Number	TS-2242
Termination Method	Solder
