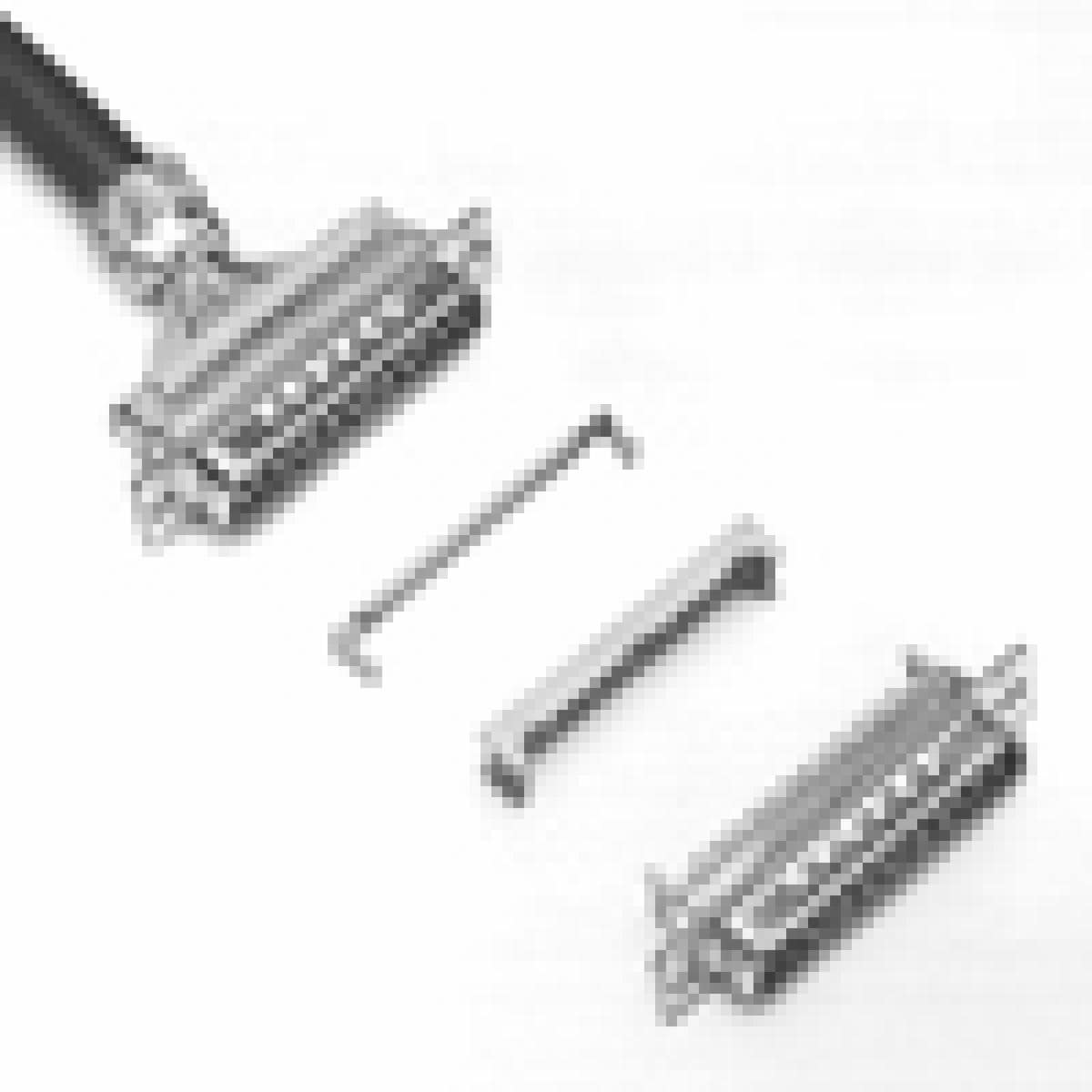

3M™ D Sub Plug, 8200 Series
- 3M Product Number 8200 Series
- 3M ID B00036994
- UPC 00051131122888
Details
Highlights
- Durable dual-row connectors for reliable connections that protect against EMI/ESD
- Available in both open- and closed-end covers for design flexibility
- Dimpled design provides enhanced EMI/ESD protection
- Improved metal strain relief hooks ensure secure attachment to the metal shell
- High-quality construction helps ensure long-lasting durability
- Offers a secure and reliable connection, minimizing the risk of signal loss or disruption
- Versatile design allows for use in various applications and industries
- RoHS compliant
3M™ D Sub Plug, 8200 Series is a versatile and high-quality plug connector available with both open- and closed-end covers, allowing for flexibility in design. The connector also features dimples that provide enhanced EMI/ESD protection, helping ensure reliable performance in demanding environments.
With improved metal strain relief hooks that attach directly to the metal shell, 3M™ D Sub Plug, 8200 Series offers excellent durability and secure connectivity. Its low-profile design and four mounting options make installation easy and convenient. It is Restriction of Hazardous Substances Directive (RoHS) compliant.
Typical properties
| Application | Repetitive Mating & Unmating, High-density Mounting, EMI Shielding, Connection Stability |
| Brands | 3M™ |
| Connector Style | Plug |
| Contact Base Material | Copper Alloy |
| Contact Underplating Material | Nickel |
| Contact Underplating Thickness (Imperial) | ≥50 μin |
| Contact Underplating Thickness (Metric) | ≥2 μm |
| Current Rating | 1.0 A |
| Factory ISO Certification | No ISO Certification information available |
| Features | PCB Retention |
| Insulation Material | Glass Filled Polyester (PBT) |
| Markings | 3M Logo & Contact Position Numbers |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Imperial) | 30 μin |
| Mating Contact Finish Thickness (Metric) | 0.76 μm |
| Maximum Conductor Size (Imperial) | 26 AWG (Solid & Stranded) |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Minimum Conductor Size (Imperial) | 28 AWG (Solid & Stranded) |
| Minimum Operating Temperature (Celsius) | -55 ℃ |
| Minimum Operating Temperature (Fahrenheit) | -67 ℉ |
| Mounting Type | Wiremount |
| Number of Contact Rows | 2 |
| Number of Contacts | 9 , 15 , 25 , 37 , 50 |
| Pitch (Imperial) | 0.109 in |
| Pitch (Metric) | 2.76 mm |
| Product Usage | Electronic Devices, Wiremount |
| Shell Material | Steel |
| Shell Plating | Tin |
| Specifications Met | UL 94V-0, RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-0234 |
| Termination Method | IDC |
