3M™ D Sub Plug, 8250 Series, 8250-7005

  • 3M Product Number 8250 Series
  • 3M ID 7100178281
  • UPC 00638060825266

Insulation-displacement contact (IDC) compatible

Dimples aid in EMI/ESD protection

Lower insertion/withdrawal force than other 50-position products

View more details
Frequently viewed resources

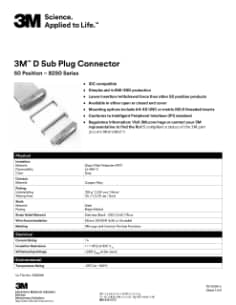

PDF (1) Copy 26Tech Data Sheet (PDF, 420KB)

Find a part

spinner


Details

Highlights
  • Insulation-displacement contact (IDC) compatible
  • Dimples aid in EMI/ESD protection
  • Lower insertion/withdrawal force than other 50-position products
  • Available in either open- or closed-end cover
  • Mounting options include #4-40 Unified National Coarse (UNC) or M2.5 (metric) thread inserts
  • Conforms to Intelligent Peripheral Interface (IPI) standard
  • Restriction of Hazardous Substances Directive (RoHS) compliant

3M™ D Sub Plug, 8250 Series is a 50-position plug connector that offers insulation-displacement contact (IDC) compatibility and features dimples that aid in EMI/ESD protection. With a lower insertion/withdrawal force than other products in its class, this plug provides a hassle-free experience. It is designed for wire-mount applications.

You have the option to choose between an open- or closed-end cover for the 3M™ D Sub Plug, 8250 Series, and the mounting options include #4-40 Unified National Coarse (UNC) or M2.5 (metric) thread inserts. It conforms to the Intelligent Peripheral Interface (IPI) standard and is Restriction of Hazardous Substances Directive (RoHS) compliant.

Typical properties

Application

High-density Mounting, EMI Shielding, Connection Stability, Repetitive Mating & Unmating

Brands

3M™

Connector Style

Plug

Contact Base Material

Copper Alloy

Contact Underplating Material

Nickel

Contact Underplating Thickness (Imperial)

100 μin

Contact Underplating Thickness (Metric)

2.54 μm

Current Rating

1.0 A

Factory ISO Certification

No ISO Certification information available

Features

PCB Retention

Insulation Material

Glass Filled Polyester (PBT)

Markings

3M Logo & Contact Position Numbers

Mating Contact Finish Material

Gold

Mating Contact Finish Thickness (Imperial)

30 μin

Mating Contact Finish Thickness (Metric)

0.76 μm

Maximum Conductor Size (Imperial)

26 AWG (Solid & Stranded)

Maximum Operating Temperature (Celsius)

105 ℃

Maximum Operating Temperature (Fahrenheit)

221 ℉

Minimum Conductor Size (Imperial)

28 AWG (Solid & Stranded)

Minimum Operating Temperature (Celsius)

-55 ℃

Minimum Operating Temperature (Fahrenheit)

-67 ℉

Mounting Type

Wiremount

Number of Contact Rows

3

Number of Contacts

50

Pitch (Imperial)

0.108 in

Pitch (Metric)

2.74 mm

Product Usage

Wiremount, Electronic Devices

Shell Material

Steel

Shell Plating

Nickel

Specifications Met

UL 94V-0

Tech Sheet Number

TS-0035

Termination Method

IDC
