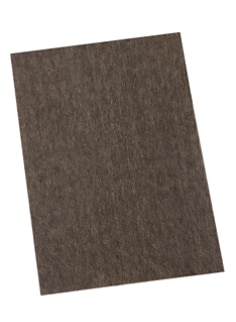

3M™ Electrically Conductive Adhesive Transfer Tape 9712

Options available
| Select product options for IDs.

Isotropic XYZ-axis electrical conductivity

Thicker adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9713

Uses nonwoven carbon fiber scrim (usually leads to higher surface contact resistance than 3M™ XYZ-Axis Electrically Conductive Tape 9713)

Frequently viewed resources

Tech Data Sheet (PDF, 23KB)

Overall Width (Imperial)

Overall Width (Metric)

Select product options

Details

Highlights

Isotropic XYZ-axis electrical conductivity
Thicker adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9713
Uses nonwoven carbon fiber scrim (usually leads to higher surface contact resistance than 3M™ XYZ-Axis Electrically Conductive Tape 9713)
Good contact with both hard and soft surfaces
Excellent die-cutting and converting capabilities
Nonmagnetic
Standard adhesion
No nickel

3M™ Electrically Conductive Adhesive Transfer Tape 9712 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive carbon fiber scrim carrier. It offers a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This tape can be die cut and provides excellent workability, easy handling and has nonmetallic product construction for specialty applications. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Conformability
Nonmagnetic
Thick Adhesive

Product construction

Product usage
3M™ Electrically Conductive Adhesive Transfer Tape 9712 provides good grounding performance in attaching and electrostatic discharge (ESD) applications.

Printed circuit boards

Flexible printed circuits

Chassis

Sensors

Bond line gaps

EMI shields

EMI gaskets

Typical properties

Details

Adhesion Strength (Imperial)	1500 gf/in
Adhesive Type	Acrylic
Application	Electrostatic Discharge (ESD), Grounding, Interconnecting, Attaching
Backing (Carrier) Material	Non-woven
Electrical Resistance	Z-axis 13 Ω, XY-axis 50-70 Ω
Liner Material	PET
Maximum Operating Temperature (Celsius)	121 ℃
Maximum Operating Temperature (Fahrenheit)	250 ℉
Minimum Operating Temperature (Celsius)	-40 ℃
Minimum Operating Temperature (Fahrenheit)	-40 ℉
Product Color	Gray
Product Usage	Chassis, EMI Shields, Bond Line Gaps, Flexible Printed Circuits, Sensors, Printed Circuit Boards, EMI Gaskets
Shelf Life	24 Month
Total Tape Thickness without Liner (Imperial)	5 mil
Total Tape Thickness without Liner (Metric)	0.127 mm

Dimensions and Classifications

Overall Length (Imperial)	36 yd
Overall Length (Metric)	32.918 m
Overall Width (Imperial)	0.25 in, 0.5 in, 1 in
Overall Width (Metric)	6.35 mm, 12.7 mm, 25.4 mm
