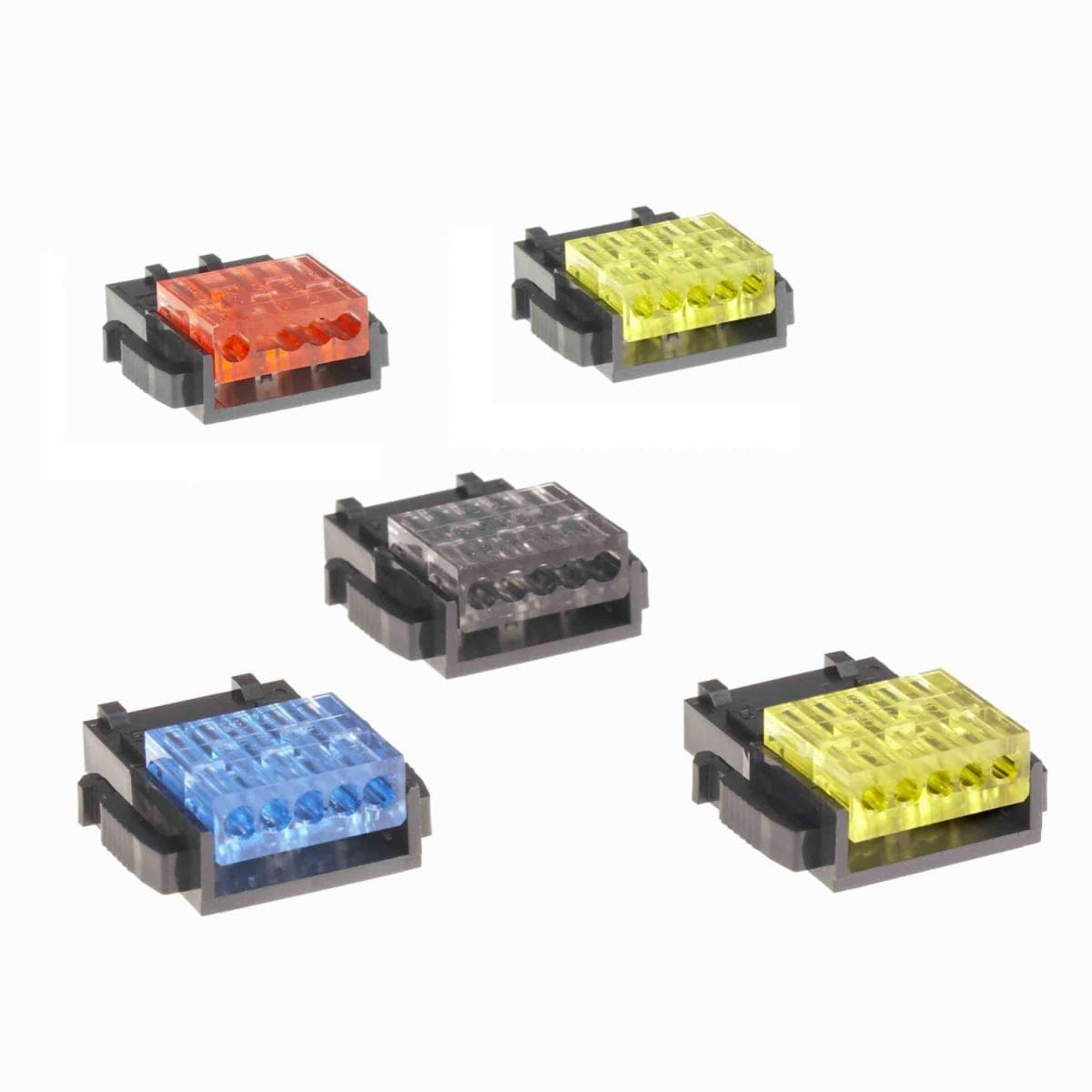

3M™ Power Clamp Wiremount Socket, 355 Series
- 3M Product Number 355 Series
- 3M ID B00036745
- UPC 04519001583567
Details
Highlights
- Quick and reliable Insulation Displacement Contact (IDC) termination for both power and signal applications with no special tool required for assembly
- Transparent cover allows for visual confirmation that wires are properly inserted before IDC termination
- Ensures consistent electrical contact and reduces the risk of wire damage or disconnection
- Supports 250 volts, 10A max. (1 positions) or 7A max. (2 or more positions) for 18 AWG
- Latching mechanism requires only one hand to easily mate and unmate from boardmount headers or panel mount connectors
- Connector polarization ensures proper connecting of mated pairs
- Compatible with CC-Link Communication Interconnect Standard for seamless integration
- Compact, unshielded design with 3.00mm pitch spacing
- Compatible with wire sizes 20-18 AWG
The 3M™ Power Clamp Wiremount Socket, 355 Series is a versatile connective component that uses insulation-displacement contact (IDC) termination technology, making it an easy, labor-saving and reliable wire connection for a variety of power and signal applications. With its easy field termination, the 3M Power Clamp Wiremount Socket, 355 Series requires no special tooling or wire preparation – no stripping or tinning needed. The latching mechanism also ensures a reliable connection, while its polarization feature enables proper interconnecting of mated pairs. 3M Power Clamp Wiremount Socket, 35S Series is compliant with the CC-Link Communication Interconnect Standard for seamless integration.
Reduce wiring time by 80%
3M™ Power Clamp Wiremount Socket’s IDC termination technology helps reduce wiring time by 80% compared to crimp-style connectors* while also helping to reduce waste produced from wire stripping.
-
Better connections all across the system
The 3M™ Power Clamp Wiremount Socket, 355 Series offers a reliable termination solution for incorporating power connections into wire-to-wire and wire-to-board applications. You can create spliced connector networks that allow for unit modularity, keep installation costs low and help reduce waste. A combination power and signal application could include using 3M Power Clamp connectors to connect remote units and sensor networks, often with the addition of 3M Link Connectors, to a power supply using a daisy chain method.
-
-
-
One-touch latching mechanism
This socket features a robust latching mechanism that maintains a reliable connection in demanding field applications and requires only one hand to mate and unmate the plug to boardmount or panel mount connectors for field maintenance ease.
Video Player is loading.
Typical properties
| Application | Wire-to-board Connecting, Wire-to-wire Connecting, Wire Branching, Network Signal Termination |
| Connection Type | IDC |
| Connector Style | Receptacle |
| Factory ISO Certification | No ISO Certification information available |
| Insulation Material | Nylon |
| Maximum Conductor Size (Imperial) | 18 AWG, 20 AWG |
| Maximum Conductor Size (Metric) | 0.5 mm², 0.75 mm² |
| Minimum Conductor Size (Imperial) | 18 AWG, 20 AWG |
| Minimum Conductor Size (Metric) | 0.5 mm², 0.75 mm² |
| Mounting Type | Wiremount |
| Number of Contact Rows | 1 |
| Number of Contacts | 5 |
| Pitch (Imperial) | 0.12 in |
| Pitch (Metric) | 3 mm |
| Product Color | Black, Transparent, Gray, Yellow, Red, Blue |
| Specifications Met | RoHS 2011/65/EU, China RoHS |
| Tech Sheet Number | TS-2273 |
| Termination Method | IDC |
Resources
Data Sheets

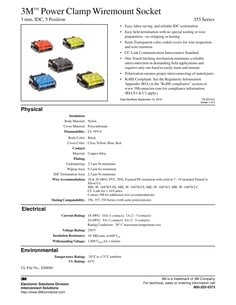

(PDF, 190KB)
Data Sheets

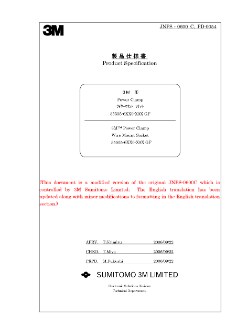

(POSTSCRIPT, 807KB)
