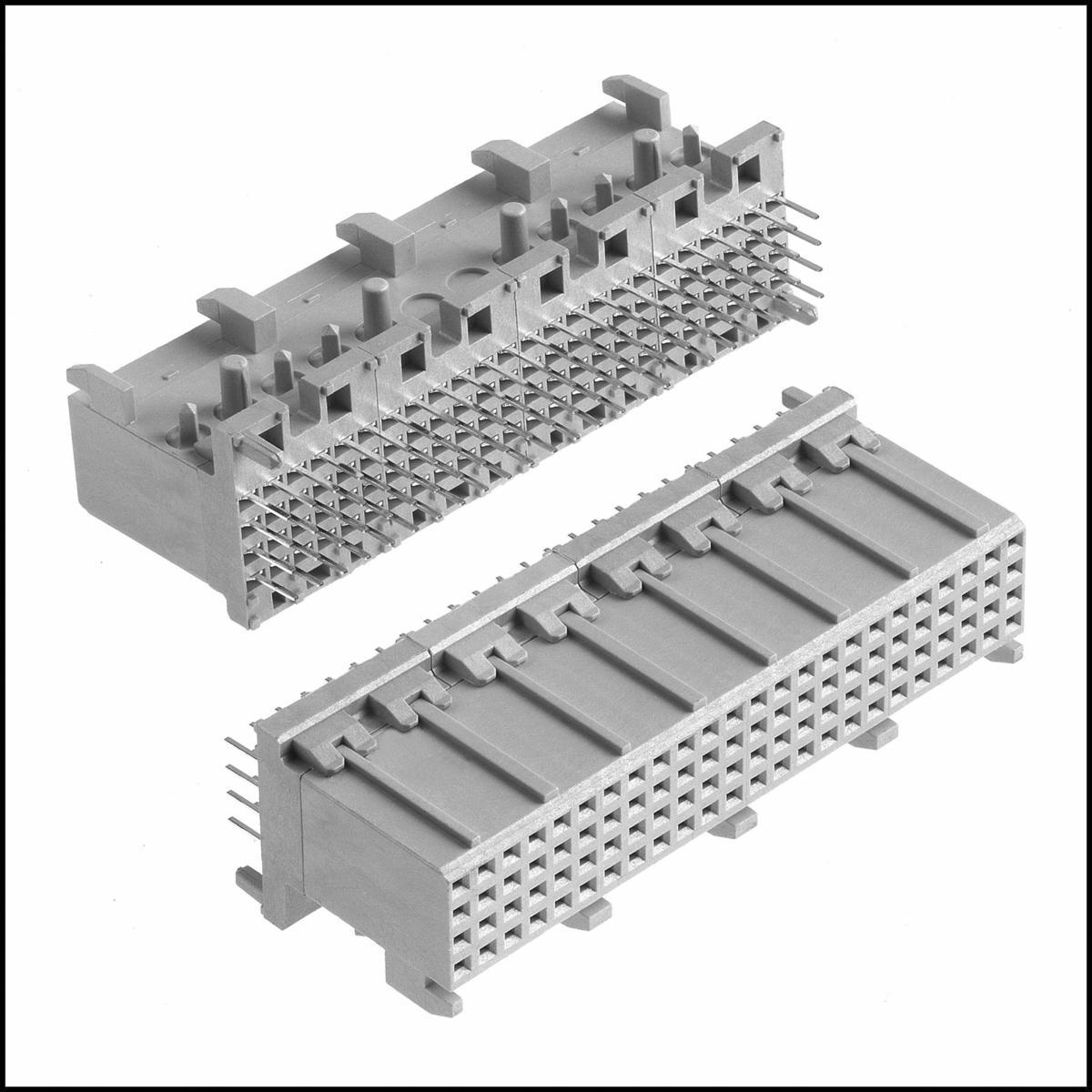

3M™ MetPak™ 2-FB Stacking Socket, MP2 Series
- 3M Product Number MP2 Series
- 3M ID B00036471
- UPC 10051115600538
Details
Highlights
- Excellent for parallel stacking designs with minimal internal cable
- Vertical receptacle for high profile, high pin count applications
- Offset dual-beam contact helps insertion force
- Available with solder or press-fit tails
- Meets IEC 61076-4-104 Futurebus+® global standard
3M™ MetPak™ 2-FB Stacking Socket, MP2 Series is a versatile connector for parallel stacking applications and can help reduce internal cabling. Vertical receptacle connector is available with solder or press-fit tail. It features offset dual-beam contacts to help minimize insertion force.
Excellent for high-profile, high pin-count applications, the 3M MetPak stacking socket MP2 series meets IEC 61076-4-104 Futurebus+® global standards.
Typical properties
| Connector Style | Receptacle |
| Contact Base Material | Phosphor Bronze |
| Contact Underplating | 50 µ" [1.27 µm] Nickel |
| Current Rating | 1.5 A |
| Electrical Current Rating | Signal: 1.5A-All contacts simultaneously |
| Features | Spacer, Stackable, Mating Guide |
| Flammability | UL 94V-0 |
| Insulation Color | Beige |
| Insulation Flammability Rating | UL 94V-0 |
| Insulation Material | High Temperature LCP |
| Insulation Resistance | 10^3 MegaOhms |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Imperial) | 3 µin |
| Mating Contact Finish Thickness (Metric) | 0.076 µm |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Mounting Type | Boardmount |
| Number of Contact Rows | 4 , 5 |
| Number of Contacts | 96 , 150 , 180 |
| Orientation | Vertical |
| PCB Mounting Style | Through Hole |
| Packaged Form | Bulk |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 2 mm |
| Process Rating | 260 Degrees C (per J-STD-020C) |
| Process Temperature Rating | 260 Degrees C (Profile per J-STD-020C) |
| Product Series | MP2 |
| Solder Tails | See Ordering Information |
| Tech Sheet Number | TS-1118 |
| Temperature Rating | -55 Degree C to +125 Degree C |
| Termination Method | Press Fit |
| UnderPlating Material | 50 micro inches [1.27 micro meter] Nickel |
| Wiping Area (Plating) | See Ordering Information |
| Withstanding Voltage | 1000 VAC |
