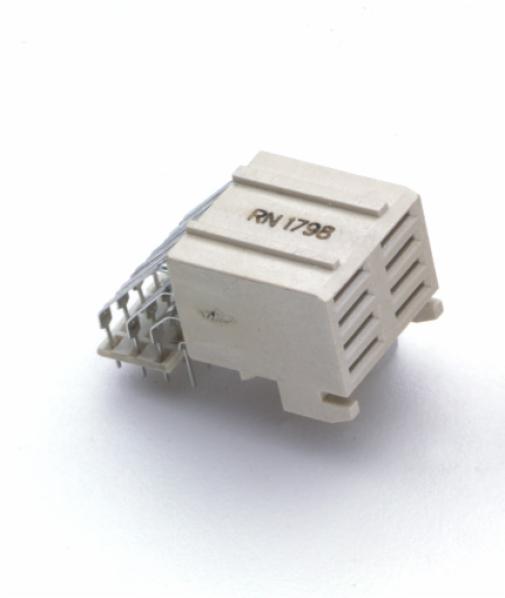

3M™ MetPak™ 2-FB Power Socket, MP2 Series
- 3M Product Number MP2 Series
- 3M ID B00036470
- UPC 00051111744581
Details
Highlights
- Delivers 6.50 amps per contact
- High-temp liquid crystal polymer construction
- Press or heat stake peg solder tail adds stability
- End-to-end stackable in 12 mm modules
- Compatible with the global IEC 61076-4-104 Futurebus+® standard
3M™ MetPak™ 2-FB Power Socket, MP2 Series is a robust, high-temp connector that delivers 6.50 amps per contact and features a press or heat stake peg for stability. This socket features 2 mm 4/5-row spacing for solder or press-fit tail applications. It is end-to-end stackable for efficient use of board space.
Compatible with the global IEC 61076-4-104 Futurebus+® standard, the 3M Metpak™ socket MP2 series is a right-angle connector with a 2 mm pitch.
Typical properties
| Connector Style | Receptacle |
| Contact Base Material | Copper Alloy |
| Current Rating | 1.5 A |
| Features | Board Guide, Board Lock, Spacer |
| Flammability | UL 94V-0 |
| Insulation Color | Beige |
| Insulation Material | High Temperature LCP |
| Insulation Resistance | 10^3 MegaOhms |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Imperial) | 3 µin, 30 µin |
| Mating Contact Finish Thickness (Metric) | 0.076 µm, 0.76 µm |
| Moisture Sensitivity Level | 1 (Per J-STD-020C) |
| Mounting Type | Boardmount |
| Number of Contact Rows | 4 , 5 |
| Number of Contacts | 8 , 10 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Packaged Form | Tube, Bulk |
| Pitch (Imperial) | 0.079 in |
| Pitch (Metric) | 2 mm |
| Process Temperature Rating | 260 Degrees C (Profile per J-STD-020C) |
| Product Series | MP2 |
| Solder Tails | See Ordering Information |
| Tech Sheet Number | TS-1125 |
| Temperature Rating | -55 Degree C to +125 Degree C |
| Termination Method | Solder, Press Fit |
| UnderPlating Material | 50 micro inches [1.27 micro meter] Nickel |
| Wiping Area (Plating) | See Ordering Information |
| Withstanding Voltage | 1,500 VAC for 60 seconds |
