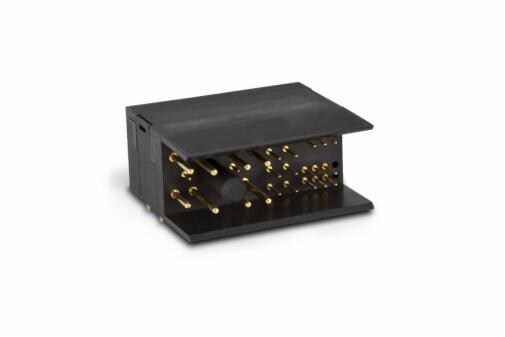

3M™ Power Right Angle Male Connector for ATCA™ Applications, 2P01-0200-ES
- 3M ID 7010500436
- UPC 00051115584343
Details
Highlights
- ATCA Zone 1 connector for power distribution
- Backplane right angle header and daughtercard vertical socket add modularity
- Precision formed compliant pin offers excellent retention
- High conductivity, precision formed contacts help maximize transmission
- Compliant to PICMG 3.0 R2.0 (AdvancedTCA™) specification
The 3M™ Power Right Angle Male Connector for ATCA Applications is a power connector for ATCA Zone 1 applications. Excellent for power distribution in electrical designs, this connector features a backplane right angle header and a daughtercard vertical socket for modularity, design flexibility and ease of assembly.
Selective plating includes precision-formed high conductivity contacts and compliant pins for excellent retention and power transmission. The 3M power connector for ATCA applications is compliant with PICMG 3.0 R2.0 (AdvancedTCA™) specification.
Typical properties
| Brands | 3M™ |
| Connector Style | Pin Header |
| Factory ISO Certification | No ISO Certification information available |
| Features | Board Guide, Guide Pin |
| Mating Contact Finish Material | Gold |
| Mating Contact Finish Thickness (Imperial) | 30 µin |
| Mating Contact Finish Thickness (Metric) | 0.76 µm |
| Mounting Type | Boardmount |
| Number of Contacts | 34 |
| PCB Mounting Angle | Right Angle |
| PCB Mounting Style | Through Hole |
| Packaged Form | Tray |
| Product Series | 2P01 |
| Tech Sheet Number | TS-2376 |
| Termination Method | Press Fit |
Resources
Data Sheets
(PDF, 185KB)
