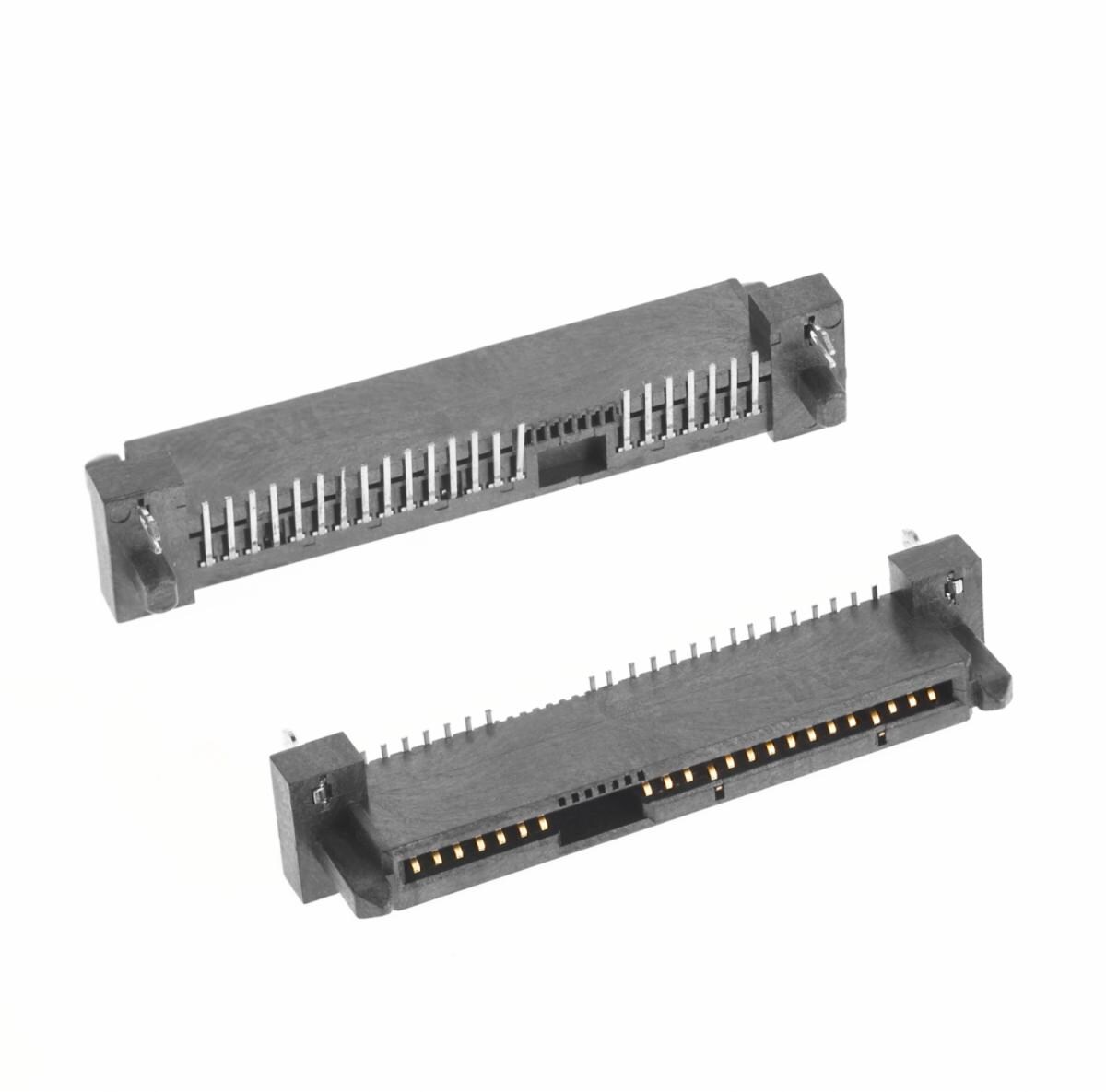

3M™ Serial Attached SCSI (SAS) Connector, SBR-ST-22-M-XX, SBR Series

6 Gbps input/output connector for backplane applications

Two contact mating levels for early-mate and late-break allows "blind mating" or "hot swap" applications

Capable of accepting HDD fitted with SAS or Serial Advanced Technology Attachment (SATA) Header

6 Gbps input/output connector for backplane applications
Two contact mating levels for early-mate and late-break allows "blind mating" or "hot swap" applications
Capable of accepting HDD fitted with SAS or Serial Advanced Technology Attachment (SATA) Header
Compatible with drives compliant to SFF-8223, SFF-8323, and SFF-8523
Meets SAS Specification, SAS-2.0
Compliant to SFF-8482 Rev 2.2
See Regulatory Information Appendix link for chemical compliance information
For more information refer to Data Sheet TS2205 (TS-2205)

Boardmount Surfacemount, Vertical Receptacle, 22 Pin
