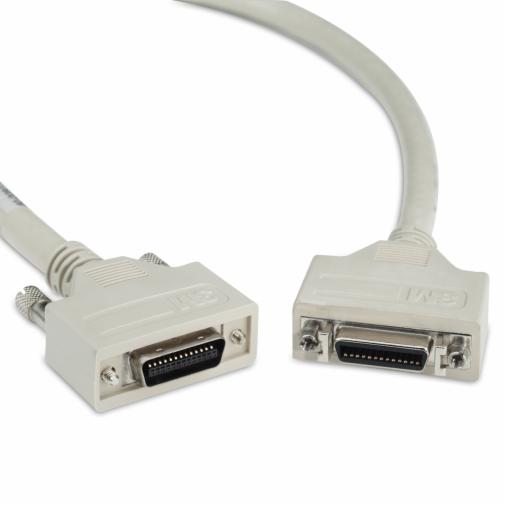

3M™ Mini Delta Ribbon (MDR) Cable Assembly, 1W226-TZLB-XXX-0LC
- 3M ID B00035676
- UPC 00051135219348
Details
Highlights
- Supports LVDS Channel Link™ signaling
- Supports Camera Link® Specification V1.0
- 11 shielded pairs (100 ohm) +4 grounds for high bandwidth applications
- High density 26 position MDR with rugged ribbon type contact
- Overmolded backshell
- Thumbscrew latching options
- Used for bulkhead connection, or rack IO panel connection
- Used to extend the length of a standard Camera Link® cable assembly
- RoHS compliant
- For more information refer to Data Sheet TS2106 (TS-2106)
.050" High Speed Digital Data Transmission , 26 male to 26 pos female, .5 to 10 meters
Typical properties
| Cable Length (Imperial) | 0.82 ft, 1.64 ft, 3.281 ft, 8.202 ft, 9.843 ft, 16.404 ft |
| Cable Length (Metric) | 0.25 m, 0.5 m, 1 m, 2.5 m, 3 m, 5 m |
| Current Rating | 1.0 A |
| Jacket Material | PVC |
| Number of Positions | 26 |
| Shell Material | ABS |
| Specifications Met | AWM VW-1 |
| Tech Sheet Number | TS-2106 |
Resources
Data Sheets
(PDF, 122KB)
