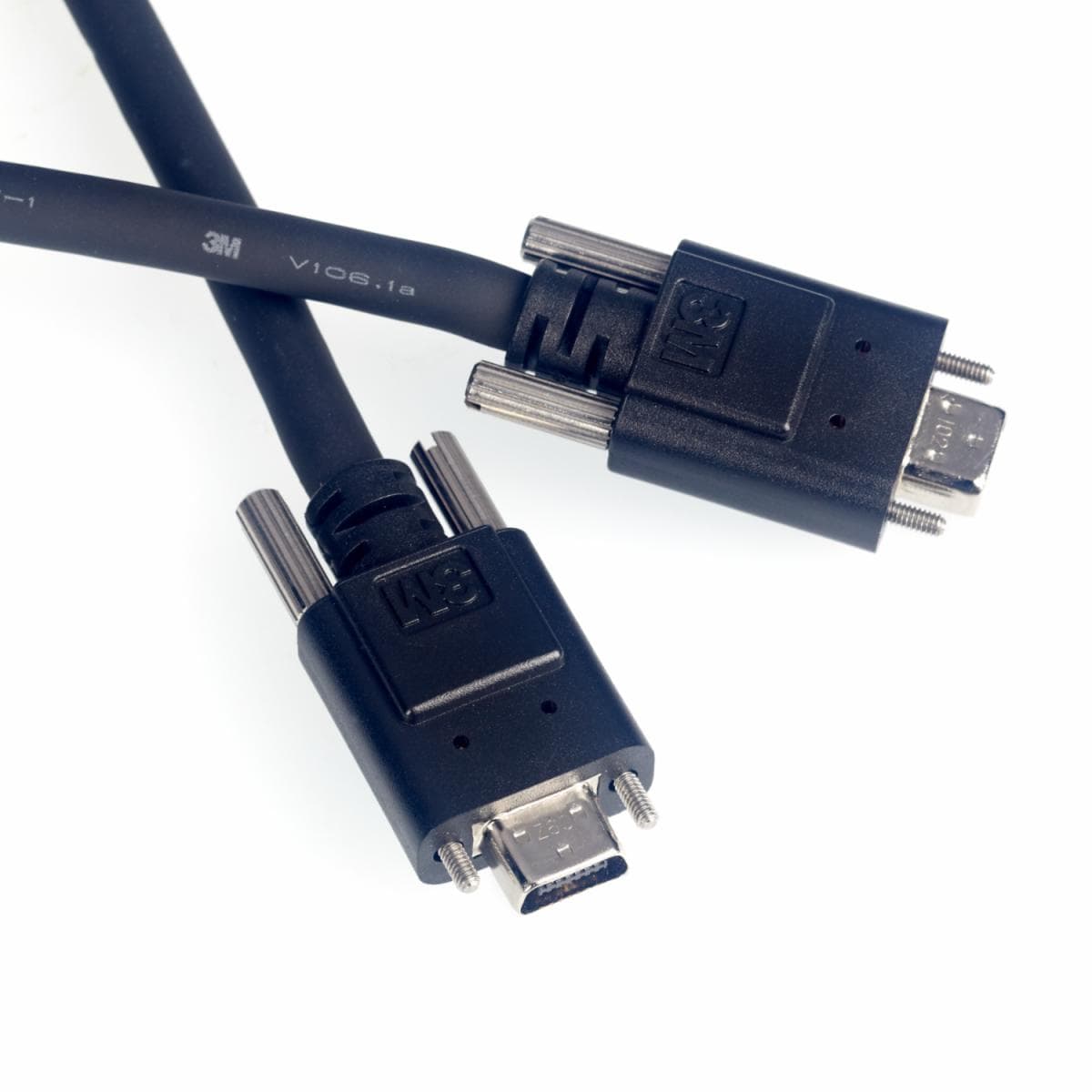

  7. 3M™ Shrunk Delta Ribbon (SDR) Cable Assembly, 1SD14-3120-0CC-xxx, for Power over Camera Link(R) (PoCL) Lite Applications

3M™ Shrunk Delta Ribbon (SDR) Cable Assembly, 1SD14-3120-0CC-xxx, for Power over Camera Link(R) (PoCL) Lite Applications

  • 3M ID B00035666

Carries power in addition to signal to enable use in Power over Camera Link(R) (PoCL) Lite applications

Connects to PoCL Lite style (14-pin SDR) I/O ports on both PoCL Lite camera and PoCL Lite framegrabber

Both straight and right angle overmolded cable exit available

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 418KB)

Find a part

spinner


Details

Highlights
  • Carries power in addition to signal to enable use in Power over Camera Link(R) (PoCL) Lite applications
  • Connects to PoCL Lite style (14-pin SDR) I/O ports on both PoCL Lite camera and PoCL Lite framegrabber
  • Both straight and right angle overmolded cable exit available
  • Five shielded twin axial pairs, two individual insulated wires and two unshielded drain wires
  • Entire cable bundle shielded with foil and braid for additional signal protection
  • Rugged ribbon type contact for reliable, repeatable connectivity
  • Thumbscrew retention
  • EMI shielded end-to-end for reduced emissions
  • For more information refer to Customer Drawing 78-5100-2431-4

Straight to Straight

Typical properties

Tech Sheet Number

TS-2431
