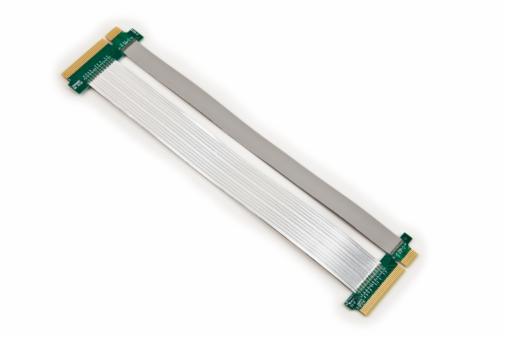

3M™ Twin Axial Cable Assembly for PCI Express x16 Jumper Applications
- 3M ID B00035501
- UPC 08887862035966
Details
Highlights
- PCI Express x16 adds flexibility to meet high-speed data transfer demands
- Allows for expanded placement of peripheral components with less concern for heat or reduced performance
- Allows for replacement of PCB traces with high-performance, low-loss twin axial cable
- Meets PCIe® 3.0 standard for data transfer
- Customized connection lengths are available
- Foldable, flexible cable can be incorporated into various PC and server configurations
- Continuous longitudinal shielding virtually eliminates signal loss even when folded
The 3M™ Twin Axial Cable Assembly for PCI Express x16 Jumper Applications adds design possibilities and expands capabilities for demanding high-speed applications with less concern for heat or performance degradation. It meets PCIe® 2.0 and PCIe 3.0 standards for high-speed data transmission to 128 Gbps (16 lanes at 8 Gbps per lane). It is excellent for applications such as mid-board, riser cables, and for board-to-board connections.
Featuring advanced 3M™ Twin Axial Cable technology, 3M™ Twin Axial Cable Assembly for PCI Express x16 Jumper Applications incorporates foldable, flexible flat twinax cable that can be folded back on itself for compact designs. Precision-formed, continuously laminated shielding helps maintain resonance-free signal integrity.
Typical properties
| Application | High-speed Data Transmission |
| Characteristic Impedance | 85 ohms |
| Connector Style (End A) | Edgecard |
| Connector Style (End B) | Edgecard |
| Connector Type (End A) | ST |
| Connector Type (End B) | ST |
| Form Factor | PCIe© Card Edge |
| Number of Cable Assembly Lanes | x16 |
| Number of Contacts | 164 |
| Product Series | 8KC5 |
| Product Usage | Riser Cables, Mid-board Cables, Board-to-board |
| Protocol | PCIe© |
| Standard Size | 0.25 m, 0.5 m |
| Tech Sheet Number | TS-2586 |
| Wire Gauge (Imperial) | 30 AWG |
| Overall Length (Imperial) | 6.5 in, 9.84 in, 19.69 in |
| Overall Length (Metric) | 165 mm, 250 mm, 500 mm |
