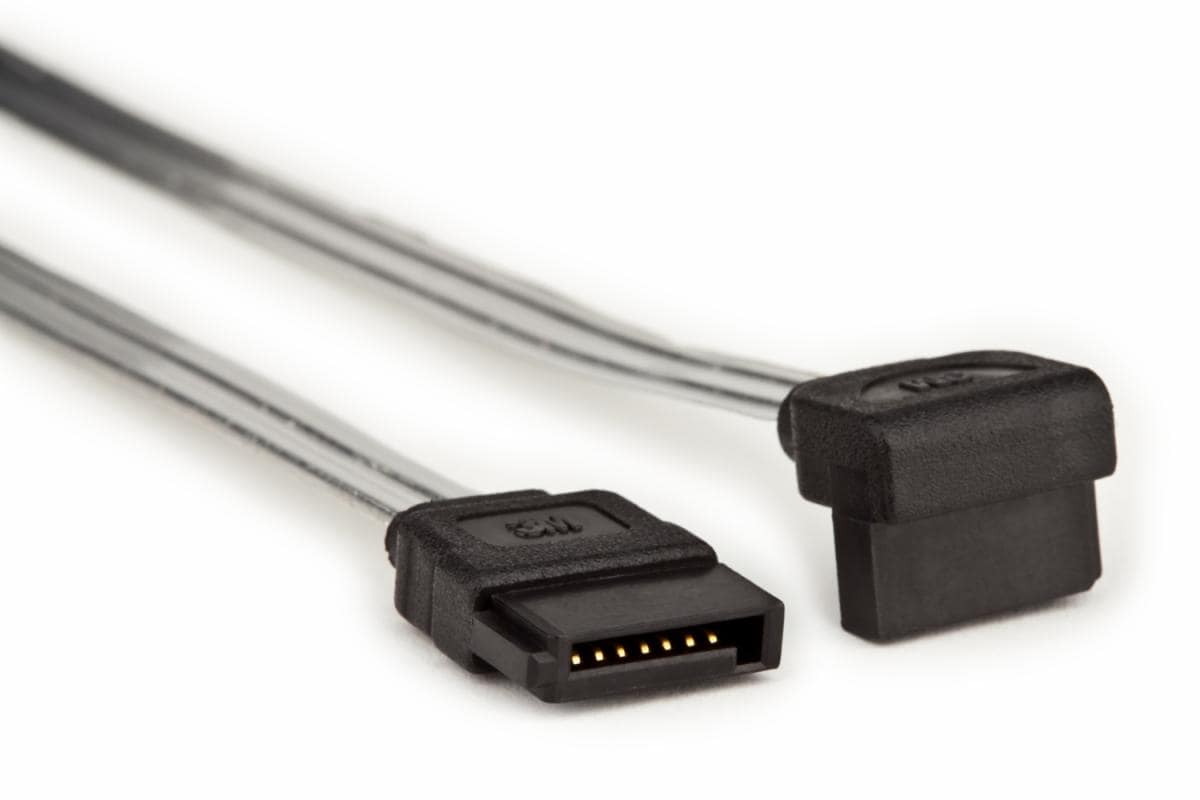

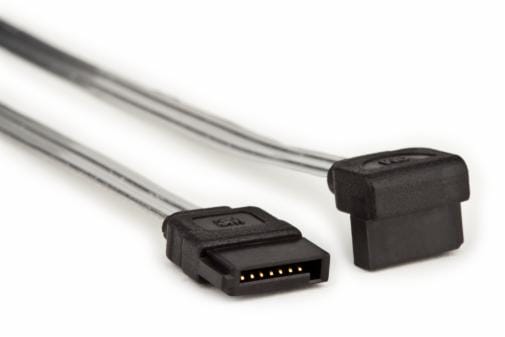

3M™ High-Routability Internal SATA Cable Assembly 5602 Series
- 3M ID B00035497
- UPC 00051115605444
Details
Highlights
- Supports SATA 1.0/2.0/3.0 Applications
- Exceeds SATA 3.0 requirement up to 1 meter
- Internal cable construction is thin and lower profile than other similar AWG twin axial cables
- Allows for dense routing and flexible routing options within a chassis
- Foldable - Allows for extremely tight bend radii
- Minimal performance impact of folding, and enables unique packaging configurations
- Saves time and cost during assembly
- See Regulatory Information Appendix link for chemical compliance information
- For more information refer to Customer Drawing 78-5100-4897-8
3M™ High Routability Internal SATA Cable Assembly, 5602 Series is a 26 AWG solid-wire assembly with differential pairs. Point-to-point signaling that meets SATA Specification 1.0a.
Typical properties
| Application | High-speed Data Transmission |
| Characteristic Impedance | 100 ohms |
| Factory ISO Certification | No ISO Certification information available |
| Form Factor | SATA 7p |
| Product Series | 5602 |
| Product Usage | Backplane/Midplane, Board-to-board, Mid-board Cables |
| Protocol | SAS, SATA |
| Tech Sheet Number | TS-4897 |
| Overall Length (Imperial) | 3.937 in, 15.748 in |
| Overall Length (Metric) | 100 mm, 400 mm |
Resources

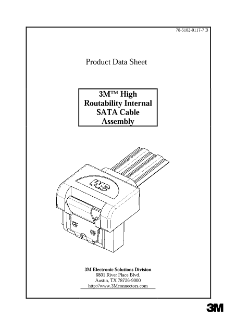

Data Sheets
(PDF, 111KB)
Data Sheets
(PDF, 775KB)
