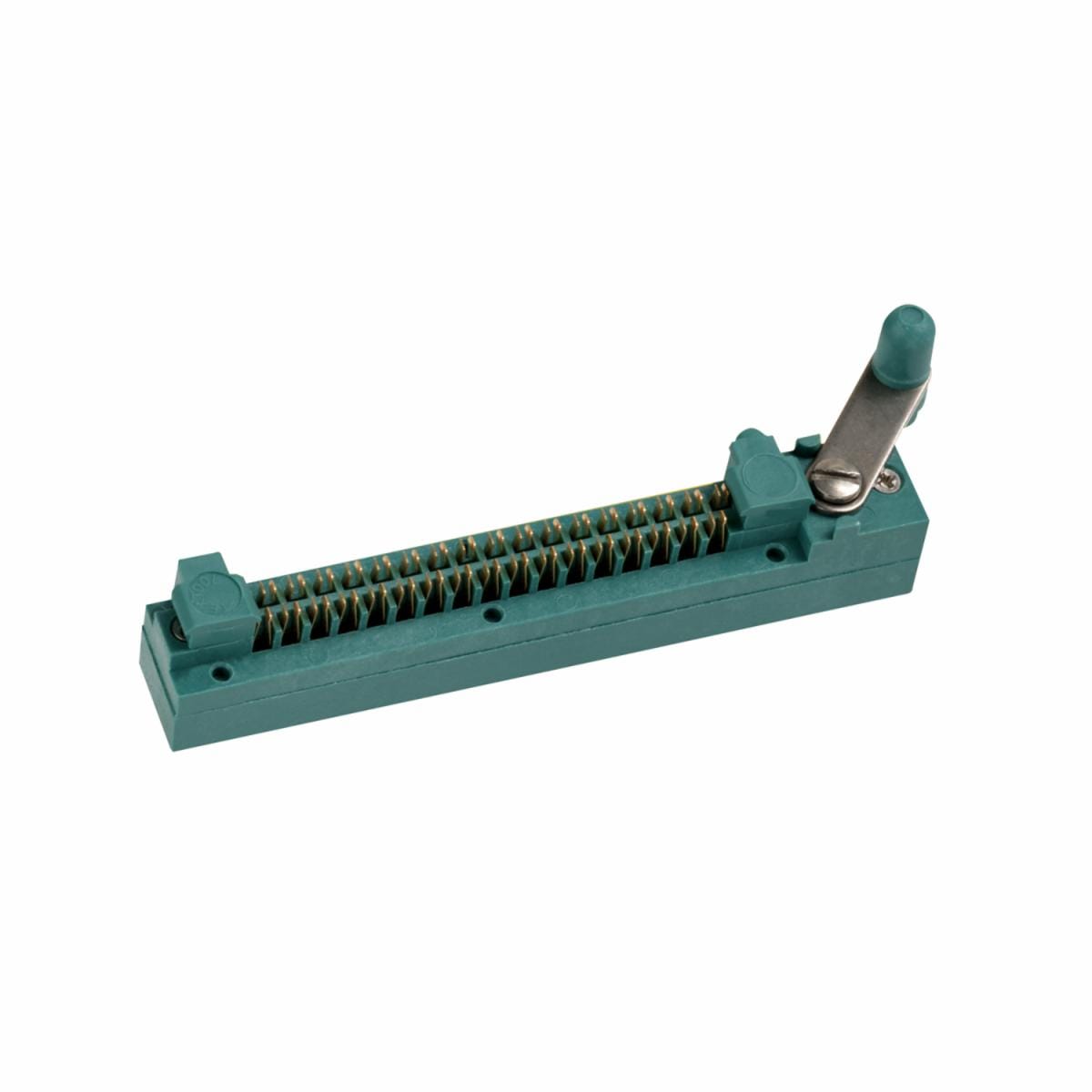

3M™ Textool™ Axial Lead ZIP Strip Sockets

For devices with .050" (1.27 mm) lead centers unformed or extending axially from package

Socket without top-plate cover enables horizontal insertion of leads

Frequently used in pairs to handle any nonstandard Flat Pack with leads on .050" (1.27 mm) centers

For devices with .050" (1.27 mm) lead centers unformed or extending axially from package
Socket without top-plate cover enables horizontal insertion of leads
Frequently used in pairs to handle any nonstandard Flat Pack with leads on .050" (1.27 mm) centers
Order left and right hand versions separately to obtain a complete pair
Lever actuated zero insertion force mechanism
Accepts pins up 0.14" (0.36 mm) to 0.25" (0.64 mm) square

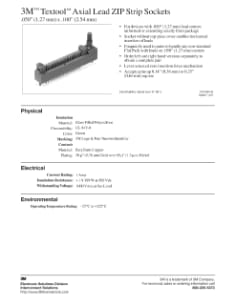

For more Information refer to Data Sheet TS0364 (TS-0364)

.050" (1.27 mm) x .100" (2.54 mm), w/o top-plate enables horizontal insertion of leads

Data Sheets

(PDF, 765KB)

Data Sheets

(PDF, 594KB)
