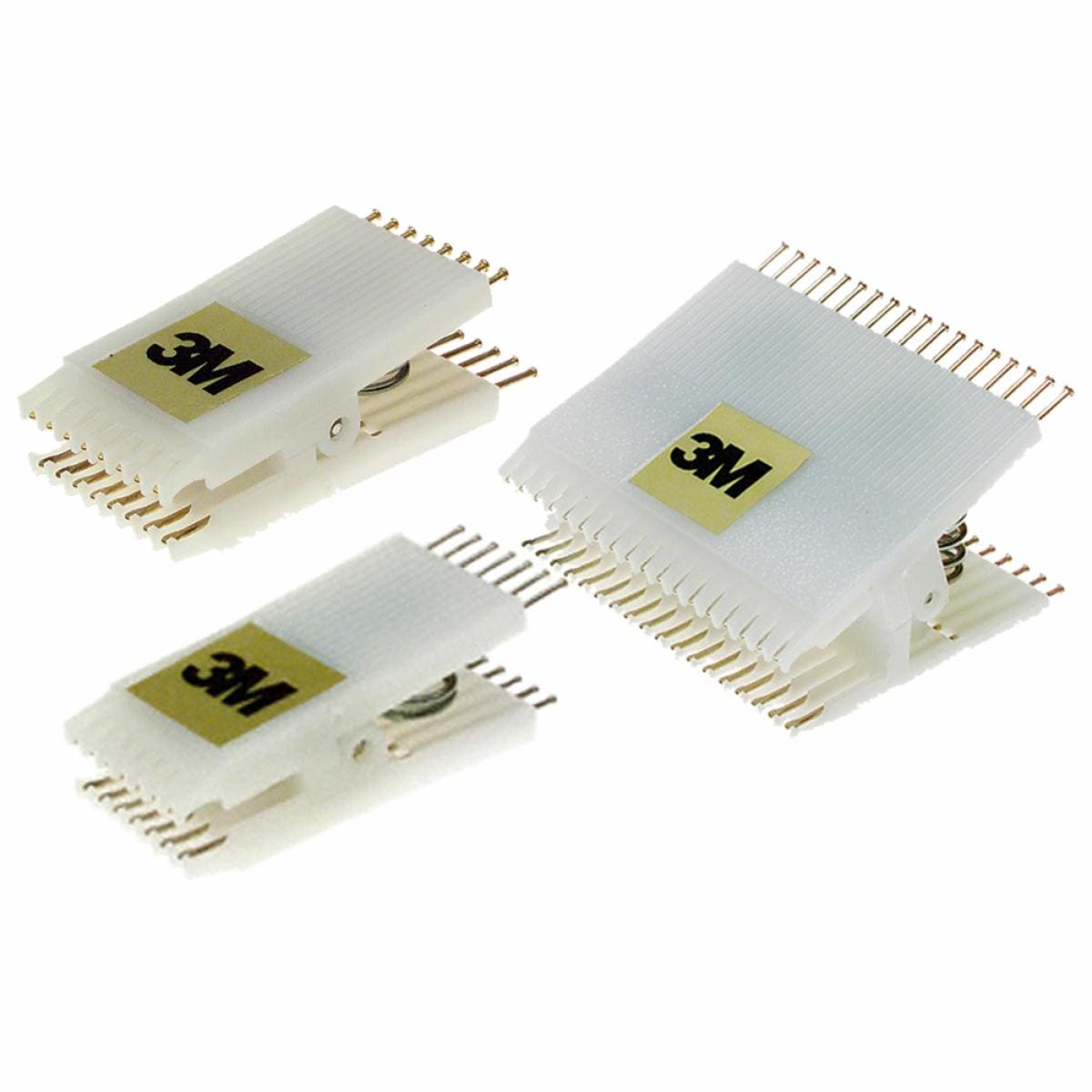

3M™ DIP Thru-Hole Nail Head Test Clips

3M ID B00035146
UPC 00054007822233

Available in both nail head and headless leads to accommodate a wide range of applications

Feature heavy duty helical compression spring to provide firm and positive contact pressure

Insulating contact comb to help prevent accidental shorts

Find a part

Details

Highlights

Available in both nail head and headless leads to accommodate a wide range of applications
Feature heavy duty helical compression spring to provide firm and positive contact pressure
Insulating contact comb to help prevent accidental shorts
Wiping action to ensure integrity during testing

3M™ DIP Thru-Hole Nail Head Test Clips are useful in prototype and production testing, quality control test, and field inspection. They make in-circuit IC testing safer by providing easy access to IC leads for probes without danger of shorting out valuable chips

Typical properties

Details

Factory ISO Certification	No ISO Certification information available
Tech Sheet Number	FB-0015
