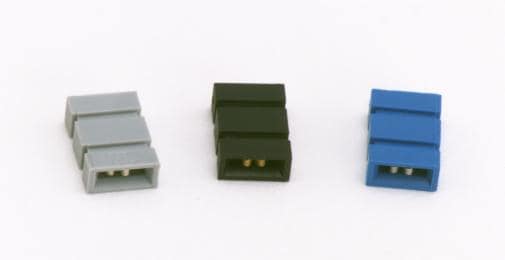

3M™ Pak 100 Shunt 929 Series

Unique C-Spring contact insures balanced forces

Compatible with .025" pins

10 and 30 micro inch gold plating options

Unique C-Spring contact insures balanced forces
Compatible with .025" pins
10 and 30 micro inch gold plating options
Stackable end-to-end and side-to-side
Color coded for easy identification
RoHS compliant
For more Information refer to Customer Drawing 78-9101-0200-5 (formerly known as TS-0200)

3M™ Pak 100 Shunt, 92995X Series, .100 in Midgie, Unique C-Spring contact

Contact Base Material	Copper Alloy
Contact Underplating	50 µ" [1.27 µm] Nickel
Contact Wiping Area Plating	10 µ" [0.25 µm] Gold, 30 µ" [0.76 µm] Gold
Flammability	UL 94V-0
Insulation Color	Gray, Blue
Insulation Flammability Rating	UL 94V-0
Insulation Material	Glass Filled Polyester (PBT)
Insulation Resistance	>1x10⁹ Ω @ 500 VDC
Interface Style	Rectangular Socket
Markings	3M Logo
Mounting Type	Boardmount
Non-Operating Temperature	-55 to 100 Degree Celsius
Number of Positions	2
Pitch (Imperial)	0.1 in
Pitch (Metric)	2.54 mm
Separable	Yes
Tech Sheet Number	TS-0200

Regulatory Data Sheet

Document Number: MSDS_4442281_US_EN_RDS

(PDF)

Regulatory Data Sheet

Document Number: MSDS_4027728_US_EN_RDS

(PDF)
