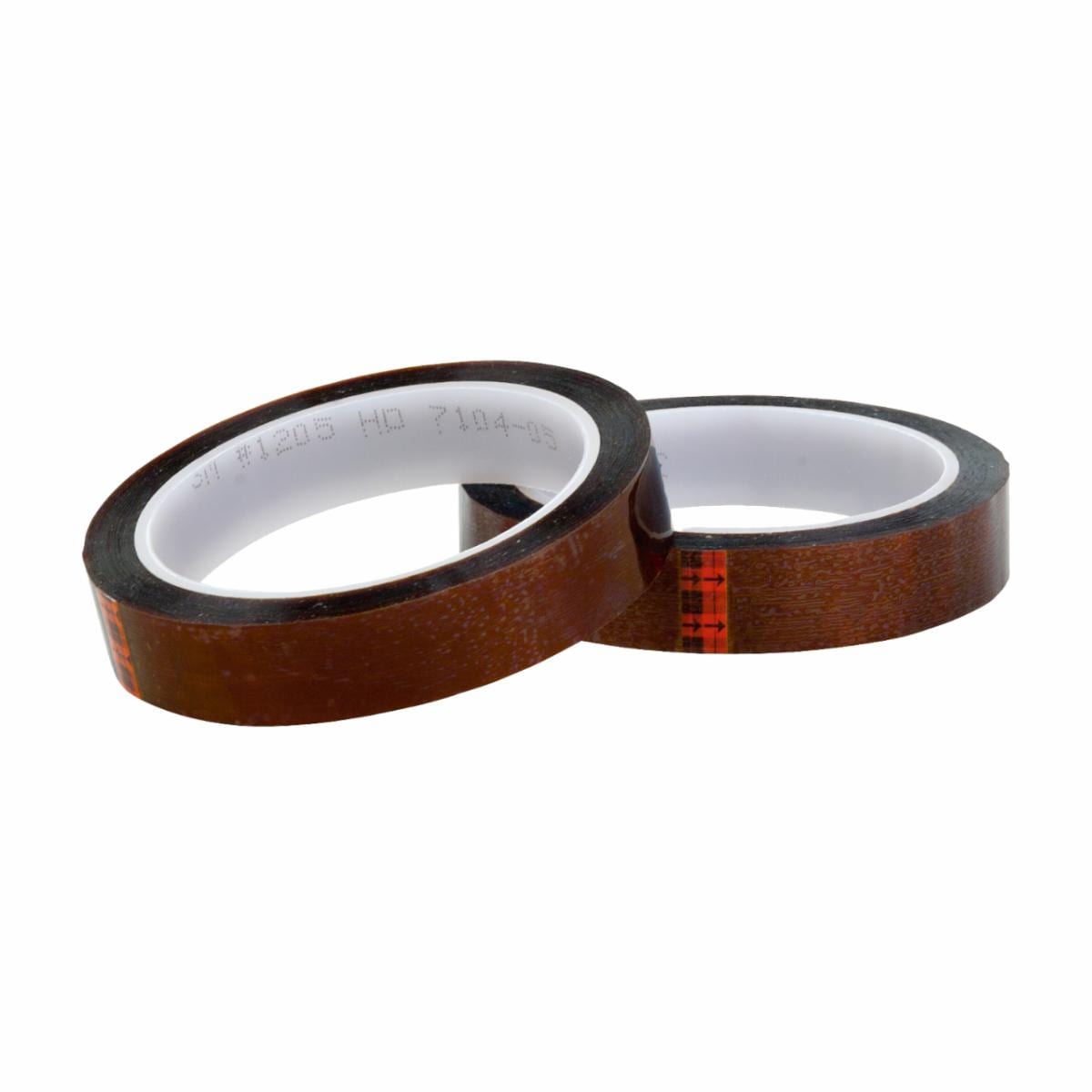

3M™ Polyimide Film Electrical Tape 1205
- | Select product options for IDs.
Details
Highlights
- Highly conformable with a pressure-sensitive, acrylic adhesive
- Flame-retardant and has polyimide backing
- Suitable for use as wave solder masking tape in a printed circuit board assembly
- Designed for anchoring leads and terminal boards
- Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
- UL Listed and RoHS Compliant
3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.
3M™ Electrical Tape 1205 has a pressure sensitive, acrylic adhesive that offers optimized adherence. This tape is designed for anchoring leads/terminal boards. It is ideal for use as wave solder masking tape in a printed circuit board assembly. This flame retardant tape is highly resistant to heat and solvents. UL Listed and RoHS 2011/65/EU Compliant.
Typical properties
| Adhesive Material | Acrylic |
| Adhesive Type | Acrylic |
| Application | Insulation |
| Backing (Carrier) Material | Polyimide Film |
| Backing (Carrier) Thickness (Metric) | 0.025 mm, 1 mm |
| Dielectric Strength | 7500 V |
| Electrolytic Corrosion Factor | 1 |
| Elongation at Break | 55 Percent |
| Insulation Resistance | 1 x 10^6 megohms |
| Maximum Operating Temperature (Celsius) | 155 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 311 ℉ |
| Minimum Operating Temperature (Celsius) | -40 ℃, 0 ℃ |
| Product Color | Amber |
| Shelf Life | 5 Year |
| Specifications Met | UL 510, RoHS 2011/65/EU, UL Recognized, UL Listed |
| Tensile Strength (Metric) | 53 N/cm |
| Total Tape Thickness without Liner (Imperial) | 3.2 mil |
| Total Tape Thickness without Liner (Metric) | 0.081 mm |
| Overall Length (Imperial) | 36 yd |
| Overall Length (Metric) | 33 m |
| Overall Width (Imperial) | 0.25 in, 0.375 in, 0.5 in, 1 in, 12.5 in |
| Overall Width (Metric) | 6.35 mm, 9.525 mm, 12.7 mm, 25.4 mm, 317.5 mm |
