3M™ DBI-SALA® Drop-Thru Anchor

Options available
| Select product options for IDs.

Available in 2, 6, 8.5, and 10 ft. lengths

Installs into 1-1/2 in. to 1-3/4 in. dia. hole (38.1 to 44.5 mm) In Concrete, minimum thickness of 4 in. (101.6 mm)

Use on overhead concrete or steel applications

Weight (Imperial)

Material

Details

Highlights

Available in 2, 6, 8.5, and 10 ft. lengths
Installs into 1-1/2 in. to 1-3/4 in. dia. hole (38.1 to 44.5 mm) In Concrete, minimum thickness of 4 in. (101.6 mm)
Use on overhead concrete or steel applications
Fall arrest- and restraint-rated for one worker for jobsite versatility
Features high-strength stainless steel construction
Partially shielded cable for added protection
Compatible with various fall arrest systems
Compact, lightweight design
Meets the requirements for OSHA 1910.140 and OSHA 1926.502
Recommended for use in multiple industries including general industrial, mining, and oil and gas

The 3M™ DBI-SALA® Drop-Thru Anchors are the overhead anchor devices professionals trust for enhanced safety, specialized functionality, and hard-wearing quality when working on steel decking, grating, and concrete floors. Rated for steel and concrete applications, this drop-thru anchor provides a secure anchor point to attach a fall arrest system so workers can go after each task with more confidence and peace of mind. Multiple cable lengths are available for added versatility on the job.

Hassle-free safety and comfort When it comes to your crew’s personal protective equipment, the best designs are the easiest to use. A swiveling D-ring tie-off point rotates 360 degrees to help prevent tangling as you work. Durable in harsh conditions Protecting your workers and elevating their comfort and safety is the number one priority for 3M fall protection. That’s why we’ve built our fall protection systems and safety equipment from extremely durable hardware and materials that resist corrosion and stand up in harsh environments. All-in-one versatility Provide your crew with the advanced quality and convenience required for a job well done. Our 3M™ DBI-SALA® Drop-Thru Anchors can be used as an attachment component for a rescue, restraint, personnel riding, work positioning, and personal fall arrest system when used properly with a fall arrest harness and connecting subsystem.

Typical properties

Details

Anchor Install Type	Reusable
Attachment Type	Drop-thru
Case Quantity	1
Connected Safety ID Equipped	No
D-ring Material	Zinc Plated Steel
Install Type	Reusable
Material	Zinc Plated Steel, Steel
Product Color	Silver
Product Type	Drop-thru Anchor
Recommended Industry	Oil & Gas, General Industrial, Mining, Construction, Transportation, Utilities, Wind Energy
Specifications Met	OSHA 1910.140, OSHA 1926.502
Weight (Imperial)	1.2 lb, 1.94 lb, 2.44 lb, 2.69 lb
Weight Capacity	310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Weight Capacity (Imperial)	420 lb
Weight Capacity (Metric)	190 kg

Dimensions and Classifications

Overall Length (Imperial)	2 ft, 6 ft, 10 ft

Resources

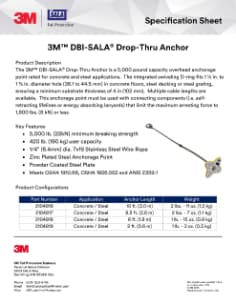

3M™ DBI-SALA® Drop-Thru Anchor Specification Sheet

Data Sheets

(PDF, 134KB)

Anchorage Strength Requirements Technical Bulletin

Data Sheets

(PDF, 577KB)

Compatibility of Fall Protection Equipment Technical Bulletin

Data Sheets

(PDF, 580KB)

Product Life Technical Bulletin MISC002

Data Sheets

(PDF, 75KB)
